Quick Details
-
Brick size:
-
400*100*200 mm, 400*150*200 mm, 400*200*200 mm, can be customized
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
YZ
-
Voltage:
-
220V/110v
-
Dimension(L*W*H):
-
920*800*1258mm
-
Weight (KG):
-
220 kg
-
Name:
-
Manual Concrete Hollow Blocks Making Machine
-
Color:
-
blue, orange or customized
-
Weight:
-
165kg
-
work pressure:
-
10.5mpa
-
Forming Cycle:
-
45s
-
Vibration frequency:
-
4700 times/min
-
Raw material:
-
Cement, sand, soil
-
Keywords:
-
Small scale concrete block making machine for sale
-
KW:
-
block making machine
-
Product Name::
-
Mobile Building Paver Brick Maker Electric Red Brick Making Machine
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement, sand, soil
-
Production Capacity (Pieces/8 hours):
-
1000~1200pcs/8hr
-
Brick size:
-
400*100*200 mm, 400*150*200 mm, 400*200*200 mm, can be customized
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
YZ
-
Voltage:
-
220V/110v
-
Dimension(L*W*H):
-
920*800*1258mm
-
Weight (KG):
-
220 kg
-
Name:
-
Manual Concrete Hollow Blocks Making Machine
-
Color:
-
blue, orange or customized
-
Weight:
-
165kg
-
work pressure:
-
10.5mpa
-
Forming Cycle:
-
45s
-
Vibration frequency:
-
4700 times/min
-
Raw material:
-
Cement, sand, soil
-
Keywords:
-
Small scale concrete block making machine for sale
-
KW:
-
block making machine
-
Product Name::
-
Mobile Building Paver Brick Maker Electric Red Brick Making Machine
Brief introduction of m anual block making machine:
The machine is a miniature block machine of high quality, its main characteristic is saving electricity and saving work force, and can produce hollow blocks on cement floor without any pallet, especially suitable for small factories/
We have three types machines for you choose:
1. Electric motor Inclined push type 2. Electric motor Straight push type 3. Diesel engine Straight push type
|
Model
|
YZZJ-M1
|
|
The forming number
|
2~4 pcs/time
|
|
Work pressure
|
10.5Mpa
|
|
Brick specification (mm)
|
390*100*190mm, 4pcs/time, 1800pcs/time
390*120*190mm, 3pcs/time, 1300pcs/shift 390*150*190mm, 3pcs/time, 1300pcs/shift 240x190*190mm, 2pcs/time, 920pcs/shift 390x190x190mm, 2pcs/time, 900pcs/shift 240x115x53mm, 12pcs/time, 5700pcs/shift |
|
Forming cycles (S )
|
50-60 S/time
|
|
Power
|
1.1-1.5kw motor / 8hp diesel engine
|
|
Capacity per 8 hours
|
1000~1200pcs/8hr
|
|
Dimension
|
920*800*1258mm
|
|
Net weight/ gross weight
|
165kg/220kg
|

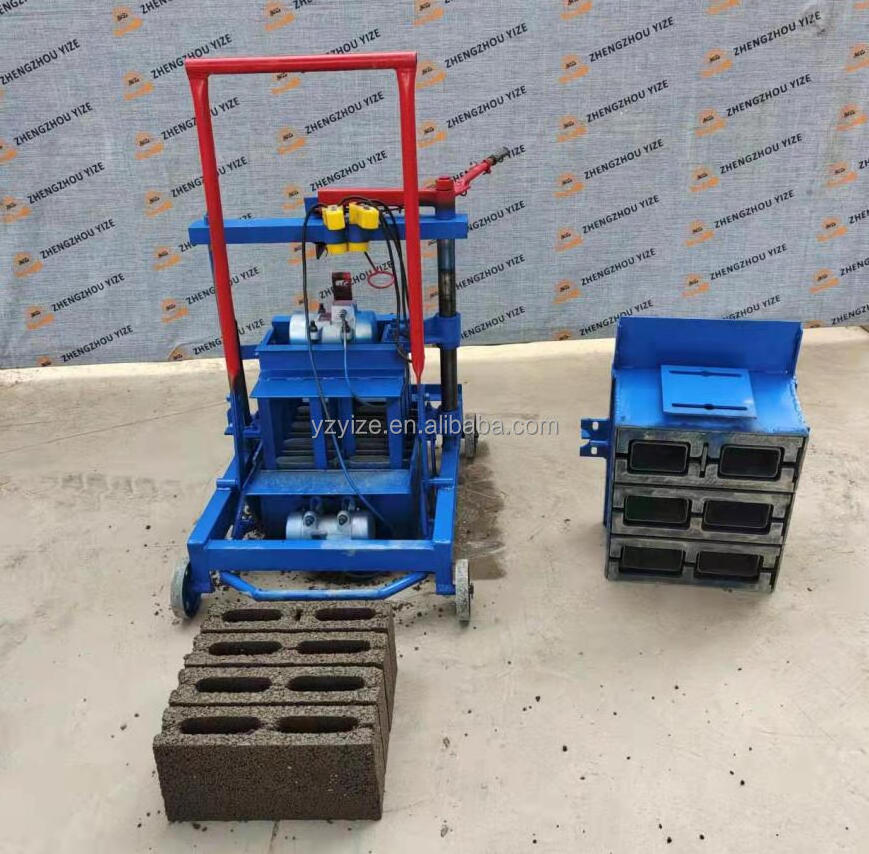

3.Detail picture for
Diesel engine Straight push type
concrete hollow brick machine
Our machine can produce various size of hollow bricks and solid bricks by easily changing moulds.
The different size brick made by our machine for your reference:
Machine will be packed in standard export wooden cases:
