Quick Details
-
Productivity:
-
30M³/H
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CABR/M
-
Weight:
-
3000 kg
-
Dimension(L*W*H):
-
4200*1950*1800 mm
-
Max Theoretical Concrete Output:
-
30 m3/h
-
Max Concrete Pumping Pressure:
-
13 Mpa
-
Distribute Valve Structure:
-
S Pipe Distribute Valve
-
Maximum Conveying Distance:
-
400m(Horizontal)/80m(Vertical)
-
Max. Aggregate Size:
-
pebble≤30 mm / gravel≤25 mm
-
Speed:
-
1480 r/min
-
Conveying Cylinder Diameter:
-
110/1000 mm
-
Concrete Cylinder Diameter:
-
180/1000 mm
-
Hopper Capacity:
-
0.35 m3
-
Filling Height:
-
1200 mm
Quick Details
-
Power Type:
-
Electric Motor
-
Max. vertical conveying distance:
-
80M
-
Max. horizontal conveying distance:
-
400M
-
Productivity:
-
30M³/H
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CABR/M
-
Weight:
-
3000 kg
-
Dimension(L*W*H):
-
4200*1950*1800 mm
-
Max Theoretical Concrete Output:
-
30 m3/h
-
Max Concrete Pumping Pressure:
-
13 Mpa
-
Distribute Valve Structure:
-
S Pipe Distribute Valve
-
Maximum Conveying Distance:
-
400m(Horizontal)/80m(Vertical)
-
Max. Aggregate Size:
-
pebble≤30 mm / gravel≤25 mm
-
Speed:
-
1480 r/min
-
Conveying Cylinder Diameter:
-
110/1000 mm
-
Concrete Cylinder Diameter:
-
180/1000 mm
-
Hopper Capacity:
-
0.35 m3
-
Filling Height:
-
1200 mm

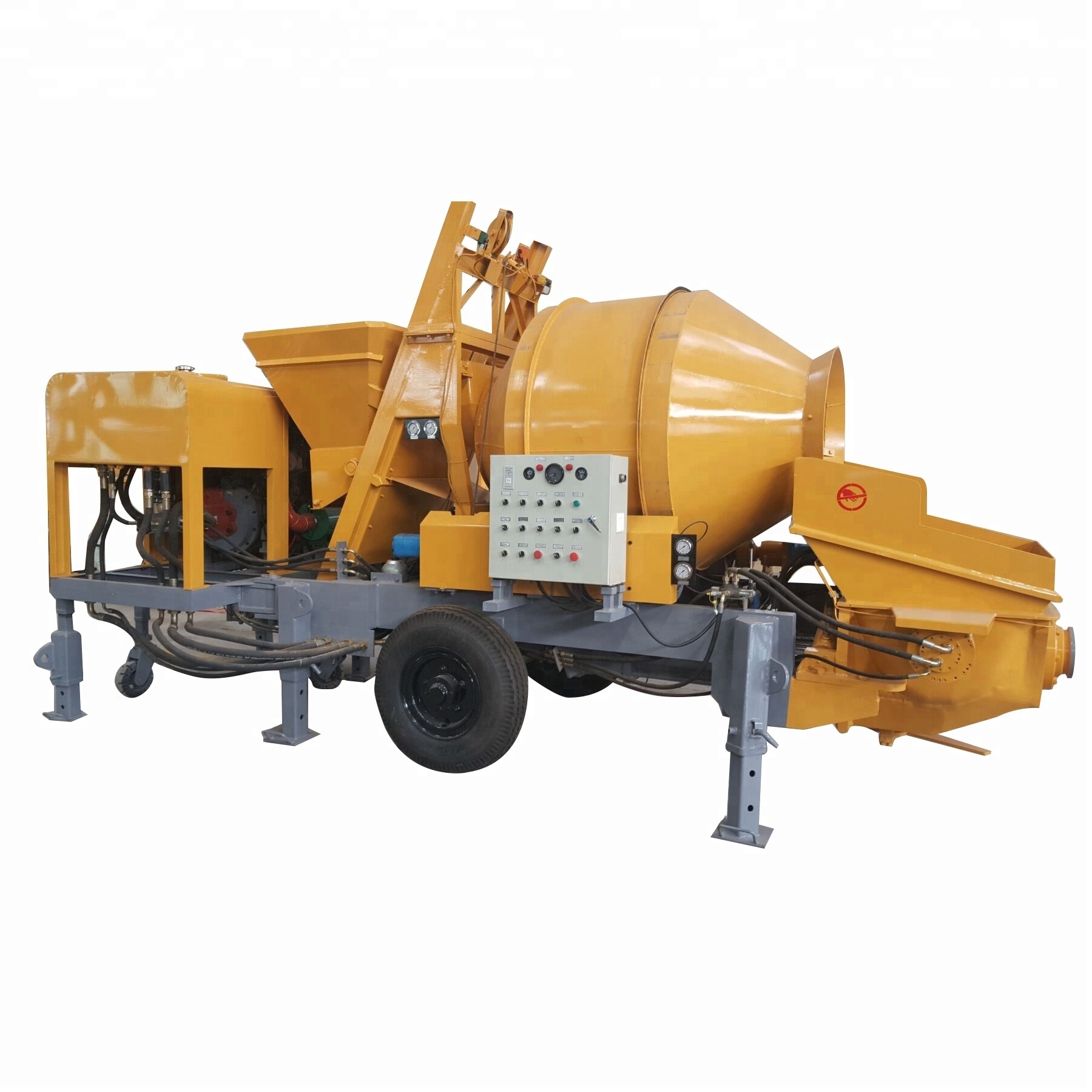

HBT30M Electric Motor Concrete Mixer Pump
HBT30R/M series concrete mixer pump is combines the concrete mixer and concrete pump together, achieving integration mixer and pump. It is most suitable for the houses and commercial buildings under 10 floors, small bridges, water conservancy, power and communication for which the sites are scattered and on-site mixing is required.
Our product exported to Kenya, Chile, Peru, Brazil, Mexico, Russia, Australia, South Africa, Egypt, UAE, Vietnam, Malaysia, Singapore, Thailand, Tunis, UAE, Bangladesh, Saudi Arabia, Philippines, Indonesia, India, Chad, Cameroon, Algeria, Gabon, Congo, Sudan, Cambodia, Sri Lanka and so on.
1. Working Application of
HBT30M Electric Motor Concrete Mixer Pump
:
2. Technical Parameters of HBT30M Electric Motor Concrete Mixer Pump :
3. Main Components' Brand and Manufacturer of HBT30M Electric Motor Concrete Mixer Pump :
4. Technical Advantages and Characteristics of HBT30M Electric Motor Concrete Mixer Pump :
1) Perfect combining concrete mixing machine with conveying pump in one machine.
2 ) Concrete pump is engineered with latest differential pressure induction control technology.
3 ) Hydraulic double-cylinder piston system, more stable concrete flowing and pumping.
4 ) Simplified working procedure, easy operation and maintenance, improved working efficiency
5 ) Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
6 ) Advanced hydraulic system.
7 ) Adaptive gear adjustment technology, smart matching of operating conditions.
8 ) Automatic and intensive lubrication system ensures effective lubrication during the operation.
9 ) Improved Hopper, high effectivity.
10 ) Powerful mixing ability.
11 ) High reliability and wear resistance components, imported brand main hydraulic components.
12 ) SYMC intelligent controller, high-speed and reliable operation.
13 ) More reliable redundant control design.
14 ) Compact structure, flexible to operate.
15 ) Longer serve life.
16 ) Competitive factory price.
5. 120m φ125mm Concrete Pumping Pipe of HBT30M Electric Motor Concrete Mixer Pump: Has pipe marker of each pipeline.
6. Packing Details of HBT30M Electric Motor Concrete Mixer Pump:
HBT30M Electric Motor Concrete Mixer Pump in null package, parts and tools in iron box and pipe clamp packaged in paper carton. 1 Set * HBT30RM in one 20’GP, 2 Sets HBT30RM in one 40’HQ
7. Our Services:
1) Quality Control:
a. Every components and parts are examined and detected before assembling.
b. Every parts are assembled exactly according to the machine structure directions.
c. The machines are tested and checked carefully when they come off the production line.
2) Research and Development:
This machine is our well designed industry products, which evolves our team’s hard research, customers’ advise and competitor’s advantage. We have and will never stop in doing research on latest technology.
8. Sales Services:
Pre-sale Service
1. Supply item design, process design.
2. Help you to choose the fit machine / a proper machine.
3. Making the machine according to/ as your requirement.
Manufacture the machine according to your and accessories.
Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the
process. / Offer you help to make the operating instruction.
3. Any other help you need.
After-sale Service
1. Guarantee for a year. / One year warranty.
2. Quality problem, we will send you the accessories./ Free accessories due to quality problem.
3. Free repair whole using life(without the freight and accessories
charge).
9. WHY CHOOSE US CABR/M
CABR CONSTRUCTION MACHINERY TECHNOLOGY CO LTD
1 Good Reputation
We are state owned company with more than 60 years’ history. Our mother company - China Academy of Building Research(CABR), Founded in 1953, is the largest and most diverse research institution in building industry in China.
2 Technical Advantage
Relying on the Academy, we have many experts in the industry of construction machinery, who are national standards makers or industries leaders. So we know the latest construction machinery technology in the world.
3 Tailored design on your request.
Because of our strong technical capability, we can provide tailored design & production to help our clients solve different problems during construction.
4 Good Quality Products
As a state owned company, we always consider that good quality products are lifeline of an enterprise. Our company brand value is Morality & Quality & Elegance Oriented. Now most of products have achieved CE certificates.
5 Rich Industry Resources
Being the administration department of some associations in construction machinery industry, we have very good relationship with many different companies of other products. We know much information about this industry, we have integrated capability related to building hoist, tower crane, suspended platform, BMU, aerial working platform, concrete and mortar machinery, steel fabricating machinery as well as elevator and escalator.
6 Good After-sales Services
As a government company, we always know our responsibility and importance of reputation. So we treat all our clients as GOD, we will take quick response to all our clients’ complaints, do our best troubleshooting and solving the problems in the shortest time.
