Quick Details
-
Luminous Efficacy(lm/w):
-
80
-
Product Weight（kg）:
-
0.15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Product Name:
-
Manual Switch CE RoHS led lights 30A 12v 24v dimmer
-
Dimension:
-
85*62*35mm(L*W*H)
-
MAX Load Current:
-
30A
-
Output power:
-
12V<360W/24V<720W
-
Working Temperature:
-
-20-70°C
-
Certificates:
-
CE RoHS
-
Warranty:
-
24 months
-
Keywords:
-
LED dimmer lights
-
Voltage:
-
DC12-24V
Quick Details
-
Warranty(Year):
-
1-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
360W
-
Luminous Efficacy(lm/w):
-
80
-
Product Weight（kg）:
-
0.15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Product Name:
-
Manual Switch CE RoHS led lights 30A 12v 24v dimmer
-
Dimension:
-
85*62*35mm(L*W*H)
-
MAX Load Current:
-
30A
-
Output power:
-
12V<360W/24V<720W
-
Working Temperature:
-
-20-70°C
-
Certificates:
-
CE RoHS
-
Warranty:
-
24 months
-
Keywords:
-
LED dimmer lights
-
Voltage:
-
DC12-24V
Product Description

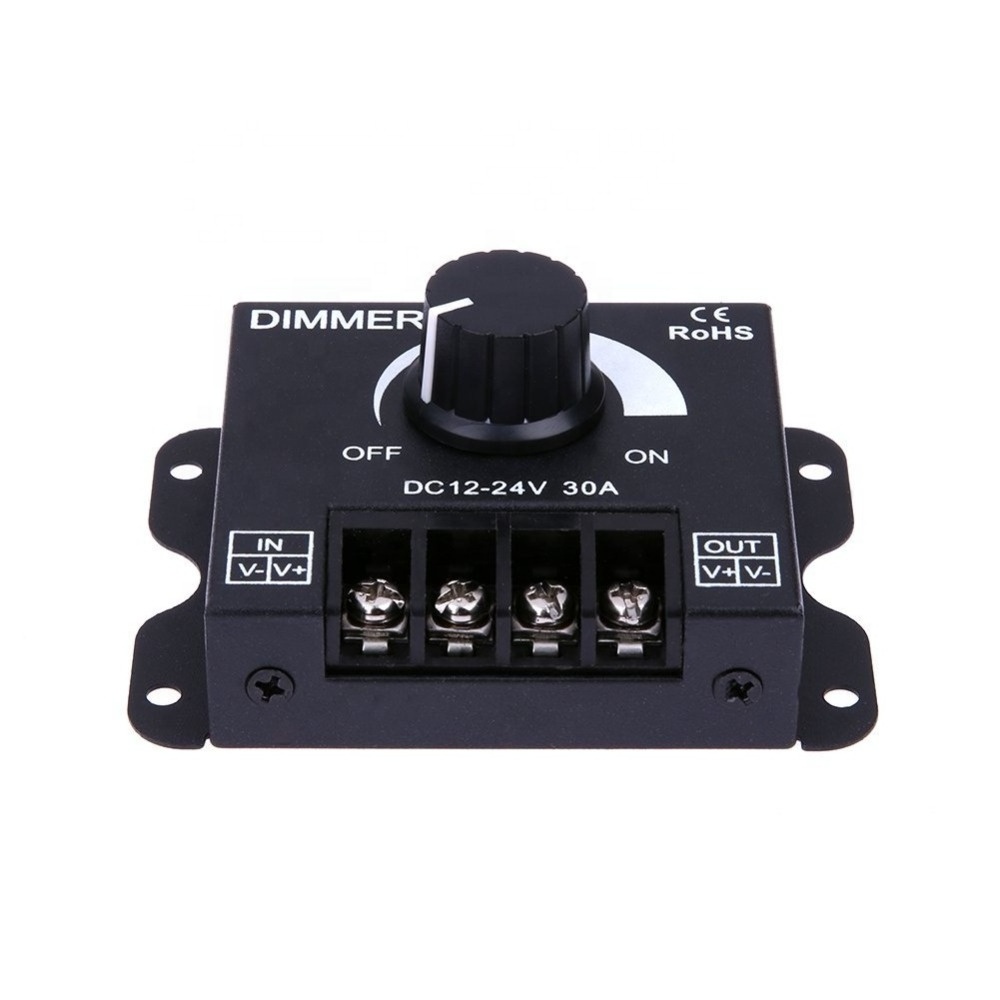

Low voltage mini LED dimmer can dim 12 or 24VDC LED Flex strips or LED bars from 0%-100% using Pulse Width Modulation (PWM).
It has an easy to use control knob for variable brightness levels.
Screw terminal connectors allow for quick and easy connection for power input and output.
Maximum continuous load is 30 Amps.
Note: For use only with Low voltage Class 2 Regulated LED Driver Models.
Features
Max Voltage: DC12V to 24V
Dimension: L86 X W60 X H35 mm (3.46″ L x 2.36″ W x 1.37″ H)
Output current: Max 30A
Output: 1 channel PWM Dimmer
Preset dimmer
Environment: Indoor use only (dry location) / -10°C~ 40°C (14°F ~ 104°F)
