Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x2500mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RDcam
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
longtai
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
laser power:
-
80w/100w/130w/150w(optional)
-
voltage:
-
110/220v+/-10%,50/60hz
-
working size:
-
1300*2500mm
-
working table:
-
aluminum knife and honey comb
-
locating resolution:
-
less than0.01mm
-
resolution:
-
0.0125mm
-
cutting thickness:
-
0-30mm
-
controller:
-
DSP
-
cooling way:
-
water cooling
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
stainless steel: 0-1.2mm
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x2500mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RDcam
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
longtai
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
laser power:
-
80w/100w/130w/150w(optional)
-
voltage:
-
110/220v+/-10%,50/60hz
-
working size:
-
1300*2500mm
-
working table:
-
aluminum knife and honey comb
-
locating resolution:
-
less than0.01mm
-
resolution:
-
0.0125mm
-
cutting thickness:
-
0-30mm
-
controller:
-
DSP
-
cooling way:
-
water cooling

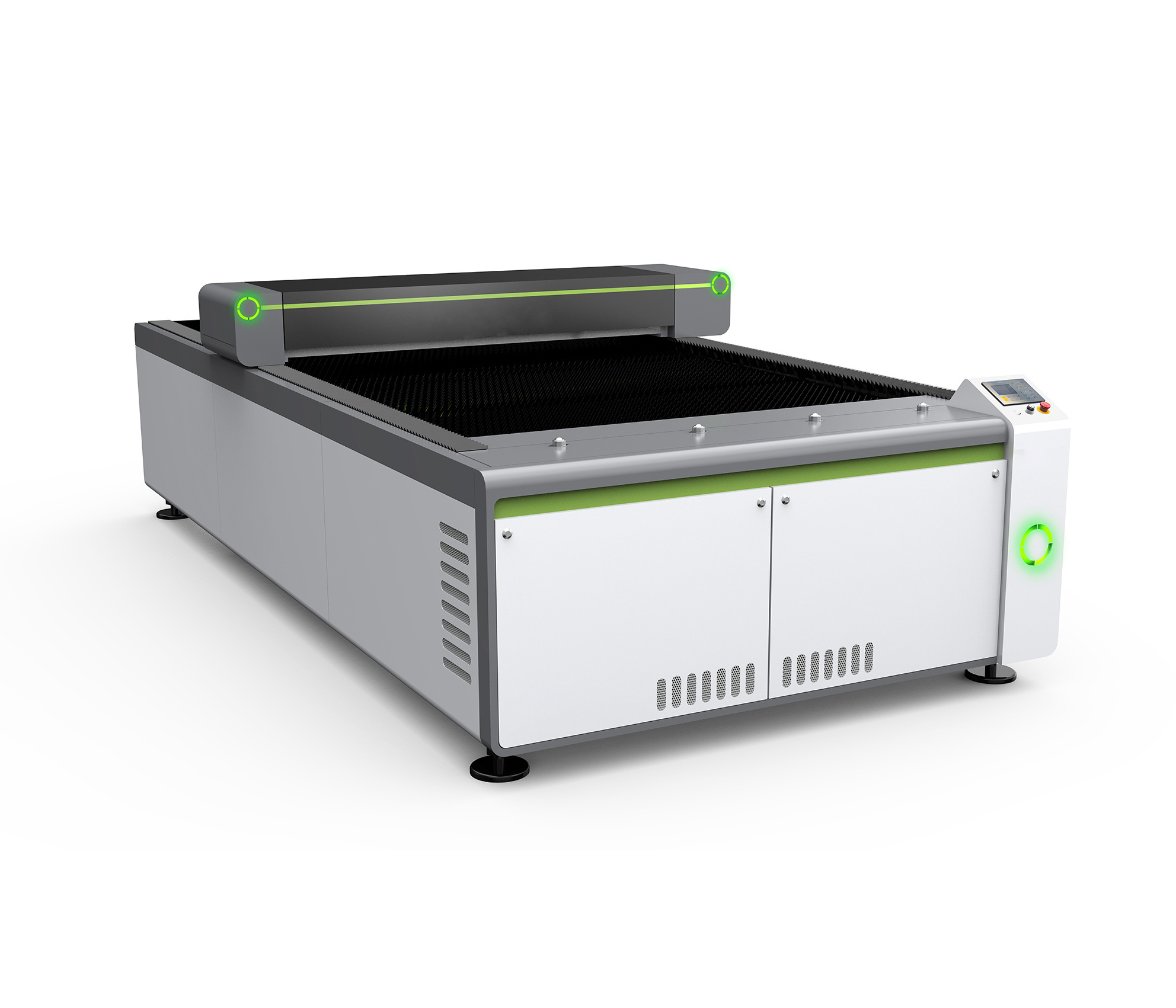

LongTai Lt-1325 1Mm Stainless Steel Laser Cutting Machine
1. EFR/ RECI laser tube--optional
2. working area: 2500*1300mm
3. Aluminum knife working table
4. RDCAM Control system
5.Red-dot pointer
6. Taiwan PMI Guide rail
7. water sensor
8. stepper motor
9. water chiller CW3000/CW5000/CW5200/CW6000(optional)
1. Applicable materials :
Metal material such as stainless steel, carbon steel. Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
2. Applicable industry:
Mainly used for advertising industry(stainless metal and carbon steel), sheet metal industry(carbon steel), packaging industry(die board) and billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
3. Parameters:
|
Name: |
LT-1325 |
|
Processing area |
1300mm*2500mm |
|
Laser power |
100W/150W/180W |
|
Laser type: |
Co2 glass laser tube |
|
Software: |
RDCAM |
|
Engraving speed |
1-500mm/s |
|
Cutting speed |
1-400mm/s |
|
Cutting thickness |
carbon steel: 0-1.2mm,stainless steel:0-1.3mm, nonmetal:1-30mm
|
|
Resolution ratio |
≤0.0125mm |
|
Position system: |
Red dot |
|
Interface: |
USB |
|
Minimum shaping character |
letter 0.8mm, Chinese 0.5mm |
|
Support graphic format |
DST, PLT, BMP, DXF |
|
Working voltage: |
AC220V/50HZ or 110V/60HZ or depend on customer |
|
Operating temperature |
0-45C |
|
Operating humidity: |
5-95% |
|
Packing: |
wooden box |
Features:
1.Mixed-cut: metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision: Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using
3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area
4.High precision and Good stability : With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing, stable dynamic performance,also can work for long hours.
5. The cutting section with good quality: Mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,water-cooling, auxiliary gas and laser light.
7. Simple structure, easy operation , stable laser device and low maintenance cost.
