Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
StrongFirst
-
NOMINAL FREQUENCY:
-
1000+100KHz
-
BANDWIDTH(-3dB):
-
200KHz
-
Capacitance:
-
1200±20%pF
-
IMPEDANCE(1MHz)Zr:
-
350±30%Ω
-
OPERATING TEMPERATURE:
-
+4~+100°C
-
STORAGE TEMPERATURE:
-
-20~+85°C
Quick Details
-
Mounting Type:
-
in pipe
-
Description:
-

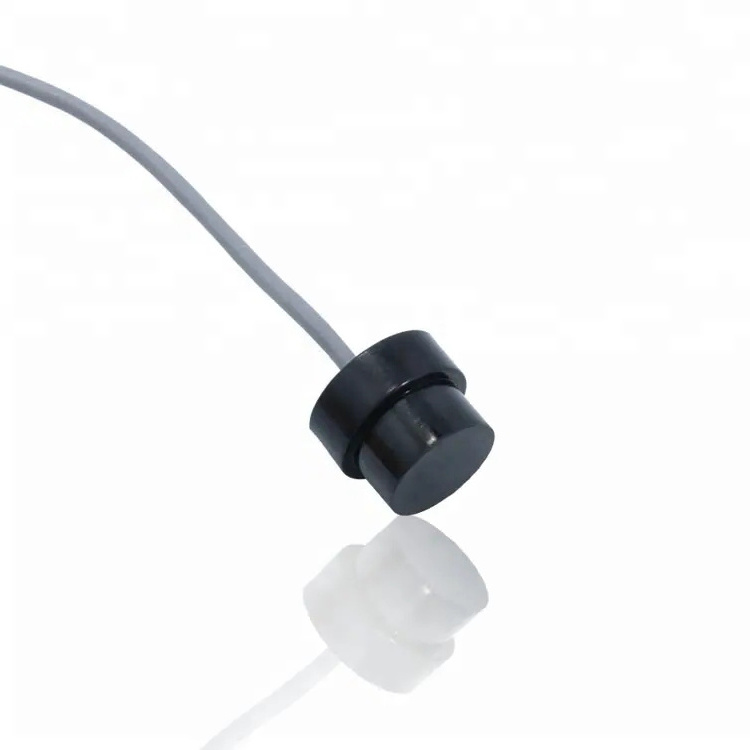

Ultrasonic Sensor
-
Model Number:
-
STPSC1.0M
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
StrongFirst
-
NOMINAL FREQUENCY:
-
1000+100KHz
-
BANDWIDTH(-3dB):
-
200KHz
-
Capacitance:
-
1200±20%pF
-
IMPEDANCE(1MHz)Zr:
-
350±30%Ω
-
OPERATING TEMPERATURE:
-
+4~+100°C
-
STORAGE TEMPERATURE:
-
-20~+85°C
|
Specifications
|
|
|
||
|
Items
|
Unit
|
Content
|
||
|
Nominal Frequency(Fn)
|
kHz
|
1000±100
|
||
|
Resonance Impedance(R0)
|
Ω
|
350±30%
|
||
|
Static Capacitance(CP)
|
pF
|
1200±20%
|
||
Nominal Frequency:1000士100kHz
MAXInstantaneous Drive Voltage:220V
Paired Sensitivity: receiving signal 900mV minimum when measured peak to peak when driven with10 cycle burst2.0V(Vp-p)at 1MHz across a110mm range.Bandwidth(-3dB):200kHz
Capacitance:1200+20%pF
Impedance(1MHz)Zr: 350+30%Q
Insulation Resistance ( 250V):1 GQ min.
OperationalEnvironment:
Operating Temperature:+4-+100C
Storage Temperature:-20-+85CApplicable to homogeneous liquid media measurement,including water speed detection, obiectsdistance measurement and obstacle detection etc.
>>
