Quick Details
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jiyun
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5500*1200*1400
-
Weight:
-
1300 kg
-
Product name:
-
Roof Sheet Forming Machine
-
Application:
-
Roof Sheet Production
-
Raw material:
-
PPGI PPGL GI GL
-
Control system:
-
Servo Motor Control System
-
Main frame:
-
350mm/400mm H-Beam
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
45# Steel Outer Diameter: 70mm
-
Decoiler:
-
5T Manual Decoiler
-
Forming Speed:
-
15~25 M/min
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jiyun
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5500*1200*1400
-
Weight:
-
1300 kg
-
Product name:
-
Roof Sheet Forming Machine
-
Application:
-
Roof Sheet Production
-
Raw material:
-
PPGI PPGL GI GL
-
Control system:
-
Servo Motor Control System
-
Main frame:
-
350mm/400mm H-Beam
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
45# Steel Outer Diameter: 70mm
-
Decoiler:
-
5T Manual Decoiler
-
Forming Speed:
-
15~25 M/min
Products Description

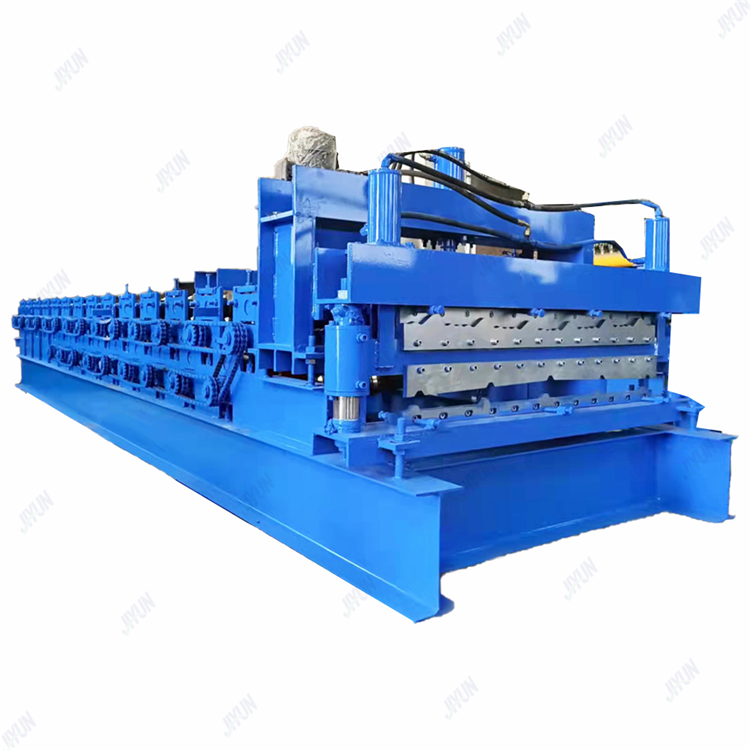

Roof sheet making machine, also called roll forming machine, Mainly using for PPGI GI PPGL GL Materials in the building materials, which can brings you more profits in future. Cause its special outlook, which is popularity in many fields. Below one is the most popularity one roll forming machine, which feed in is for 1200mm, which can satisfied large width demands,and more effect area. And its design is mainly for Trapezoidal, which is more attracts more person interested.
Product Parameter
|
Item
|
Name
|
Quantity
|
|
1
|
Uncoiling Device
|
1 set
|
|
2
|
Forming Main Machine
|
1 set
|
|
3
|
Hydraulic Cutting System
|
1 set
|
|
4
|
Material Receiving Table
|
1 set
|
|
5
|
PLC Control System
|
1 set
|
|
6
|
Supporting Accessories
|
1 set
|
|
Item
|
Parts
|
Specification & Description
|
|
1.Raw Material
|
Type
|
GI / GL /PPGI / PPGL /Customization steel coil
|
|
|
Thickness(mm)
|
0.3-0.8
|
|
2.Un-coiler Device
|
Type
|
Inner contraction range
|
|
|
Max Loading(Tons)
|
5T/8T/10T（optional）
|
|
|
Way of working
|
Manual / Electric / Hydraulic tensioning crank.
|
|
|
Panel Width（mm）
|
940-1220mm(customizable)
|
|
|
Coil Inner diameter
|
φ480-500mm
|
|
|
Inner adjust range
|
φ450-550mm
|
|
3.Forming Main Machine
|
Main frame
|
Material:300H/350H steel
Processing:Welding frame
|
|
|
Middle plate
|
Material : 45#steel
Thickness: 14mm Processing :laser cutting |
|
|
Shaft
|
Material : 45# steel with chrome 0.05mm
Diameter : 70mm Processing : Precision machining, heat treatment, precision grinding |
|
|
Rollers
|
Material: 45# steel Chrome Plated
Processing : Quenching, precision turning, polishing treatment |
|
|
Roller Station
|
10-16 stations or Customization
|
|
|
Transmission
|
Specifications:1 inch chain wheel with gear transmission
Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil |
|
|
Main Motor
|
Power:5.5KW
Brand：Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 |
|
4.Cutting System
|
Type
|
Automatic Hydraulic Cutting
|
|
|
Blade material
|
Cr12MOV heat treatment process
|
|
|
Pump
|
hydraulic pressure:10-12mpa
Hydraulic oil: 46# |
|
|
Pump motor for cutter
|
Power: 4KW
|
|
5.Receiving rack
|
Type
|
manual / Electric receiving rack
|
|
6.PLC Control System
|
PLC Control System
|
Plc brand：Delta (optional)
Text control box:Vertical LCD touch screen control box/Swing arm LCD touch screen control box Language: English / Chinese / Customized |
|
|
Inverter
|
Rated power:7.5KW
|
