Quick Details
-
Weight:
-
3000 KG
-
Product name:
-

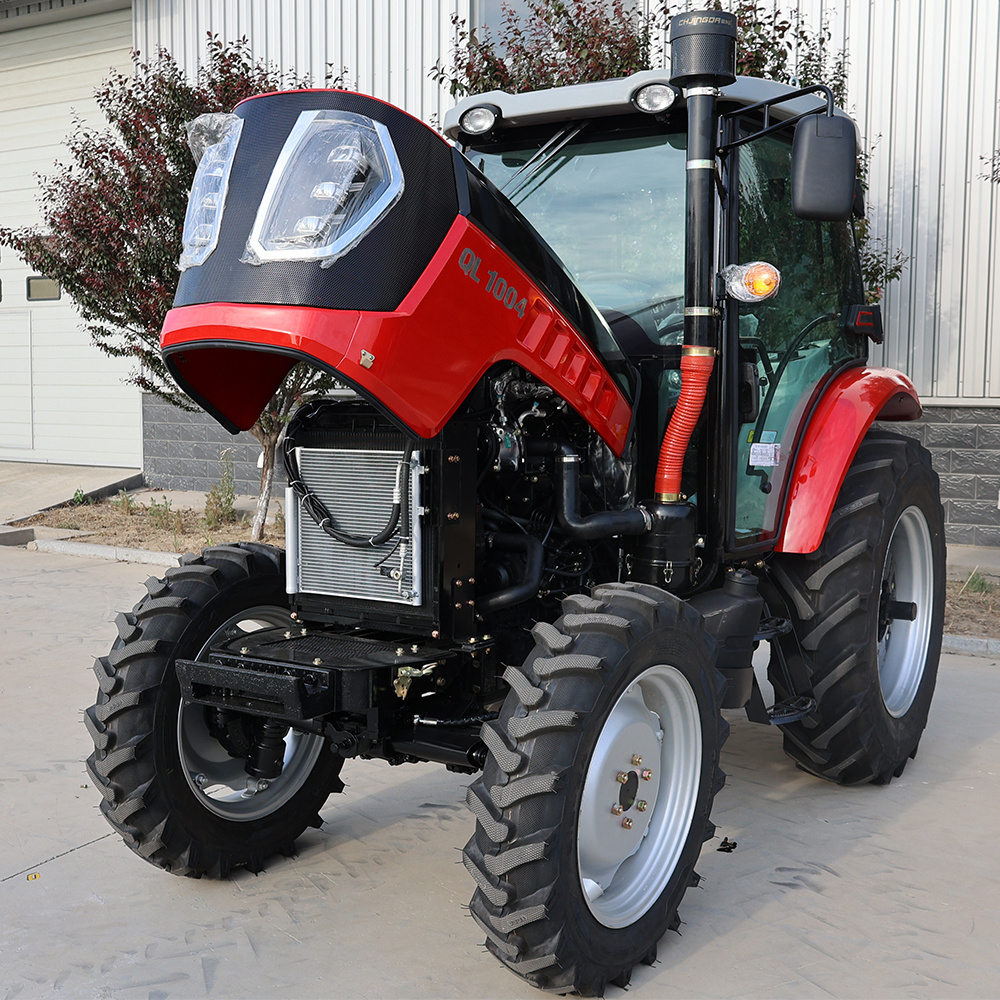

small farm agriceltural 4x4 diesel farming tractors
-
PTO power (KN):
-
56.9
-
Rated Traction( KN):
-
18
-
Dimensions(mm):
-
4190*1780*2680
-
Wheelbase(mm):
-
2090
-
Front and rear track (mm):
-
1150/1250/1350/1450
-
Gearbox:
-
12F+12R shuttle shift
-
Hydraulic output:
-
2 groups
-
PTO speed r/min:
-
540/760 or 540/1000 or 760/1000
Quick Details
-
Brand Name:
-
Assemble
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2023
-
Weight:
-
3000 KG
-
Product name:
-
small farm agriceltural 4x4 diesel farming tractors
-
PTO power (KN):
-
56.9
-
Rated Traction( KN):
-
18
-
Dimensions(mm):
-
4190*1780*2680
-
Wheelbase(mm):
-
2090
-
Front and rear track (mm):
-
1150/1250/1350/1450
-
Gearbox:
-
12F+12R shuttle shift
-
Hydraulic output:
-
2 groups
-
PTO speed r/min:
-
540/760 or 540/1000 or 760/1000
Products Description
|
Model
|
|
TK704B
|
TK804B
|
TK904B
|
TK1004B
|
|||||
|
Type
|
|
4x4
|
|
|
|
|||||
|
PTO power (KN)
|
|
45.5
|
51.2
|
56.9
|
62.6
|
|||||
|
Rated Traction( KN)
|
|
16
|
17.5
|
18
|
18.4
|
|||||
|
Dimensions(mm)
|
|
3900×1780×2680
|
4190×1780×2680
|
4190×1780×2680
|
4190×1780×2680
|
|||||
|
Wheelbase（mm）
|
|
2090
|
|
|
|
|||||
|
Front track (mm)
|
|
1150/1250/1350/1450
|
|
|
|
|||||
|
Rear track (mm)
|
|
1200-1500
|
|
|
|
|||||
|
Minimum ground clearance(mm)
|
|
380
|
|
|
|
|||||
|
Turning circle radius(m)
|
|
4.8
|
|
|
|
|||||
|
Weight (KG)
|
|
2890
|
2970
|
2970
|
3144
|
|||||
|
Clutch
|
|
Dual stage clutch
|
|
|
|
|||||
|
Gearbox
|
|
12F+12R shuttle shift
|
|
|
|
|||||
|
Front tire
|
|
9.5-24
|
|
|
|
|||||
|
Rear tire
|
|
14.9-30
|
|
|
|
|||||
|
Maximum lifting force at 610mm(KN)
|
|
14.2
|
15.9
|
16.8
|
17.7
|
|||||
|
Suspension mechanism
|
|
Three-point suspension cat II
|
|
|
|
|||||
|
Hydraulic output
|
|
2 groups
|
|
|
|
|||||
|
PTO speed r/min
|
|
540/760 or 540/1000 or 760/1000
|
|
|
|
|||||
|
PTO type
|
|
8-Ø38 Rectangular Spline
|
|
|
|
|||||
|
Engine brand
|
|
Xinchai/YTO/Quanchai/Yunnei
|
|
|
|
|||||
|
Engine type
|
|
Diesel engine
|
|
|
|
|||||
|
Engine cylinder
|
|
4
|
|
|
|
|||||
|
Start method
|
|
Electric
|
|
|
|
|||||
|
Radiater
|
|
20
|
|
|
|
|||||
|
Fuel tank
|
|
64
|
|
|
|
|||||
|
Engine oil pan(L)
|
|
10
|
|
|
|
|||||
|
Driveline oil (L)
|
|
20
|
|
|
|
|||||
|
Lifter(L)
|
|
9.5
|
|
|
|
|||||
|
This parameter table is for reference only, everything is based on actual products
|
|
|
|
|
|
|||||
