Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Dimension(L*W*H):
-
750*950*1600mm
-
Weight:
-
52
-
Sealing Diameter:
-
20-60mm and 60-150mm
-
Sensor Adjustable Height:
-
0-800mm
-
Cooling Method:
-
Air Cooling
-
Product name:
-
Induction Sealing Machine
-
Function:
-
Food Container Cap Foil Sealing
-
Suitable for:
-
plastic, glass and other non-metallic bottle
-
Sealing type:
-
Eletro-magnetic Induction Sealing
-
Keyword:
-
Plastic Sealer Machine
-
Usage:
-
Aluminum Foil Lid Sealing
-
Name:
-
Induction Foil Sealer
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Dimension(L*W*H):
-
750*950*1600mm
-
Weight:
-
52
-
Sealing Diameter:
-
20-60mm and 60-150mm
-
Sensor Adjustable Height:
-
0-800mm
-
Cooling Method:
-
Air Cooling
-
Product name:
-
Induction Sealing Machine
-
Function:
-
Food Container Cap Foil Sealing
-
Suitable for:
-
plastic, glass and other non-metallic bottle
-
Sealing type:
-
Eletro-magnetic Induction Sealing
-
Keyword:
-
Plastic Sealer Machine
-
Usage:
-
Aluminum Foil Lid Sealing
-
Name:
-
Induction Foil Sealer
Product Description
LGYF-2200
Without Conveyor
LGYF-2200 With Conveyor

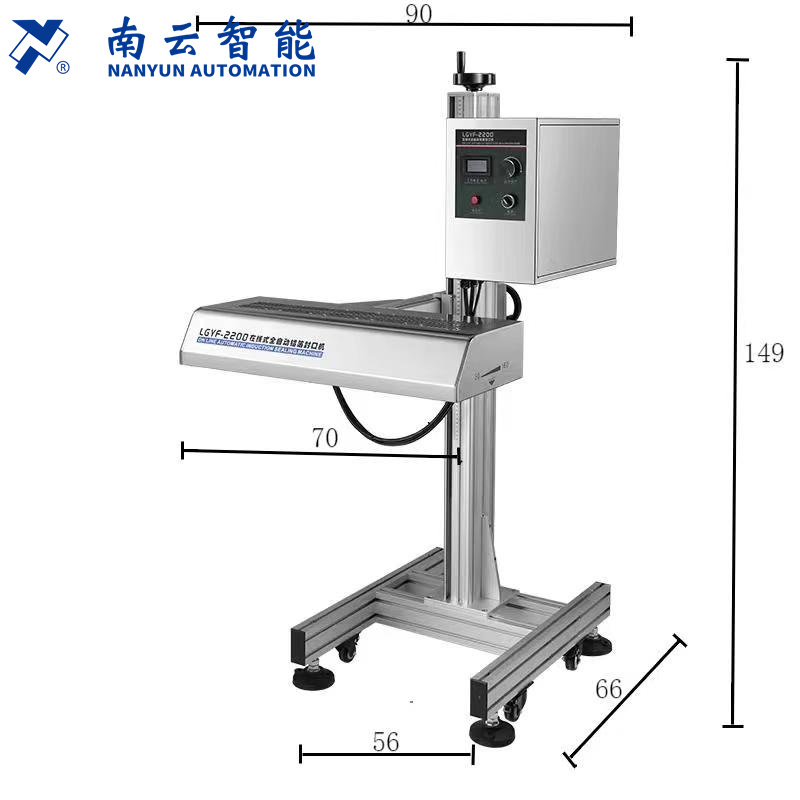

LGYF-2200 Electromagnetic Induction Aluminum Liner Bottle Sealing Machine
Overview
This machine adopts the principle of electromagnetic field induction heating, which uses high-frequency current to generate a magnetic field through the inductance coil. When the magnetic line of force passes through the sealing aluminum foil material, a large number of small eddy currents are instantly generated, which causes the aluminum foil to heat up at high speed and melt the molten glue compounded on the aluminum foil. Paste on the seal of the sealing object to achieve the purpose of rapid sealing.
It is suitable for the sealing operation of non-metallic bottles such as plastic and glass in the chemical, food, beverage, cosmetic and other industries.
*
Aim at wet-proof , leakage-proof, mildew-proof and extending preservation time.
* For sealing diameter from 20mm to 150mm and bottle height and conveyor height both are adjustable.
* The induction port adopts pure copper wire winding to generate heat quickly and uniformly.
* Suitable for aluminum foil sealing of various glass bottles, plastic bottles, ceramic bottles and polyester bottles.
* For sealing diameter from 20mm to 150mm and bottle height and conveyor height both are adjustable.
* The induction port adopts pure copper wire winding to generate heat quickly and uniformly.
* Suitable for aluminum foil sealing of various glass bottles, plastic bottles, ceramic bottles and polyester bottles.
Why Choose Induction Sealing?
When properly applied, induction lined caps provide a hermetic seal. Using an induction sealing system is ideal for extending product shelf life, preserving freshness and enhancing your product's value.
It is a great idea for business. We want to help you make your business more prosperous. To this end, we have developed this new product, which is faster, better and safer. Widely used for the food, cosmetics, oil and other industry plastic bottles, glass bottles and other non-metallic bottle of aluminum foil.
Features
1. LGYF-2200 continuous induction sealer is widely used as sealing package machine in industries such as food, lubricant and cosmetics etc. and used for large, medium batch continuous sealing work. Aluminum foil is sealed automatically when bottle is transmitted through under induction coil by conveyor.
2. With electromagnetic induction technology, this continuous sealer machine equipped with integrated circuit and circuit protection device, which makes it work stably and safe to use.
3. Firmly and automatically sealing , aluminum foil is sealed automatically when bottle is transmitted through under induction coil by conveyor, sealed securely on the bottle, would not leak.
4. LGYF-2200 model for bunghole sealing with foil or plastic foam liners sizes 20mm to 150mm wide.
5. High efficiently sealing machine, 0-18m/min, automatic continuous operation can increase the sealing efficiently, save resources and ensure the process correct, make it easy to use even for a fresh hand.
2. With electromagnetic induction technology, this continuous sealer machine equipped with integrated circuit and circuit protection device, which makes it work stably and safe to use.
3. Firmly and automatically sealing , aluminum foil is sealed automatically when bottle is transmitted through under induction coil by conveyor, sealed securely on the bottle, would not leak.
4. LGYF-2200 model for bunghole sealing with foil or plastic foam liners sizes 20mm to 150mm wide.
5. High efficiently sealing machine, 0-18m/min, automatic continuous operation can increase the sealing efficiently, save resources and ensure the process correct, make it easy to use even for a fresh hand.
Parameters
|
Model
|
LGYF-2200A
|
LGYF-2200B
|
|
|
Voltage
|
220V, 50/60Hz
|
|
|
|
Power
|
2300W
|
|
|
|
Sealing Diameter
|
φ20~φ60MM
|
φ30~φ150MM
|
|
|
Sensor Head Adjustment Range
|
Height: 0-800MM ; Front and Rear: 0-260MM
|
|
|
|
Sealing Speed
|
5~18M/MIN
|
|
|
|
Machine Size
|
750*950*1600MM
|
|
|
|
Weight
|
52KG
|
52KG
|
|
|
Conveyor Size
|
1200MM Length * 200mm Width
|
|
|
|
Chassis Material
|
304 stainless steel & aluminum profile
|
|
|
|
Working Mode
|
Continuous sealing
|
|
|
|
Cooling Method
|
Air cooling
|
|
|
|
Control Circuit
|
Transistor digital circuit
|
|
|
Similar Products
Details Images
Intelligent operation panel, button control operation is simpler and safer, easy to master
G
rille hidden fan unit, the sensor head is full of technology.
Extra large sensing range 30-150mm;
Efficient sealing
Pure copper large coil; High power coil, fast sealing; Efficient and strong
The height of the sealing can be adjusted
The casing is made of high-quality stainless steel, which is of good quality and corrosion-resistant.
