Quick Details
-
Usage:
-
Oil
-
Power:
-
Electric
-
Fuel:
-
Diesel
-
Pressure:
-
Low Pressure
-
material:
-
Cast Iron
-
Impeller suction mode:
-
Downdraft
-
Flow rate:
-
12L/Min
-
Color:
-
Black
Quick Details
-
Brand Name:
-
JMKE
-
Model Number:
-
AB/AOB-12
-
Place of Origin:
-
Tianjin, China
-
Usage:
-
Oil
-
Power:
-
Electric
-
Fuel:
-
Diesel
-
Pressure:
-
Low Pressure
-
material:
-
Cast Iron
-
Impeller suction mode:
-
Downdraft
-
Flow rate:
-
12L/Min
-
Color:
-
Black

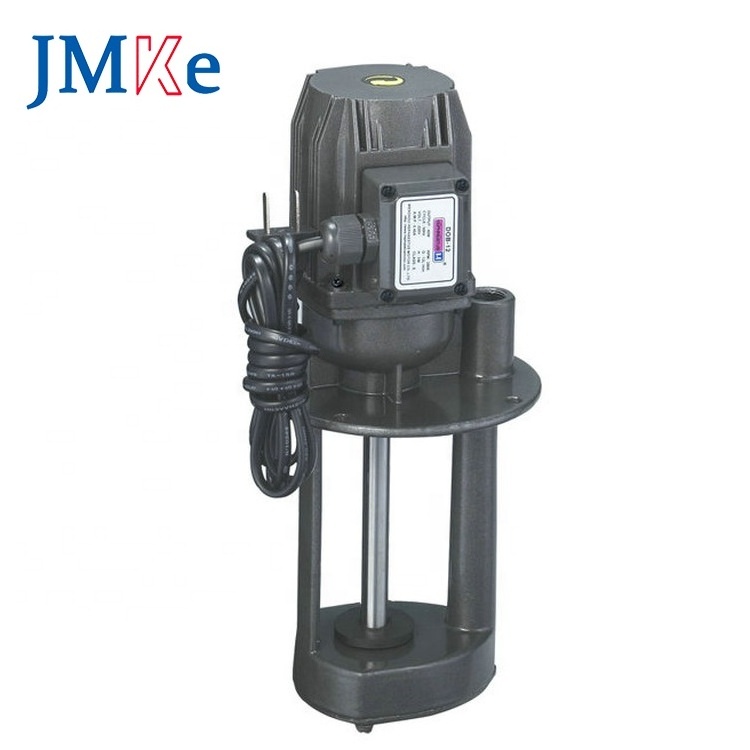

JMKE AB/AOB-12 Machine Coolant Low-temperature Circulating Inverter Cooling Pump 40W
1. High efficiency, energy saving and stable operation. Working continuously for more than 6 months
2. Cooling pump with high head. Flow is more twice than the ordinary one.
3. Integral structure: Good waterproof design, strong sealing for good mute effect
4. High-quality cold-rolled silicon lamination
How to get Quotation
Please offer below information
|
Voltage |
Power |
Flow |
Height |
Installing Dimension limited |
|
(V) |
(W) |
(L/min) |
(M) |
|
→ More Choice
Quick Selection
|
Pic |
Type |
Rated Output
|
Rated Voltage |
Max Height
|
Max Flow
|
|
|
DB/DOB |
|
40W |
380/220V |
3M |
12L/min |
|
|
120W |
220V |
4M |
20L/min |
|||
|
120W |
380V |
4M |
25L/min |
|||
|
120W |
380V |
4M |
50L/min |
|||
|
250W |
380V |
4M |
100L/min |
|||
|
AB/AOB |
|
40W |
380/220V |
3M |
12L/min |
|
|
90W |
380/220V |
4M |
25L/min |
|||
|
120 |
380V |
4M |
50L/min |
|||
|
250 |
380V |
4M |
100L/min |
|||
|
AB-200 |
450 |
380V |
4M |
200L/min |
||
|
JCB |
|
125W |
380V |
3.3M |
22L/min |
|
|
150W |
380V |
3.3M |
45L/min |
|||
|
TC (3 PHASE) |
|
100W |
220/380V |
3.5M |
30L/min |
|
|
180W |
220/380V |
7M |
80L/min |
|||
|
370W |
220/380V |
8M |
150L/min |
|||
|
1240 |
750 W |
220/380V |
13M |
210L/min |
||
|
CAST IRON TYPE |
|
90W |
220/380V |
5M |
30L/min |
|
|
1/4HP |
180W |
220/380V |
9M |
70L/min |
Applications:
Linear cutting machine; CNC machine ; Assembly line etc,.
Drilling Machine and Cooling System
How to get Quotation
Please offer below information
|
Voltage |
Power |
Max Flow |
Max Height/Head |
Installing Dimension limited |
|
(V) |
(W) |
(L/min) |
(M) |
|
