Quick Details
-
Dimension(L*W*H):
-
5200*2100*2000mm
-
Weight:
-
6500 KG
-
Name:
-

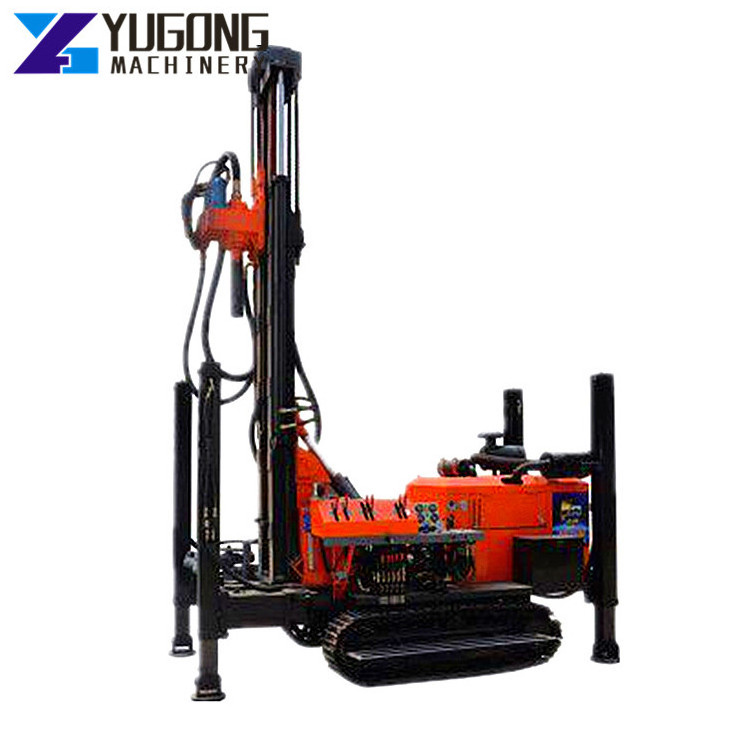

Borehole drilling truck
-
Drilling method:
-
Pneumatic Hammer Drilling
-
Key word:
-
Water wells drilling rig
-
Drill hole diameter:
-
75mm-325mm
-
Spindle Speed:
-
570 R/min
-
Working Pressure(bar):
-
1.05-2.46Mpa
-
Air consumption:
-
7-25m3/min
-
Rotate speed:
-
90 R/min
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Voltage:
-
Pneumatic
-
Dimension(L*W*H):
-
5200*2100*2000mm
-
Weight:
-
6500 KG
-
Name:
-
Borehole drilling truck
-
Drilling method:
-
Pneumatic Hammer Drilling
-
Key word:
-
Water wells drilling rig
-
Drill hole diameter:
-
75mm-325mm
-
Spindle Speed:
-
570 R/min
-
Working Pressure(bar):
-
1.05-2.46Mpa
-
Air consumption:
-
7-25m3/min
-
Rotate speed:
-
90 R/min
-
Certification:
-
ISO CE
Swivel for drilling rig spt soil testing sale
Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.
The rig can be drill in different layers.deep water well drilling rig uses full hydraulic control, and the top drive to drive the rotation of drilling tools with very high drilling efficiency.reasonable overall layout uses the tractor-mounted or full ground challis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
| YG-180 | YG-200 | YG-300 | YG-300A | YG-400 | YG-600 | YG-800 | |
|
The weight (T) |
4.5 | 5.8 | 9 | 7 | 10 | 12 | 13 |
|
The hole diameter (mm) |
140-254 | 140-305 | 140-325 | 140-325 | 140-350 | 140-350 | 140-500 |
|
Drilling depth (m) |
180 | 200 | 300 | 300 | 400 | 600 | 800 |
|
One-time advance length (m) |
3.4 | 3.4 | 6.6 | 3.4 | 6.6 | 6.6 | 6.6 |
|
Walking speed (km/h) |
2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
|
Climbing angles (Max.) |
30 | 30 | 30 | 30 | 30 | 30 | 30 |
|
Equipped capacitor (KW) |
55 | 65-70 | 84 | 75.8 | 92 | 115 | 140 |
|
Using air pressure (mpa) |
1.7-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.0 | 1.7-3.5 | 1.7-3.5 | 1.7-3.5 |
|
Air consumption (m3/min) |
17-31 | 17-30 | 17-35 | 17-35 | 17-35 | 17-35 | 17-35 |
|
Drill pipe diameter (mm) |
76 89 | 76 89 | 89 102 | 76 89 102 | 89 102 108 | 102 108 114 | 76 89 102 |
|
Drill pipe length (m) |
1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 |
| Rig lifting force(T) | 15 | 12 | 20 | 16 | 22 | 28 | 35 |
|
Swing speed (rpm) |
45-65 | 45-70 | 55-115 | 40-70 | 45-115 | 45-115 | 55-115 |
|
Swing torque (N.m) |
3200-4600 | 3500-4800 | 6200-8500 | 5700-7500 | 6500-9000 | 8500-11000 | 8660-11150 |
|
Dimension (mm) |
3800*1500* 2200 |
4000*1750* 2450 |
5900*2000* 2850 |
4100*1950* 2600 |
5900*2100* 2850 |
6000*2200* 2850 |
6100*2100* 2900 |
1.Safe and stable walking mechanism.
2.The center of gravity is low and the ground clearance is large, so that it can cross the rough road easily. Special wheel motor drive has strong climbing ability and low failure rate.
3.Advanced automatic leveling function of crawler and stop brake system not only make the drilling rig run stably, but also greatly reduce the impact of the ground on the drilling rig and ensure the driving safety.
4. The unique anti stripping device has greatly improved the reliability of the drilling truck when walking.
5.Vehicle-mounted diesel engine is adaptable to harsh environment. It can walk freely without external air compressor and is easy to move.
