Quick Details
-
Model Number:
-
DH48S-1Z
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CG
-
Model Number:
-
DH48S-1Z
For DH48S-1Z
(Connect the normal close)
For example, when setting 07s03=7.03s, it means that the output indicator will stay the on status 7.03 seconds, then it will be off, and will not be bright again.
(Connect the normal open)
For example, when setting 07s03=7.03s, it means that the output indicator will stay the off status 7.03 seconds, then it will be on, and will not be off again.
For DH48S-2Z
(Connect two normal close)
For example, when setting 07s03=7.03s, it means that the two output indicator will stay the on status 7.03 seconds, then it will be off, and will not be bright again.
(Connect two normal open)
For example, when setting 07s03=7.03s, it means that the two output indicator will stay the off status 7.03 seconds, then it will be on, and will not be off again.
| Model number | Product name | Contact form | Delay time |
| DH48S-1Z | Time relay | On-delay SPDT | 1m-99h99m; 1s-99m99s; 0.01s-99.99s |
| DH48S-2Z | Time relay | On-delay DPDT | 1m-99h99m; 1s-99m99s; 0.01s-99.99s |
| DH48S-2ZH | Time relay | On-delay SPDT with SPDT instantaneous | 1m-99h99m; 1s-99m99s; 0.01s-99.99s |

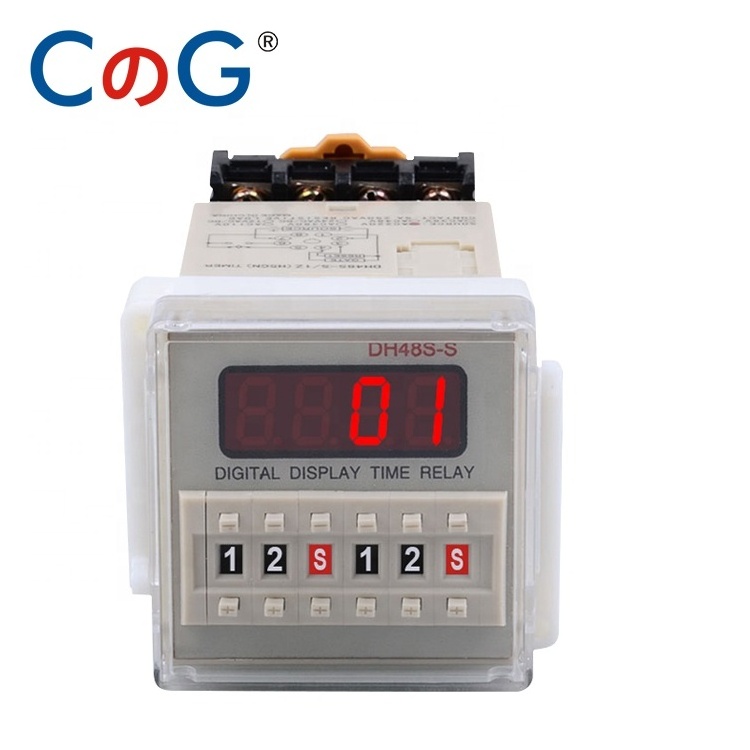

| DH48S-S | Time relay | Repeat cycle SPDT | 0.1s-99h |
| DH48S-S-2Z | Time relay | Repeat cycle DPDT | 0.1s-99h |
| Model number | DH48S |
| Supply voltage | 36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 2W max |
| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| External dimensions | 48x48x97.4 mm |
| Perforate dimensions | 45 10x45 10 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | DH48S digital timer |
