Quick Details
-
OS:
-
android 6.0/7.0
-
Functions:
-
3G,camera,WiFI,blue tooth,GPS,NFC,barcode scanner,thermal printer
-
CPU:
-
MediaTek MTK6572 Dual core 1.4 GHZ, ARM
-
Touch screen:
-
4 inch
-
Battery:
-
3400mah
-
MEMORY:
-
2G
-
FLASH:
-
16G
-
Size:
-
209*83*49mm
-
Programable device:
-
with SDK
-
Hard Disk Capacity:
-
2+16GB
-
Operation System:
-
Android
Quick Details
-
Brand Name:
-
QS
-
Place of Origin:
-
Guangdong, China
-
Item name:
-
parking ticket machine
-
OS:
-
android 6.0/7.0
-
Functions:
-
3G,camera,WiFI,blue tooth,GPS,NFC,barcode scanner,thermal printer
-
CPU:
-
MediaTek MTK6572 Dual core 1.4 GHZ, ARM
-
Touch screen:
-
4 inch
-
Battery:
-
3400mah
-
MEMORY:
-
2G
-
FLASH:
-
16G
-
Size:
-
209*83*49mm
-
Programable device:
-
with SDK
-
Hard Disk Capacity:
-
2+16GB
-
Operation System:
-
Android

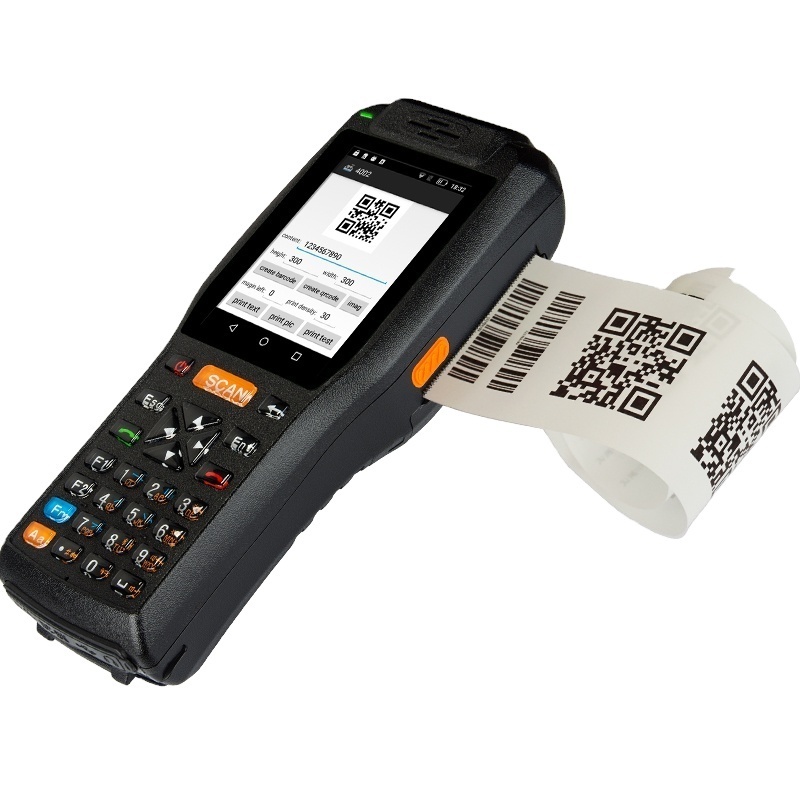

All in one Android Handheld Wireless Portable Scanner Bus Ticket Pos Machine PDA3505
Product Description
| PDA3505 Specifications | handhled bus ticket machine |
| Mechanical | |
| Demensions | 220*85*59mm |
| Weight | 570g |
| System Architecture | |
| Processor | 28nm ARM7 Quad-core cortex A53 @1.3GHz |
| RAM/Memory | 2GB |
| Storage | 16GB |
| Display |
4 inch 480*800 With Industrial touch panel |
| Keypad | 29 physical Keyboards |
| Camera | Rear AF 5.0M |
| Battery | Recharge 7.4v 3400mAh |
| Interface | Micro SIM*1/PSAM*2/TF card *1/RS232*1 |
| Extended | Fingerprint/IC chip card |
| O.S Platform | android 6.0/7.0 |
| Printer | 58mm thermal printer 70mm/sec |
| Communicate (4G network for optional) | |
| Mobile netowrk(3G) | GSM 850/900/1800/1900MHz |
| UTMS 850/2100Mhz | |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetoothv | BLE4.0 |
| GPS | Integrated GPS and AGPS |
| NFC | standard ISO 14443A/B |
| Working status | |
| Battery status | LED light |
| Data Collection | |
| Barcode engine | Laser : Symbol Se955 |
| 2D scanner | CCD engine: support LCD scanner |
|
PDF417/ MicroPDF417/ Composite/ TLC-39
Datamatrix/ QR/ code/ Micro/ QR/ code,etc |
|
| Environmental | |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| Storage Temperature | -20° to 70°C (-13° to 158°F) |
| Environmental Sealing | Independently certified IP65 standards |
| Certificate | |
| Certificate |
CE,Rohs,IP65 certificates |
