Quick Details
-
Product name:
-
Access Control Panel
-
Card Type:
-
IC & ID
-
Power Supply:
-
12V/24V
-
Feature:
-
Attendance Record
-
Access Mode:
-
Fingerprint Card
-
Color:
-
Black
-
Material:
-
Plastic
-
Warranty:
-
3 Years
-
Language:
-
English
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FBD
-
Model Number:
-
FBD-AC128
-
Product name:
-
Access Control Panel
-
Card Type:
-
IC & ID
-
Power Supply:
-
12V/24V
-
Feature:
-
Attendance Record
-
Access Mode:
-
Fingerprint Card
-
Color:
-
Black
-
Material:
-
Plastic
-
Warranty:
-
3 Years
-
Language:
-
English
Product Description
|
Product Name
|
Access Control Panel
|
|
|
Set Number
|
FBD-AC128/129/130
|
|
|
Communication:
|
TCP/IP
|
|
|
Software Supportable Database:
|
TCP/IP
|
|
|
Number of door controls:
|
1 door/2 doors/4 doors (Get in and out door by swiping card, or get in by swiping card and get out door
by button) |
|
|
Number of readers:
|
2/ 4 readers
|
|
|
Door opening time extension:
|
Setting: 1 ~ 600 seconds (adjustable)
|
|
|
Number of controllers:
|
Unlimited (Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports)
|
|
|
Number of users: 20,000 users
|
20,000 users
|
|
|
umber of event buffers (offline):
|
100,000 event buffers
|
|
|
Power input:
|
DC 12V, 4 ~ 7A
|
|
|
Power consumption of the PCB:
|
Less than 100mA
|
|
|
oftware supportable database:
|
Access & SQL
|
|
|
Input format of the reader:
|
Wiegand 26 bit (All card readers with compatible protocol like HID, EM, M1 etc.)
|
|
|
Max distance from reader to controller:
|
100m (default distance 80m)
|
|
|
Alarm for long time door open, illegal entry, intimidate
|
Yes
|
|
|
Fire and alarm linkage:
|
If there is no connection to the expansion card, only has software interface alarm and control the
computer speaker. |
|
|
When connected with expansion car
|
|
|
|
Remote control module:
|
Yes
|
|
|
Anti-submarine back and anti-tail:
|
Yes
|
|
|
Multi-Card Open Door: Yes open long time at specific time: Yes
|
Yes
|
|
|
Electronic Card:
|
Yes
|
|
|
Emergency Lock:
|
Yes
|
|
|
First card unlock:
|
Yes
|
|
|
Unlock based on internal and external validation:
|
Yes
|
|
Product Details
1.Products Specification :
1.2 Free Software: Will equipped with a CD disk. And the software and English user manual are included in the CD disk. Operating system supported by software: Windows XP SP3/ Windows 7 /Windows Server 2003 SP2 /Windows Server 2008/ Windows Server 2008 R2 .
1.3 LEDStatus Explain：
•IN : Light is blink,valid card
•
SYS : Ligh is bink.CPU runs normally
•ERR : Light is off.apparatus run normally,
•LINK: Green light flashes,the device already connect
•ACT: Orange light flashes,the device is processing data
•POWER : Light on ,have power to device
•DRI-DR2: Yellow light on ,door is open
1.4 Wiring standard (Even the connection distance is very short. it must be implemented according to the following requirement)
+ 220V AC Power cable: Thee-wire power supply, the cross-sectional area 1.0mm² or more. It's required that power supply must be grounded to prevent From power interference.
+ The line of electric lock to controller: It's recommended to use two-wire power line, the cross-sectional area 1.0mm² or more. If the distance over 50 meters, it's considered to use thicker line or multiple parallel.
+ TCP/IP Communication Line: Network cable + The card reader, door sensor and button line: Can use network cable or others

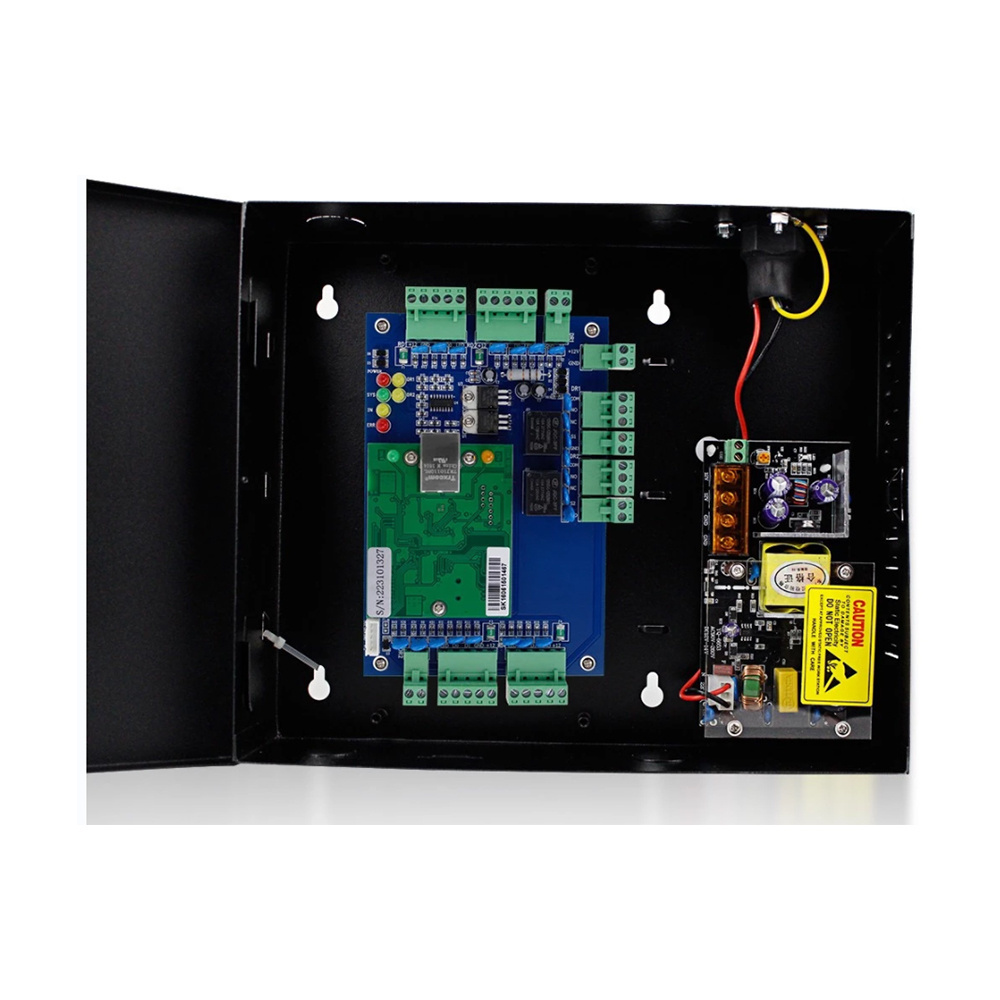

2. Access Control Power Supply Converter Box Power: 50~60 W Power:
Input: AC90V / 260V Output: DC 12V-14V, 5A
Input: AC90V / 260V Output: DC 12V-14V, 5A
Automatic protection function, in the event of an unexpected situation such as a short circuit in the power supply,
The power supply will be temporarily disconnected or the fuse will be automatically secured.
Supports up to 2-4 card readers and 1 access control panel
Supports up to 4pcs electric mortise locks or 3pcs 280KG magnetic locks
Size:
235x277x72mm Weight: 1.68kg
3. 125KHz USB Card Reader
Card Type: 125KHz EM card or EM compatible card
USB to PC: Windows 2000/xp/7/8
Output Format: First 10 digit or last 8 digit (selectable)
