Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
KH280-100A-12V
-
Name:
-
Lawnmower Relay
-
Contact Material:
-
Silver Alloy
-
Colour:
-
Black
-
Shape:
-
Square
-
Size:
-
76CM*47CM*64CM
-
Characteristic:
-
12V
-
Coil Power:
-
1500W
-
Contact Form:
-
1H(1A)
-
Electrical life:
-
100,000 Operations
Quick Details
-
OE NO.:
-
725-06153A, 725-06153
-
Warranty:
-
1 Months
-
Brand Name:
-
Kuang Hong, Kuang Hong
-
Place of Origin:
-
China
-
Model Number:
-
KH280-100A-12V
-
Name:
-
Lawnmower Relay
-
Contact Material:
-
Silver Alloy
-
Colour:
-
Black
-
Shape:
-
Square
-
Size:
-
76CM*47CM*64CM
-
Characteristic:
-
12V
-
Coil Power:
-
1500W
-
Contact Form:
-
1H(1A)
-
Electrical life:
-
100,000 Operations
Product Description
|

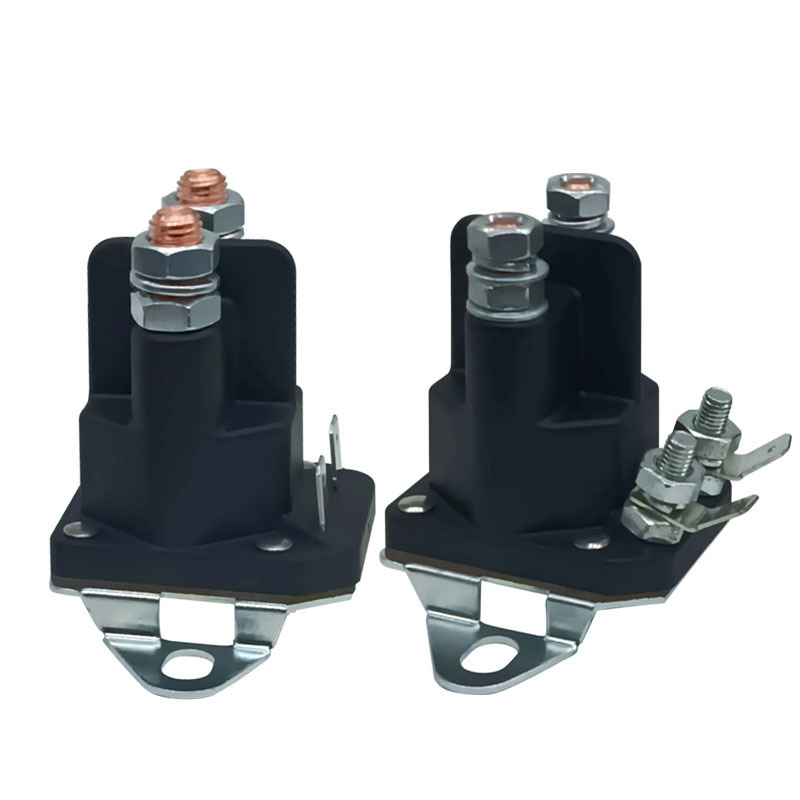

Lawnmower relayName
|
Lawnmower Relay
|
|
Contact Material
|
Silver alloy
|
|
Colour
|
Black
|
|
Shape
|
Square
|
|
69Size
|
69MM*76MM*41.6MM
|
|
Characteristic
|
24V 1.5KW
|
CONTACT DATA
|
Contact Material
|
AgSnO12
|
|
Contact Form
|
1H(1A)
|
|
Contact Ratings
|
NO:100A 24VDC
|
|
Contact Resistance
|
100mMax at6VDC 1A
|
|
Max Switching Current
|
100A
|
|
Max Switching Voltage
|
75VDC
|
|
Max Switching Power
|
1500W
|
|
Life Expectancy Electrical
|
100,000 Operations(at 30 Operations/minute)
|
|
Life Expectancy Mechanical
|
100,000 Operations
|
COIL SPECIFICATION
|
Nominal Voltage（VDC）
|
|
24
|
|
|
Coil Resistance（Ω）
|
14.4
|
40w
|
|
|
Max Operate Voltage（VDC）
|
|
12~16.8
|
|
|
Mix Release Voltage（VDC）
|
|
2.4~7.2
|
|
|
Max Applicable Voltage(VDC)
|
|
31.2
|
|
CHARCTERISTICS
|
Temperature Range
|
|
-30℃~+80℃
|
|
|
Vibration Resistance
|
|
10~55Hz，1.5mm
|
|
|
Shock Resistance
|
Operations Extremes
|
10g
|
|
|
|
Damage Limits
|
100g
|
|
|
Humidity
|
|
40%~85%
|
|
|
Insulation Resistance
|
|
100mΩ Min at 500VDC
|
|
|
Safety Standard
|
|
CCEE
|
|
|
Dielectric Strength Between Open Contacts
|
|
500VAC（for one minute/sec）
|
|
|
Between Contact And Coil
|
|
750VAC(for one minute/sec)
|
|
|
Operate Time
|
|
7ms
|
|
|
Release Time
|
|
5ms
|
|
