Quick Details
-
Brand Name:
-
DEM
-
Model Number:
-
QLBF-200iii
-
Part no.:
-
PW5000
-
Product name:
-

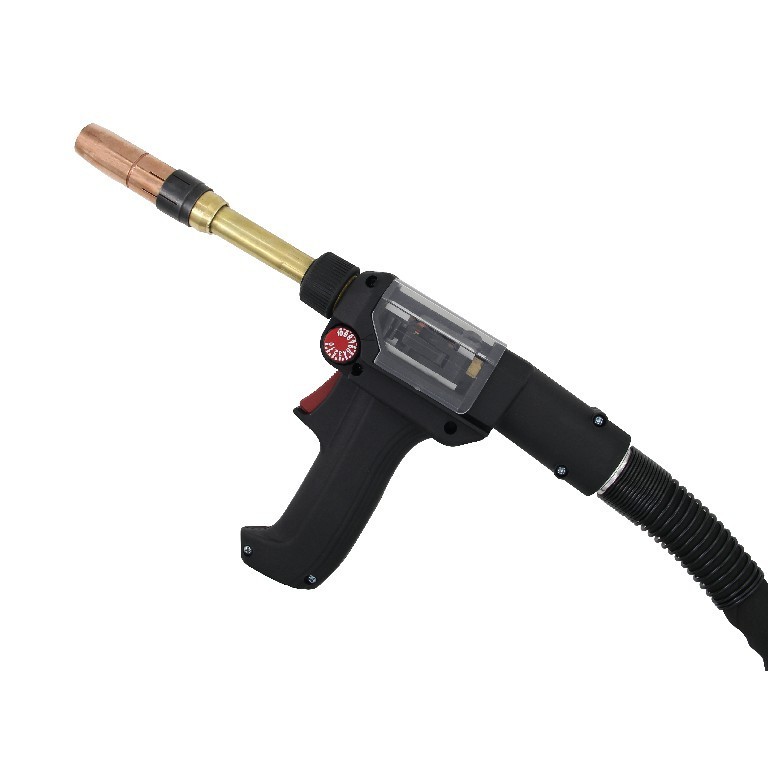

Push Pull MIG Gun
-
Gas:
-
Argon Gas
-
Cooling type:
-
Air cooled
-
Length:
-
3.8M-7.6M
-
Electrode:
-
0.02-3/32(0.5mm-2.4mm)
-
Rating:
-
200A
-
Material:
-
Cooper
-
Handle:
-
option
-
MOQ:
-
1 PC
Quick Details
-
Type:
-
Welding Torch
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEM
-
Model Number:
-
QLBF-200iii
-
Part no.:
-
PW5000
-
Product name:
-
Push Pull MIG Gun
-
Gas:
-
Argon Gas
-
Cooling type:
-
Air cooled
-
Length:
-
3.8M-7.6M
-
Electrode:
-
0.02-3/32(0.5mm-2.4mm)
-
Rating:
-
200A
-
Material:
-
Cooper
-
Handle:
-
option
-
MOQ:
-
1 PC
DESCRIPTION
|
No.
|
Part Number
|
Description
|
No.
|
Part Number
|
Description
|
|
1
|
PWF51180
|
AW50OO/AL40OOMLO° /Gun Neck,AW50OO/AL40OOML 0°
|
22
|
PWF5111
|
Straight Conductor Tube o°
|
|
|
PWF5145
|
AW50OO/AL_40OOML 45°/Gun Neck,AW5000/AL400OML45°
|
|
PWF5112
|
Goose Conductor Tube 45°
|
|
2
|
3012C-200
|
lLiner, Used with Gun Neck
|
23
|
Q516020
|
16×2lO-Ring 16×2
|
|
3
|
PWZ5000
|
Drive Unit,Watercooled
|
24
|
Q508020
|
8×2IO-Ring 8×2
|
|
4
|
EJO003
|
Trigger Switch
|
25
|
PWU5102
|
Pin,Head Tube
|
|
5
|
PWHO100
|
Gun Handle
|
26
|
PWU5103
|
Wire Inlet Guide,Front
|
|
6
|
PWH0103
|
Cover
|
27
|
PWU5101
|
Neck Adaptor,Watercooled
|
|
7
|
Q8322*
|
Potentiometer 22KQ
|
28
|
Q3106
|
Nut M6
|
|
|
Q8310
|
Potentiometer 10KQ
|
29
|
PWZ5011
|
Bracket
|
|
8
|
PWH0104
|
Potentiometer Knob
|
30
|
Q230416G
|
Screw M4×16
|
|
9
|
PWL5080
|
Cable Assembly 8m
|
31
|
Q230525G
|
Screw M5×25
|
|
10
|
PWHO200
|
Back Handle
|
32
|
PWZ5012
|
Drive Roll 0.8-1.2mm
|
|
11
|
EP3001
|
Gun Plug Nut
|
33
|
PWZ5013
|
Insulation Ring,Motor
|
|
12
|
PWU5001
|
Euro Gun Plug Without Control
|
34
|
PWZ5014
|
lnsulation Washer,Motor
|
|
13
|
EU1011
|
M10×1FNut M10×1
|
35
|
LZ3001-42V
|
Motor and Gear Box (42V)
|
|
14
|
LTR5316-8*
|
Teflon Liner 0.8-1.6mm×8m
|
|
LZ3001
|
Motor and Gear Box(24V)
|
|
15
|
FVO009
|
Fronius /9 Pin Connector,Fronius
|
36
|
PWZ5015
|
Tension Arm
|
|
15a
|
MVOO10
|
10 Pin Connector
|
37
|
PWZ5016
|
Headless Screw M4×25.5
|
|
16
|
FSA5217
|
Nozzle Con.Plugable 17x79
|
38
|
PWZ5017
|
Press Arm
|
|
|
FSA5120
|
INozzle Cyl.Plugable 20×79
|
39
|
PWZ5018
|
Lever with Pressure Roll
|
|
|
FSA5217H
|
Nozzle Massiv-Con 17×79
|
40
|
Q270312G
|
Screw M3x12
|
|
|
FSA5217L
|
Nozzle Massiv-Con 17×85 Time
|
41
|
PWZ5019
|
Hook
|
|
17
|
FS×5212
|
Fixing Sleeve
|
42
|
PWZ5020
|
Wire Inlet Guide, Back
|
|
18
|
FSB5210AL
|
Contact Tip 1.0mm M10×1.25*40Al
|
43
|
DL3003
|
Nut M12×1.25
|
|
|
FSB5212AL*
|
Contact Tip 1.2mm M10×1.25x40A
|
44
|
PWZ5021
|
Push Roll 0.8-1.2mm
|
|
19
|
FSD5001
|
Diffuser
|
45
|
PWZ5022
|
Shaft,Push Roll
|
|
20
|
FSC5001
|
Contact Tip Socket M10×1.25
|
46
|
Q440212
|
Spring Pin 2×12
|
|
21
|
FSX5211
|
lnsulation Ring
|
47
|
PWZ5023
|
Base,Push Roll
|
10Ft MIG Welding Spool Gun Wire Feed Feeder for LAluminum Welder
TORCH MANUEL
Please select the welding torch features that meet your requirements in the table below!
1.Switch off welder power, make the Euro-central connector connect with wire feeder adaptor ,and tighten threaded collar. Insert plug into receptacle ,and tighten threaded collar.
2. Installing wire spool Press the button on the spool cover then open it, loose the spool cover fixing screw (levo), slide wire spool to it’s shaft, Adjust nut to make it suitable. Push wire through guides into wire feeding roll. Press the trigger after closed the cover, wire feeding roll make the wire into the gun tube.
3. Adjusting the wire feeding pressure Turn the pressure adjusting screw clockwise with hand, the pressure will increase, otherwise it will decrease.
4. Adjusting the wire feeding speed Turn the wire feeding speed adjusting knob clockwise, the speed will increase,
otherwise it will decrease.
This torch does not come with a regulator, so be sure to pick one up if you are looking to TIG weld.
