Quick Details
-
Voltage:
-
220v
-
Power:
-
50w
-
Dimension(L*W*H):
-
400*450*1020(mm)
-
Output Voltage:
-
0-12v
-
Controlling pneumatic Voltage:
-
24v dc 10w
-
Coating material:
-
Powder
-
Input air pressure:
-
0-8mpa
-
Output air pressure:
-
0-5mpa
-
Power frequency:
-
-18HZ
-
Input currenct:
-
-0.5A
-
Output high voltage:
-
0-100v
-
Output weight:
-
400
-
Maximumoutput powder:
-
290g/min
-
Certification:
-
CE
-
Weight:
-
40
Quick Details
-
Machine Type:
-
Handle
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gubot
-
Voltage:
-
220v
-
Power:
-
50w
-
Dimension(L*W*H):
-
400*450*1020(mm)
-
Output Voltage:
-
0-12v
-
Controlling pneumatic Voltage:
-
24v dc 10w
-
Coating material:
-
Powder
-
Input air pressure:
-
0-8mpa
-
Output air pressure:
-
0-5mpa
-
Power frequency:
-
-18HZ
-
Input currenct:
-
-0.5A
-
Output high voltage:
-
0-100v
-
Output weight:
-
400
-
Maximumoutput powder:
-
290g/min
-
Certification:
-
CE
-
Weight:
-
40
Recommend Products
Product Description

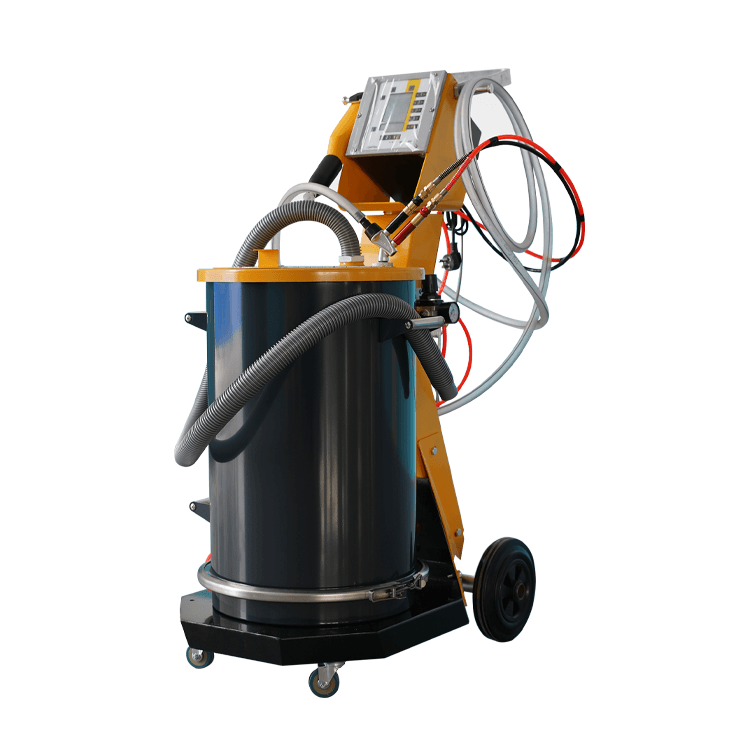

Electrostatic Powder Coating Machine ideal for powder spraying in the mass production, such as metal parts,wheels, furniture. Smart controller with latest technology, allows voltage adjustable to meet various powder applications.
Powder gun controller
1.Pre-set three programmer for panel, deep corner and recoating. 2.Digital display shows
the value of voltage/current accurately.
the value of voltage/current accurately.
Manual powder coating gun
1.Advanced spray gun ensures powder output uniform and good atomization effect.
2.Simple and light design easy to operate.
Big hopper
1.The 60L capacity
big hopper
allows
to accomplish big batch powder coating jobs.
2. The bottom of hopper is removable and easy for color change.
Product Advantages:
1.The spray gun adopts special spray gun with built-in electrostatic generator, which can spray powder evenly and prevent electrostatic backflow.
2. Electronic components ensure the reliability and stability of built-in voltage multiplier circuit.
3. Using precision integrated circuit to complete, high efficiency, fast powder, good spraying quality, manual and automatic.
4. The two-way central air pump is designed to increase the atomization air flow and improve the coating quality and powder loading rate.
5. It is equipped with ground safety protection circuit to ensure the safety of workers and machines.
6. Stainless steel powder barrel, fluidizing plate, high air permeability, easy to clean.
7. Suitable for many kinds of powder spraying, epoxy (commonly used), polyester, metal powder, etc.Powder change is simple and fast, suitable for multi-color spraying.
Specification
|
Items
|
Unit
|
Specifications
|
||
|
Electrical parameters
|
|
|
||
|
Voltage
|
v
|
220-240(single phase)
|
||
|
Power
|
w
|
50
|
||
|
Output voltage(Adjustable)
|
v
|
0-12
|
||
|
Controlling pneumatic voltage
|
v
|
24vdc10w
|
||
|
Air pressure parameters
|
|
|
||
|
Input air pressure
|
mpa
|
0-8
|
||
|
Output air pressure
|
mpa
|
0-5
|
||
|
Spray gun parameters
|
|
|
||
|
Power frequency
|
hz
|
-18
|
||
|
Input Current
|
A
|
-0.5
|
||
|
Output high voltage
|
kv
|
0-100
|
||
|
Output current
|
ua
|
0-100
|
||
|
Gun weight
|
g
|
400
|
||
|
Maximum output powder
|
g/min
|
290
|
||
|
Net size
|
mm
|
400*450*1020
|
||
|
Packing size
|
mm
|
450*500*1070
|
||
|
Net weight
|
kg
|
40
|
||
|
Packing weight
|
kg
|
55
|
||
Details Images
Packing & Delivery
PACKAGE:
We use the wooden pack the machine and it will be very safe to ship.And the machine will not be damaged during transportation.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
