Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shen Hai
-
Model Number:
-
BDM-I
-
Alias:
-
Explosion Proof Cable Gland,Ex d Cable Gland,Ex d Cable Gland
-
Function:
-
Waterproof,Corrosion-Resistant,Tightening And Sealing Of Cables
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Metric Standards:
-
M20*1.5,M25*1.5,M32*1.5,M40*1.5,M50*1.5,M63*1.5,M75*1.5,M90*1.5,M115*2
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
English Standards:
-
NPT1/2,NPT3/4,NPT1,NPT1 1/4,NPT1 1/2,NPT2,NPT2 1/2,NPT3,NPT4
-
European Standards:
-
DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN90,DN100
-
Explosion Proof Sign:
-
Ex db IIC Gb,Ex eb IIC Gb,Ex tb IIIC T80℃ Db
-
Corrosion Protection Level:
-
WF2
-
Selection Of Protective Measures:
-
Armored Gland,Non Armored Gland
Quick Details
-
Technics:
-
Lathing
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shen Hai
-
Model Number:
-
BDM-I
-
Alias:
-
Explosion Proof Cable Gland,Ex d Cable Gland,Ex d Cable Gland
-
Function:
-
Waterproof,Corrosion-Resistant,Tightening And Sealing Of Cables
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Metric Standards:
-
M20*1.5,M25*1.5,M32*1.5,M40*1.5,M50*1.5,M63*1.5,M75*1.5,M90*1.5,M115*2
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
English Standards:
-
NPT1/2,NPT3/4,NPT1,NPT1 1/4,NPT1 1/2,NPT2,NPT2 1/2,NPT3,NPT4
-
European Standards:
-
DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN90,DN100
-
Explosion Proof Sign:
-
Ex db IIC Gb,Ex eb IIC Gb,Ex tb IIIC T80℃ Db
-
Corrosion Protection Level:
-
WF2
-
Selection Of Protective Measures:
-
Armored Gland,Non Armored Gland
Product Parameters
BDM - Type I parameters and profiles

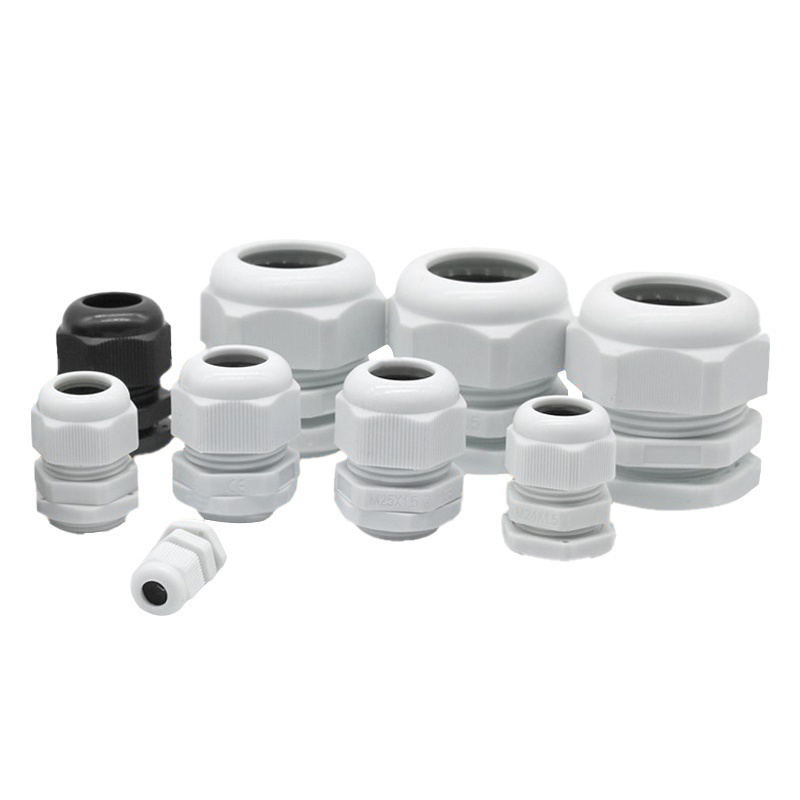

The single-layer sealed mechanical cable clamping device is pressed with engineering plastics and has strong anti-corrosion and waterproof performance. It is suitable for the introduction of unarmoured cables in the increased safety enclosure.
|
Thread size
|
Light source
|
Lamp type
|
Applicable cable diameter sealing range( Φ)
|
Thread length
|
Length
|
Opposite side/maximum outer diameter S( Φ)
|
||
|
Imperial
|
American
|
Metric
|
10~30
|
3000~5700
|
|
2.4
|
||
|
G1/2
|
NPT1/2
|
M20x1.5
|
8~12
|
10
|
37
|
24/27
|
||
|
G3/4
|
NPT3/4
|
M25x1.5
|
11~15
|
13
|
43
|
28/31
|
||
|
G1
|
NPT1
|
M32x1.5
|
18~20
|
24
|
58
|
37/41
|
||
|
G1 1/4
|
NPT1 1/4
|
M40x1.5
|
24~28
|
21
|
64
|
48/52
|
||
|
G1 1/2
|
NPT1 1/2
|
M50x1.5
|
31~37
|
21
|
66
|
56/63
|
||
|
G2
|
NPT2
|
M63x1.5
|
37~41
|
20
|
72
|
65/73
|
||
|
Explosion proof sign
|
Degree of protection
|
|
Ex eb IIC Gb
Ex tb IIIC T80℃ Db
|
IP66
|
Note: 1. The product is made of engineering plastics; 2. Other thread specifications can be customized.
Product Description
1. It is made of high-quality
Industrial plastics
, and the material can be stainless steel or brass according to user requirements;
2. Thread specifications can be customized according to user requirements or different specifications at both ends.
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1-T6 temperature group;
5. It is widely used for clamping and sealing cables in dangerous environment places such as petroleum exploitation, oil refining, chemical industry, gas station, etc.
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1-T6 temperature group;
5. It is widely used for clamping and sealing cables in dangerous environment places such as petroleum exploitation, oil refining, chemical industry, gas station, etc.
