Hydraulic Polyurethane Polyurea Spray Machine For PU Foam Insulation Casting Coating

Hydraulic Polyurethane Polyurea Spray Machine For PU Foam Insulation Casting Coating

FOB Reference Price: Get Latest Price

≥1 Sets

US $5999

≥10 Sets

US $4999

≥20 Sets

US $3999

≥32 Sets

US $3499

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drive mode:: hydraulic

Application:: spray polyurethane Polyurea pu foam

Air source:: 0.7Mpa, 0.4m3/min

Raw output:: 2-14kg/min

Max output pressure:: 20Mpa

Operate panel:: Touch screen panel

AB material output ration:: 1:1

Material:: Poly and ISO

Max hose length:: 120meter

Gun type:: air control spray gun

Weight:: 300kg

Power:: 17kw

Quick Details

Place of Origin:: Shandong, China

Certification:: ce

After-sales Service Provided:: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

Drive mode:: hydraulic

Application:: spray polyurethane Polyurea pu foam

Air source:: 0.7Mpa, 0.4m3/min

Raw output:: 2-14kg/min

Max output pressure:: 20Mpa

Operate panel:: Touch screen panel

AB material output ration:: 1:1

Material:: Poly and ISO

Max hose length:: 120meter

Gun type:: air control spray gun

Weight:: 300kg

Power:: 17kw

Product Description

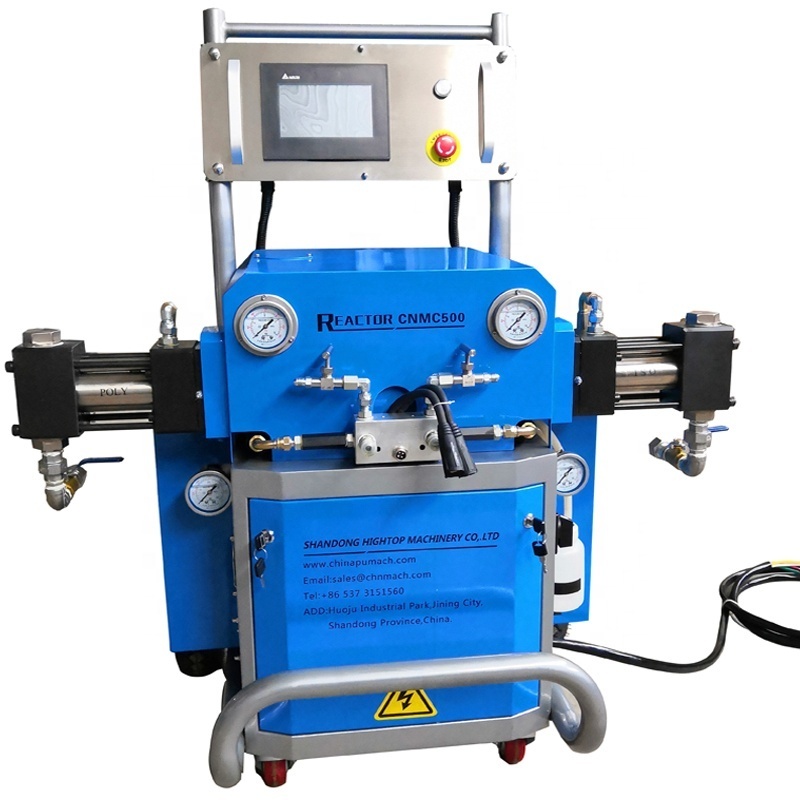

Hydraulic Polyurethane Polyurea Spray Machine For PU Foam Insulation Casting Coating

Hydraulic Polyurethane Polyurea Spray Machine For PU Foam Insulation Casting Coating can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc..

SPECIFICATIONS FOR PU Foam Spraying Machine
Model		CNMC-500
Power source		220v 3phase, 380v 3phase
Whole power		17KW
Driven mode		Hydraulic
Air source		0.7Mpa,0.4m3 /min
Raw output		2-14kg/min
Maximum output pressure		20-30Mpa
AB material output ratio		1:1
Material		Poly + ISO/MDI
Self-cleaning foaming air gun		1 piece
Transfer pump		2 pcs
Heating hose		49.2 feet (15m)
Connecting hose from feeding pump to machine		10 feet(3m)
Connecting hose from heating hose to gun		5 feet(1.5m)
Rings and Tools		1 set
User operation manual		1 copy

Main Features:

1. Equipped with air cooling system to reduced oil temperature, hence offer protection for the motor and pump and save oil.
2. Flat-mounted booster pump makes A and B material pumps simultaneously,making sure pressure stability.
3. Equipped with emergency switch system, help operator deal with emergencies rapidly;
4. Humanized design with equipment electrical operation panel, super easy to get the hang of it.

Hydraulic Polyurethane Polyurea Spray Machine For PU Foam Insulation Casting Coating

Detailed Images
