Quick Details
-
Dimension(L*W*H):
-
1200mm*1200mm*850mm
-
Weight (KG):
-
400
-
Working Chamber size:
-
1200mm*1200mm*850mm
-
Tumtable dia.:
-
750*780mm
-
loading weight:
-
100kgs
-
right door:
-
800*800mm
-
Turntable:
-
3 kinds for choosing
-
color:
-
customer- made
-
Nozzel:
-
8mm
-
Spry gun:
-
1-6pcs
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAFAN
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
1200mm*1200mm*850mm
-
Weight (KG):
-
400
-
Working Chamber size:
-
1200mm*1200mm*850mm
-
Tumtable dia.:
-
750*780mm
-
loading weight:
-
100kgs
-
right door:
-
800*800mm
-
Turntable:
-
3 kinds for choosing
-
color:
-
customer- made
-
Nozzel:
-
8mm
-
Spry gun:
-
1-6pcs
-
Certification:
-
ce
Products Description

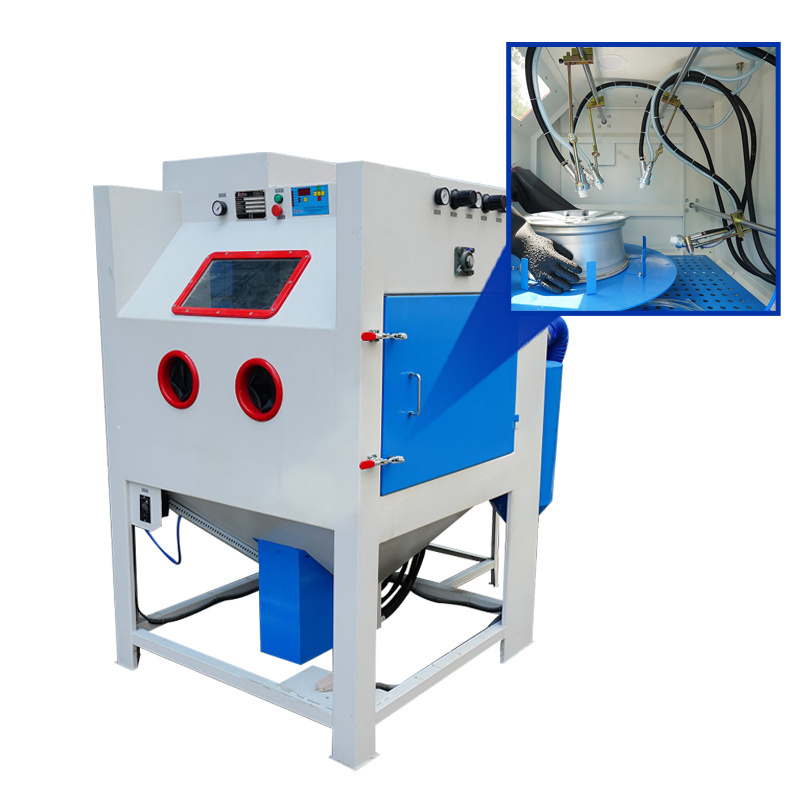

Wheel Rim Sand Blasting Machine Automatic Sandblasting Cabinet
This automatic sandblasting cabinet s
pecially designed 4 automatic blasting guns and one turntable,
suitable for kinds of workpieces less than 100kgs, such as various type of wheels, rim, mold, statue, castings, motor and turbos
, comvenient and quick. Operation and maintenance easy to learn.
Details Images
Automatic Sandblasting Cabinet Features
* Control panel at the front gives you easy access to set blasting time, select gun blasting mode and dust removing.
* The blasting guns can be set both manual or automatic operation to meet your various needs.
* Heavy-duty turntable is ideal to load large, irregular shaped workparts.
* Blasting time can be set as required, the machine will automatically stop when time arrives.
* The removed dust is collected through a cartridge filter dust collector, which is cleaned by pulse-jet valve.
* Used abraives can be recycled to the funnel beneath the working chamber.
* Control panel at the front gives you easy access to set blasting time, select gun blasting mode and dust removing.
* The blasting guns can be set both manual or automatic operation to meet your various needs.
* Heavy-duty turntable is ideal to load large, irregular shaped workparts.
* Blasting time can be set as required, the machine will automatically stop when time arrives.
* The removed dust is collected through a cartridge filter dust collector, which is cleaned by pulse-jet valve.
* Used abraives can be recycled to the funnel beneath the working chamber.
Blasting Chamber
Blasting Gun
Rubber Gloves
Air Gun
Intelligent Control Panel
Abrasive Recovery Hopper
|
Model:
|
KF-1212-4A
|
|
Working chamber dimension(L*W*H):
|
1200mm*1200mm*850mm
|
|
Power supply：
|
220V, 50HZ (voltage can be customized as local)
|
|
Machine light power：
|
220V, LED* 2
|
|
Compressed air source：
|
5-7bar(kg/㎡)
|
|
Air flow：
|
0.8-3m3/min dry and clean compressed air
|
|
Separator air volume：
|
8.5m3/min
|
|
Dust removal method
|
Cartridge Filter Type
|
|
Blasting Gun Qty
|
4 pcs
|
|
Blasting Nozzle
|
Boron Carbide
|
Application
This automatic sandblasting cabinet developed by KAFAN incorporating many years' experience of customers' practice, specially suitable for wheel finish, such as stripping old paints and creating a clean adhesive surface before powder coating. It requires 20 minutes by using white corundum.
Recommend Products
All sandblasting cabinet sizes can be customized according to your needs!
|
Model Loading weight (kg)
|
Turntable
|
Loading weight (kg)
|
Right door W*H(mm)
|
Outside size L*W*H(mm)
|
Cabin Size
L*W*H(mm)
|
|
KF-9080
|
Φ600mm
|
100
|
500*560
|
1250*950*1580
|
900*800*800
|
|
KF-1010
|
Φ800mm
|
150
|
650*780
|
1420*1050*1900
|
1000*1000*800
|
|
KF-1212
|
Φ800mm
|
200
|
750*780
|
1620*1250*2000
|
1200*1200*800
|
