200mm fixed plate type roller rigid high load trolley castor 8

200mm fixed plate type roller rigid high load trolley castor 8" 6" 5" 4" red PU wheel 8inch Heavy Duty industrial Caster Wheels

FOB Reference Price: Get Latest Price

≥500 Pieces

US $11.34

≥1000 Pieces

US $10.5

≥3000 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1year

Place of Origin:: Hubei, China, Hubei, China

Brand Name:: Double Rhombus

Wheel diameter range:: 125mm-200mm

Width of Tread:: 50mm

Load capacity:: 400kgs-550kgs

Wheel material:: PU + Metal

Bearing:: roller bearing

Color:: Red

customized sevice:: LOGO, COLOR

Application:: Heavy duty trolley and equipment use casters

Quick Details

Material:: POLYURETHANE, Steel

Type:: Plate Casters

Model Number:: D701-46D200x50

Warranty:: 1year

Place of Origin:: Hubei, China, Hubei, China

Brand Name:: Double Rhombus

Wheel diameter range:: 125mm-200mm

Width of Tread:: 50mm

Load capacity:: 400kgs-550kgs

Wheel material:: PU + Metal

Bearing:: roller bearing

Color:: Red

customized sevice:: LOGO, COLOR

Application:: Heavy duty trolley and equipment use casters

Products Descriptipon

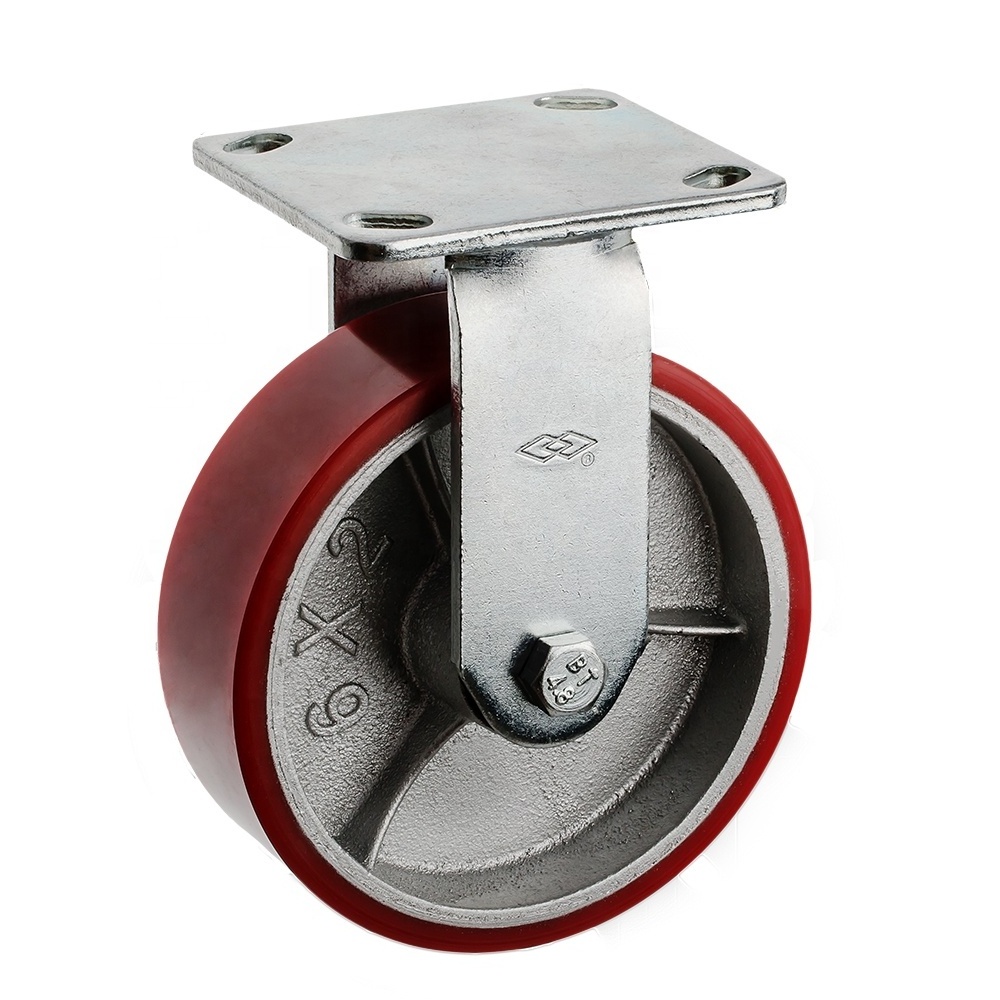

200mm fixed plate type roller rigid high load trolley castor 8" 6" 5" 4" red PU wheel 8inch Heavy Duty industrial Caster Wheels

We can supply 3D drawings, Please contact our sales manager to obtain it

Brand	Double Rhombus	Series	Heavy Duty Industrial Caster
Model No.	D701-46D200x50	Load Capacity(kgs)	550kgs
Wheel diameter(mm)	200mm	Width of Tread(mm)	50mm
Offset(mm)	/	Hole size(mm)	11mm
Overall height(mm)	240mm	Size of plate(mm)	114x100x6mm
Bearing	Roller bearing	Bolt hole spacing(mm)	84x71mm

Walking Performance Test

Test standard according to EN12532, the rubber industrial caster sample with 550 kg load, 5mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,

go over the barriers for 500 times, then remove the barriers, continue to walking 8.675km, the Welding housing Heavy duty red PU Caster Wheel need to walk total 9.425kms, after testing, sample no abrasive wear, the wheel is qualified.

Supply brake version,pass 5000 times Brake Fatigue Test

Long service life period

Test standard according to EN12532, the Heavy duty P olyurethane PU I ndustrial Castor p a ss 5000 times Fatigue Test for Locking Device.

Up to 5000 brake applications

High cost performance

6mm thickened welding Steel fork heavy load Industrial red PU Caster wheel

50mm width Wear-resistant PU wheel 6mm refined finishsurface treatment

Various wheel styles available, different colors,different bearing modes for choose

High quality color PU caster , Multiple configurations are optional

The 701 welding steel housing series heavy duty caster can optional: Rigid, swivel, side brake, total brake, 6mm super thickness fork with 4/5/6/8 inch size, wheel material can choose PU, Nylon, Rubber, and Resistant temperature wheel etc.
