Quick Details
-
Model Number:
-
HC-608E3, HC-608E3
-
Cutting length:
-
0.5-99999mm,Leaving middle skin more than 55mm
-
Weight:
-
90KG
-
Front end stripping length:
-
sheath wire 25mm-300mm,electric cable wire MAX 20mm
-
Rear end stripping length:
-
Sheath cable wire max 140mm,electric cable wire max 50mm
-
stripping range:
-
max sheath wire diameter is up to 13mm,BVR35mm2
-
Productivity:
-
1500PCS/h
Quick Details
-
Use:
-
Multifunctional
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hechang Machinery, Hechang Machinery
-
Model Number:
-
HC-608E3, HC-608E3
-
Cutting length:
-
0.5-99999mm,Leaving middle skin more than 55mm
-
Weight:
-
90KG
-
Front end stripping length:
-
sheath wire 25mm-300mm,electric cable wire MAX 20mm
-
Rear end stripping length:
-
Sheath cable wire max 140mm,electric cable wire max 50mm
-
stripping range:
-
max sheath wire diameter is up to 13mm,BVR35mm2
-
Productivity:
-
1500PCS/h

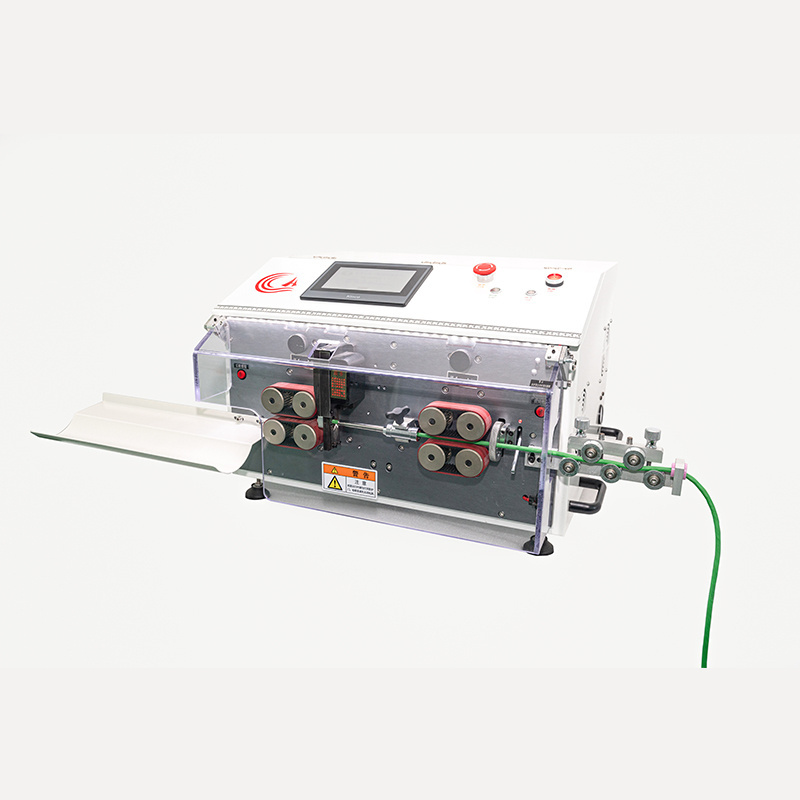

HC-608E3 Automatic Cable cut and strip Machine
Precise low-cost automatic cutting and stripping cable,wire,and other materials up to 35 mm2
Description
This machine mainly for the automotive industry, sensor industry, power industry, electric control cabinet, a battery box line, Military factory,Robotics,Automation, Railways, off shore, Medical, HC-608E3 machine can process whole electric wire according to required length,cut off and stripping head,not to hurt the tegument and conductor, belt feeding wire without leaving any traces if needed , high precision, thus greatly improving efficiency. You are assured maximum flexibility and even more efficient way of meeting your wire processing need.
Function show: cutting,precision cut , stripping with full pull off , stripping with half pull off
Feature
*Broad application range
*Fully programmable
*Multicore jacket cable ,electric wires ,cables cutting and stripping
*Intuitive, flexible and simple User-friendly English operation,colorful touch screen
*Extremely low maintenance
Watch Video
Hc-608E3 https://www.youtube.com/watch?v=uDYCncyED0k
|
Model |
HC-608E3 |
|
|
Outer dimensions |
L900mm*W530mm*H450mm |
|
|
Weight |
85kg |
|
|
Power supply |
220V |
|
|
Power consumption(220V) |
500W |
|
|
Cutting length |
0.5mm--99999.99mm leaving middle skin more than 120mm |
|
|
Cutting tolerances |
±( 0.002* L : indicates a cutting length. |
|
|
Stripping length |
Front end |
Max 30 0 mm |
|
Rear end |
Max 14 0mm |
|
|
Applicable wires |
Type |
Electrical wire,cables,flat modular phone cable,multicore wire, Flexible control wire,double flat sheath wire, Flat dual cable,Telflon,fiberglass wire etc |
|
O.D |
Max outer diameter φ 15 mm it depends the tight of cable insulation |
|
|
Wire feed speed |
variable |
|
|
Productivity ( pcs/h) |
800pcs/h |
|
|
Drive supply |
Stepping puls motor/Air cylinder , eight-wheel drive , independent drive box driver |
|
|
Air supply |
0.5-0.75MP |
|
