Quick Details
-
Model Number:
-
9002
-
Brand Name:
-
KEXING,IRRIPLAST,OEM
-
Product name:
-

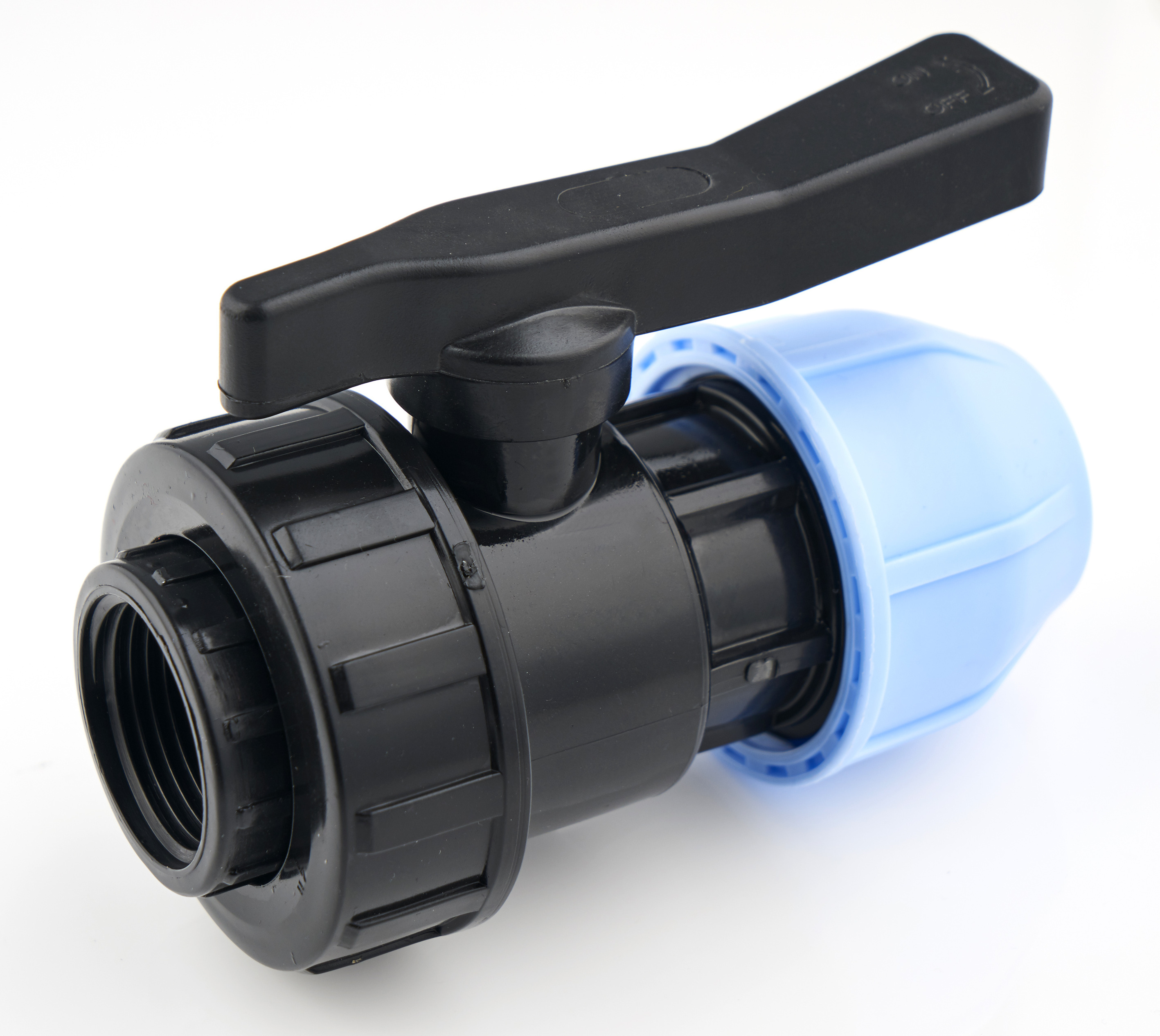

pe ball valve
-
Color:
-
green ,light blue,black
-
Raw Material:
-
Polyethylene Based Material
-
STANDARD:
-
ISO14236
-
Pressure:
-
PN16
-
MOQ:
-
500pcs
-
OEM:
-
Avaiable
Quick Details
-
Port Size:
-
1/2"-2"
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Model Number:
-
9002
-
Brand Name:
-
KEXING,IRRIPLAST,OEM
-
Product name:
-
pe ball valve
-
Color:
-
green ,light blue,black
-
Raw Material:
-
Polyethylene Based Material
-
STANDARD:
-
ISO14236
-
Pressure:
-
PN16
-
MOQ:
-
500pcs
-
OEM:
-
Avaiable
Standards
Dimensions and characteristics according to EN 712/713/715/911, ISO 3501/3503/3458/3459
To be installed on PE pipes conforming to ISO 11922, DIN 8072/8074, UNE 53131
Threads (BSP) manufactured according to standard ISO 7, DIN 2999.
Features
1. Fast & reliable connection
2. Perfect sealing under all conditions
3. Approved for use with drinking water
Applications
Water distribution, irrigation, swimming pool, and cable conduit
Technical data
Materials
|
Part |
Material |
|
Body(A) |
Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. |
|
Blocking bush(D) |
Polypropylene |
|
Nut(B) |
Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) |
|
Clinching ring(C) |
Polyacetal resin(POM)with high mechanical resistance And hardness |
|
O Ring gasket(E) |
Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
|
Reinforcing ring |
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4” |
Working Pressures
KEXING PP compression fittings allows the maximum working pressure(PN~PFA*) of 10 bar(UNI 9562) for diameters from 16mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
Reference Standards
Dimensions: UNI 9561Working
Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
Size:
Kexing have two different style PP compression fittings for your choose.
|
SIZE(MM) |
G/PCS |
PCS/CTN |
|
|
20 |
76 |
240 |
|
|
25 |
110 |
150 |
|
|
32 |
173 |
100 |
|
|
40 |
310 |
64 |
|
|
50 |
561 |
27 |
|
|
63 |
875 |
18 |
|
|
75 |
1167 |
13 |
|
|
90 |
1698 |
8 |
|
|
110 |
3202 |
4 |
