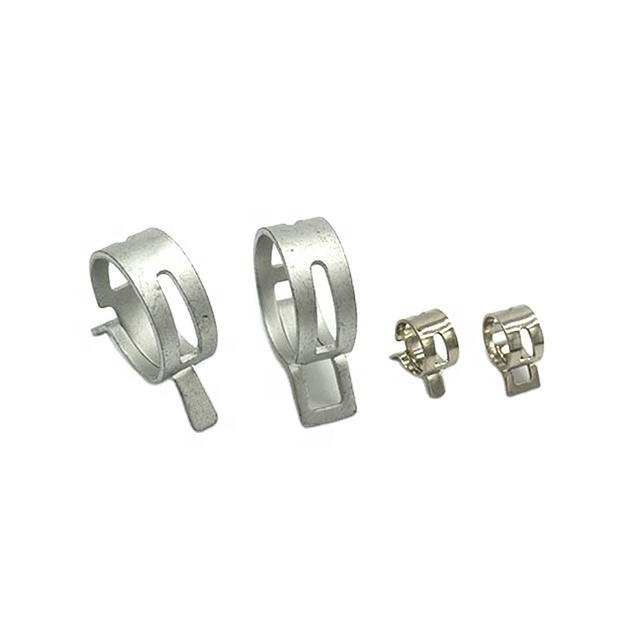

Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps
Dacromet plated constant tension spring band hose clips hose clamps

Dacromet plated constant tension spring band hose clips hose clamps

FOB Reference Price: Get Latest Price
≥1000 Pieces
US $0.04
≥50000 Pieces
US $0.03
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
XR
Model Number:
XR - HC006
Product name:
Dacromet plated constant tension spring band hose clips hose clamps
Product Type:
Spring hose clamp
Structure:
Band hose clamp
Adjust range:
Dia. 6mm to Dia. 38mm or according to your requirement
Bandwidth:
6mm/8mm/10mm/12mm/15mm
Bandwidth Thickness:
0.5mm/0.7mm/0.8mm/1.0mm/1.2mm/1.5mm
Surface treatment:
Blacking, polishing, zinc plating
Application:
Automobile, Aviation, Pipe Connection

Quick Details

Measurement system:
Metric
Material:
Stainless steel
Place of Origin:
Jiangsu, China
Brand Name:
XR
Model Number:
XR - HC006
Product name:
Dacromet plated constant tension spring band hose clips hose clamps
Product Type:
Spring hose clamp
Structure:
Band hose clamp
Adjust range:
Dia. 6mm to Dia. 38mm or according to your requirement
Bandwidth:
6mm/8mm/10mm/12mm/15mm
Bandwidth Thickness:
0.5mm/0.7mm/0.8mm/1.0mm/1.2mm/1.5mm
Surface treatment:
Blacking, polishing, zinc plating
Application:
Automobile, Aviation, Pipe Connection

Dacromet plated constant tension spring band hose clips hose clamps

Product Name: Dacromet plated constant tension spring band hose clips hose clamps5mn Zinc Plated Adjustable Spring Band Hose Clamp
Material: 65Mn steel
Size: Dia.6mm to Dia.36mm and customized
Bandwidth: 6mm/8mm/10mm/12mm/15mm
Application: Automotive Industry; General Industry;Heavy industry;Water Treatment

Item Original Diameter (B) (mm)

Range of Application (mm)

Bandwidth (C) (mm) Band Thickness (A) (mm) Material
1 6 6.5--7.5 6 0.5 65Mn Steel
2 7 7.6--8.3 6 0.5
3 8 8.6--9.5 8 0.7
4 9 9.7--10.7 8 0.7
5 10 10.8--11.9 8 0.8
6 11 11.9--13.1 8 0.8
7 12 13--14.3 8 0.8
8 13 14--15.5 10 0.8
9 14 15.1--16.7 12 1.0
10 15 16.2--17.9 12 1.0
11 16 17.3--19.1 12 1.0
12 17 18.4--20.2 12 1.0
13 18 19.4--21.4 12 1.2
14 19 20.5--22.6 12 1.2
15 20 21.6--23.8 12 1.2
16 21 22.5--24.5 12 1.2
17 22 23.6--25.5 12 1.2
18 23 24.8--27.4 12 1.2
19 24 25.9--28.5 12 1.2
20 25 27--29.8 12 1.2
21 26 29--31.5 12 1.2
22 27 29.5--32.5 12 1.2
23 28 31.6--34.4 15 1.5
24 30 34.5--36.5 15 1.5
25 32 37--40.5 15 1.5
26 34 40--42.5 15 1.5
27 36 42--44.5 15 1.5
28 38 44--46.5 15 1.5
Surface Treatment: Dacromrt, Black Coating

Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.

Q: Can you make customized items?
A: Yes. Please provide us the samples or the sketches, then we could assist you!

Q: Do customized items charge extra money?
A: Yes. Because a new mould is needed to make for the customized item.

Q: How long is your delivery time?
A: Samples delivery within 5days;
Hose clamp from stock of warehouse will delivery within 7days;
Mass production or customized size will delivery within 30-45days.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free.

Q: What about your after-sale service?

A: please check the quality and quantity of the products when receiving the goods. If you have any problems, please contact us in time. If you encounter problems in the process of reusing the products, please contact us and professional staff to provide guidance to you.
