Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WINTAI
-
Model Number:
-
WRB-093H
-
Warranty:
-
1 Years
-
Automatic:
-
yes
-
help arm:
-
yes
-
Tilt-back:
-
yes
-
Rims:
-
10"-26"
-
Color:
-
Blue,Grey,Red
-
Bead breaker power per cylinder:
-
2800 kg
-
Self-centering rotation speed:
-
6-12rpm
-
Net weight:
-
360kgs
-
MOQ:
-
1
-
Package:
-
export package
Quick Details
-
Motor Power:
-
0.75/1.1KW
-
Operating Pressure:
-
8-12 bar
-
Power Supply:
-
110V / 220V /380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WINTAI
-
Model Number:
-
WRB-093H
-
Warranty:
-
1 Years
-
Automatic:
-
yes
-
help arm:
-
yes
-
Tilt-back:
-
yes
-
Rims:
-
10"-26"
-
Color:
-
Blue,Grey,Red
-
Bead breaker power per cylinder:
-
2800 kg
-
Self-centering rotation speed:
-
6-12rpm
-
Net weight:
-
360kgs
-
MOQ:
-
1
-
Package:
-
export package
Product Application

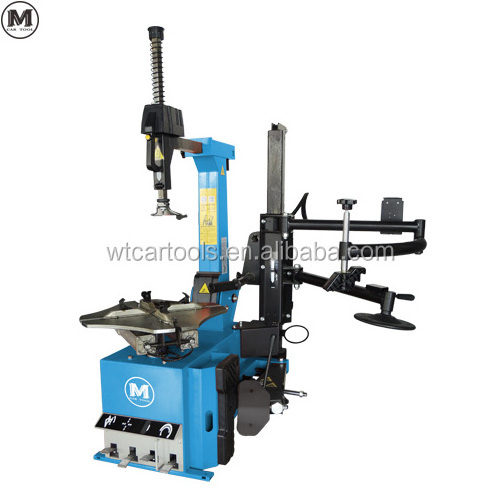

Professional Tilt-back automatic tire changer with help arms.
Applicable to small and medium car, support explosion-proof tire, low/flat tire and tubeless tire
Main Features
Standard configuration:
Help 5 auxiliary pneumatic lever arm means
Double and single crank pressure tire design, tire fitting job Multi-assisted pressure tires. The lower plate, in the demolition process can be assisted tire tire lifts. One lifting slide design, with fine-tuning to ensure smooth lifting and stability, more efficient and easier to use.
Backward curved arms designed ,so the top hub chuck can expand more room for operation and avoid accidental injury when clamping hub.
The trapezoid column base and housing overall box welding design, fully ensure the high intensity
Operation under the bearing structure, the overall stability and reliability.
Using 3mm thickness steel plate combined cabinet, firm structure, Weld concealment, beautiful appearance.
High strength tire changer head, adapt to strong job, a small amount of deformation, longer service life.
Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion
resistance, longer life. Drawer control assembly, simple structure , fast and easy maintenance.
Best quality all-aluminum copper motor with advantages of faster heat dissipation, low loss, high power.
180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
Thickness is 15 mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise (fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure
Remark:
1. Free crowbar dismantling head is optional.
2. Tire lifting device is optional
3. Vertical Column for pressure gauge is optional
Machine Parts
clamps suitable for 10"-26 rims, much bigger than other suppliers
Main Features
Tilting-back vertical column
Super Quality of Motor
Super quality of Motor: Wonder
Aluminum shelf but copper core
Super Big Air Tank
Aluminum alloy 180mm, bigger than 170mm in the market
Universal Tire Shovel
Universal Tire Shovel can rotate from all directions
Drawer Type Pedals
Drawer Type Pedals makes mechanics more convenient to maintain.
No need remove the cover of cabinet
Triangle Plate
Triangle plates are welded at many joint places ,make the machine more endurable and longer service time
