Quick Details
-
Part number:
-
SIM5320E
-
Dimension:
-
30 * 30 * 2.9 mm
-
Weight:
-
5.6g
-
Features 1:
-
USB Driver for Microsoft
-
Features 2:
-
USB Driver for Windows CE/Mobile
-
Features 3:
-
USB Driver for Linux /Android
-
Features 4:
-
Firmware update via USB
Quick Details
-
Application:
-
M2M
-
Model Number:
-
SIM5320E
-
Place of Origin:
-
China
-
Part number:
-
SIM5320E
-
Dimension:
-
30 * 30 * 2.9 mm
-
Weight:
-
5.6g
-
Features 1:
-
USB Driver for Microsoft
-
Features 2:
-
USB Driver for Windows CE/Mobile
-
Features 3:
-
USB Driver for Linux /Android
-
Features 4:
-
Firmware update via USB
Product Description

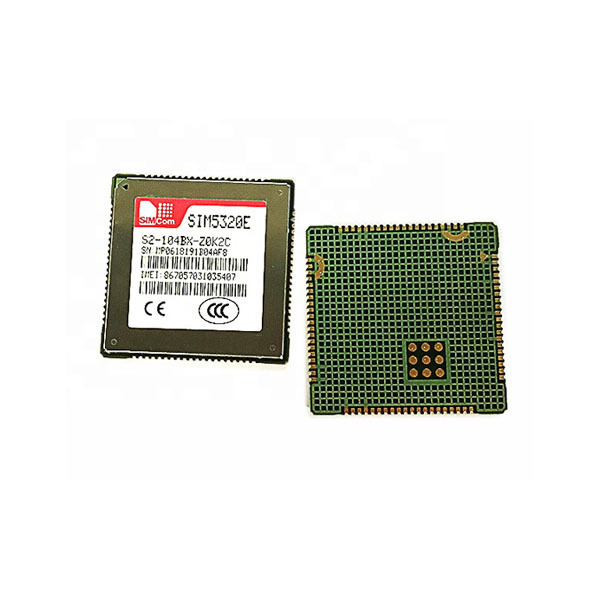

WCDMA/HSDPA Module
The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module in a LCC package whichsupports HSDPA up to 3.6Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. Withabundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS,the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range ofproducts like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.
|
General features
• SIM5320A:
Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320(J)E:
Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320J:
Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g
|
Other features
• USB Driver for Microsoft Windows2000/XP/Vista/7/8/10
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• Firmware update via USB
• MMS
• TCP/IP
• MUX protocol over UART
• FTP/FTPS/HTTP/HTTPS/SMTP/DNS
• FOTA
|
|
Certifications
SIM5320A
• FCC
• PTCRB
• IC
• ROHS,
• REACH
SIM5320E
• CE
• GCF
• ROHS
• REACH
• NCC
• CCC
• CTA
SIM5320J(E)
• Telec
• JATE
|
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• Mic/Receiver **
• PCM **
|
|
Specifications for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
•WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL),Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application
|
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Support embedded Script Language
• LUA Script Language
• Embedded AT *
Specifications for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
|
|
Carrier Approvals
SIM5320A
• AT&T, Rogers
SIM5320E
• TIM, Orange, Vodafone
SIM5320J
• Docomo
SIM5320JE
• SoftBank
|
