- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
900MM*600MM
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
RdWorks
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
150 KG
-
Core Components:
-
Laser tube
-
Product name:
-

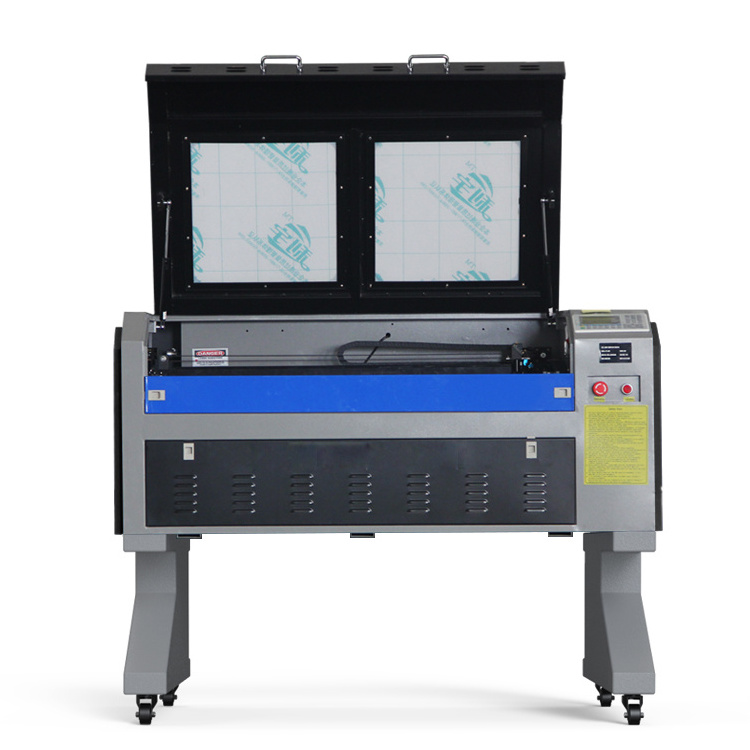

Co2 Laser Cutting Engraving Machine
-
Laser power:
-
60w/80w/100w/130w/150w
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Working table:
-
Honeycomb
-
Working area:
-
600*900mm
-
Laser head:
-
1 Head
-
Control system:
-
Ruida Control System
-
Driving system:
-
Stepper Motor
-
Cutting materials:
-
Acrylic Wood Mdf Plywood Plactical
-
Software:
-
Ruida Works
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-500mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
900MM*600MM
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
RdWorks
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
150 KG
-
Core Components:
-
Laser tube
-
Product name:
-
Co2 Laser Cutting Engraving Machine
-
Laser power:
-
60w/80w/100w/130w/150w
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Working table:
-
Honeycomb
-
Working area:
-
600*900mm
-
Laser head:
-
1 Head
-
Control system:
-
Ruida Control System
-
Driving system:
-
Stepper Motor
-
Cutting materials:
-
Acrylic Wood Mdf Plywood Plactical
-
Software:
-
Ruida Works
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface, U-Flash Disk Supported, Can work without a PC.
3. Air Assist, Remove heat and combustible gases from the cutting surface.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
9. Lsser position.
10. Emergency Stop Button.
11. Larger Size, 900*600mm working area.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
|
Machine Model |
KT-6090 |
|
Size |
145*75*60cm |
|
Laser-type |
Hermetic and detached CO2 laser tube |
|
Laser-power |
RECI Z2-90W / Z4-100W /Z6-130W for option |
|
Power |
ajustable (40 60 80 100W normal ones)
|
|
Cooling Mode |
Circulating-water-cooling |
|
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
|
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
|
Engraving Speed |
0-1200mm/s |
|
Cutting Speed |
0-500mm/s |
|
Repeating Accuracy |
±0.01mm |
|
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
|
Adjustable Up-down Distance of Laser Head |
30mm |
|
Working Travel Area |
90*60mm |
|
Working Voltage |
AC 100V/220V 50Hz/60Hz |
|
Working Environment |
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
|
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
|
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
More details of this Cystosepiment Wedding invitation card Cardboard wood,acrylic CO2 CNC laser engraver machine 6090
50w laser cutting machine cnc plasma cutting machine acrylic laser engraving cutting machine best price
Applicable Materials : Acrylic/ Plexiglas/ double color board/ ABS board/PVC board/ bamboo/ MDF/ wood/ paper / leather/ fabric/ wool/ rubber/ resin etc.
Applicable Industries: Advertisement( marks/ signs/ billboards/plates) bamboo & wood product/ art craft work/ ornament/ paper-cutting /cloth/ fabric/ hang bag/ glove/ garment/ leather/ embroidery/ shoemaking/ toy/ crystal/ packing & printing/ panel/ mould/ decoration/upholster and other related industries.
