Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1500mm*3000mm 2000mm*4000mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Qingdao
-
Brand Name:
-
Rainbow
-
Weight (KG):
-
10000 KG
-
Configuration:
-
Optional
-
Product name:
-
Laser Cutting Machine
-
Certification:
-
CE
-
Application material:
-
Metal Stainless Steel Aluminum
-
Color:
-
Support Customized Colors
-
Function:
-
Cutting Metal Materials
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Laser power:
-
1KW-20KW
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser head:
-
Chaoqiang
-
Laser source:
-
MXA RECI
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
120m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1500mm*3000mm 2000mm*4000mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Qingdao
-
Brand Name:
-
Rainbow
-
Weight (KG):
-
10000 KG
-
Configuration:
-
Optional
-
Product name:
-
Laser Cutting Machine
-
Certification:
-
CE
-
Application material:
-
Metal Stainless Steel Aluminum
-
Color:
-
Support Customized Colors
-
Function:
-
Cutting Metal Materials
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Laser power:
-
1KW-20KW
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser head:
-
Chaoqiang
-
Laser source:
-
MXA RECI
Why Choose Us

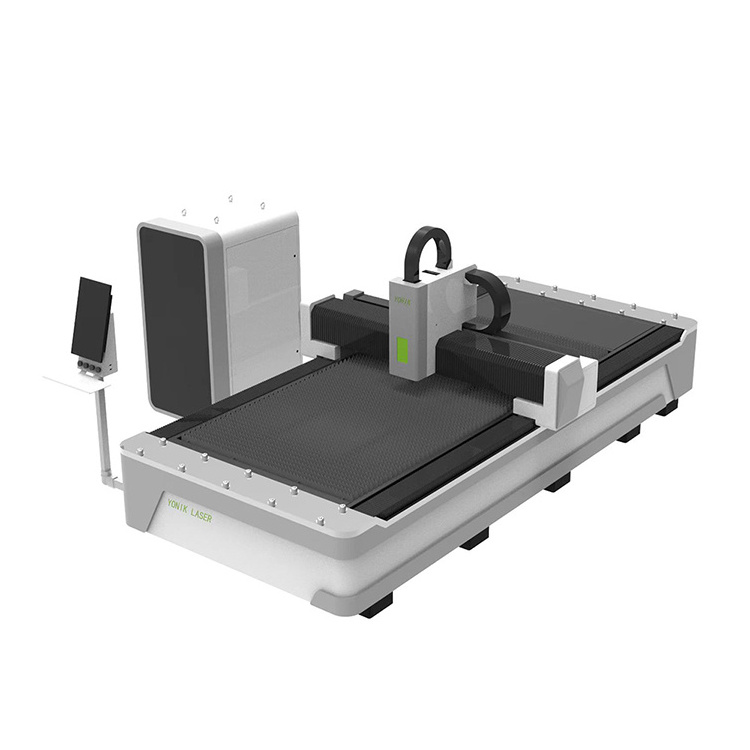

Products Description
|
Machine Structure
|
Pipe Welding Machine Body,Aviation Aluminum Beam
|
|
Working Area
|
3000*1500mm
|
|
Laser Source
|
BWT-1500
|
|
Laser Cutting Head
|
OSPRI-Manual focus
|
|
Transmission System
|
Dual Drive ,Precise Rack & Pinion
|
|
Guide Rail
|
Italy pek (copy)
|
|
Rack &Pinion
|
Taiwan Yyc (copy)
|
|
Speed Reducer
|
France motoreducer
|
|
Motor &Drives
|
Veichi Servo System
|
|
Control System
|
Cypcut 1000
|
Steel Plate Weld Machine Frame
It is welded by heavy steel plate, the current mainstream bed structure, and high stability;
Effect force annealing treatment, high mechanical strength, not easy to deform;
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;
The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.
Aviation Aluminum Gantry
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective
protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective
protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Independent Control Cabinet
Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the
lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature
damage to components in summer.
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the
lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature
damage to components in summer.
Transmission And Precision
Rainbow fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The
positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than
15 years.
positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than
15 years.
