Quick Details
-
Product Name:
-
Stainless Steel Oval Gear Edible Oil Flow Meter
-
Medium:
-
diesel oil, fuel oil etc.
-
Pipe Diameter:
-
DN10-DN200mm
-
Display:
-
Mechanical Display, LCD display, without display
-
Output:
-
Pulse Output, 4-20mA
-
Accuracy:
-
0.2%, 0.5%
-
Temperature Range:
-
-20-60 degree C, 60~250 degree C
-
Connection:
-
Thread, Flange
-
Filter:
-
with or without for chose
-
Types:
-
Light or heavy model for different application
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CLC-B
-
Product Name:
-
Stainless Steel Oval Gear Edible Oil Flow Meter
-
Medium:
-
diesel oil, fuel oil etc.
-
Pipe Diameter:
-
DN10-DN200mm
-
Display:
-
Mechanical Display, LCD display, without display
-
Output:
-
Pulse Output, 4-20mA
-
Accuracy:
-
0.2%, 0.5%
-
Temperature Range:
-
-20-60 degree C, 60~250 degree C
-
Connection:
-
Thread, Flange
-
Filter:
-
with or without for chose
-
Types:
-
Light or heavy model for different application

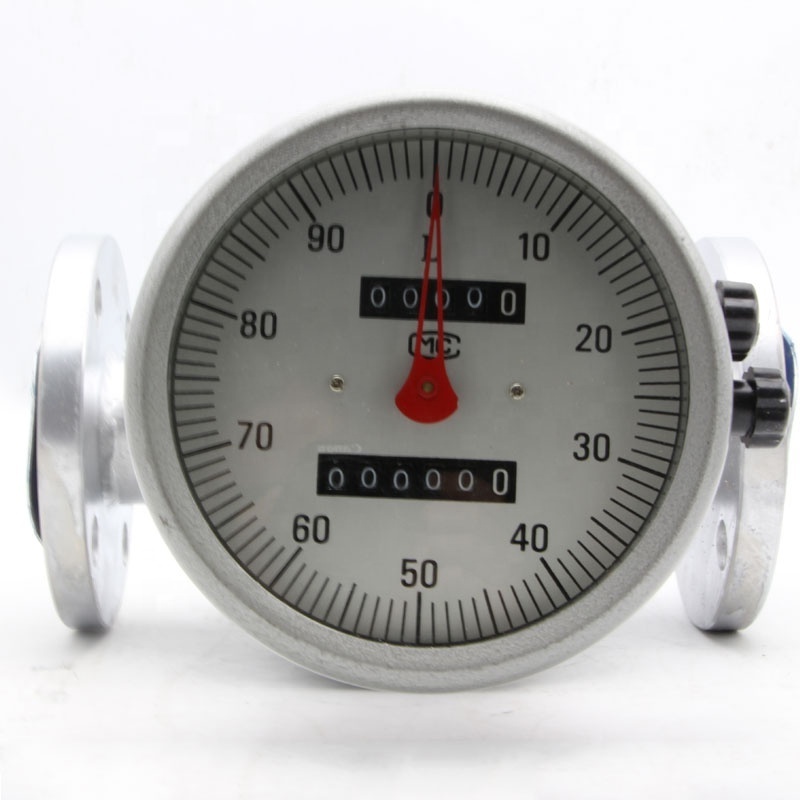

Stainless Steel Oval Gear Edible Oil Flow Meter
Technical Data
|
CLC-B Stainless Steel Oval Gear Flow Meter |
|
|
Accuracy |
±0.5%, ±0.2% |
|
Medium |
Diesel oil, fuel oil, heavy oil, all kinds of oil and like asphalt high viscosity liquid (within 2~200 mpa.s) |
|
Display |
Mechanical, LCD/LED for optional |
|
Output |
Pulse output, 4-20mA or without output for optional |
|
Communication |
RS485, HART |
|
Pressure |
1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa |
|
Power Supply |
DC12V, DC24V or 3.6V battery |
|
Operating Temperature |
-20℃~+100℃ |
|
Material |
cast iron, cast steel, stainless steel |
|
Install Way |
Thread, flange |
|
Explosion-proof |
Ex d II BT4 |
|
Grade |
IP65 (higher grade can be customized) |
