- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
320 - 500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fangyuan
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
600*500*1000mm
-
Weight (KG):
-
320 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
High capacity universal leaf crusher tea leaf coarse crusher machine
-
Model:
-
CSJ-P30/40/60/80/100
-
Function:
-
Make Dry Particle
-
Spindle Speed:
-
500 r/min
-
Feeding size:
-
≤100mm
-
Output Size:
-
2-20 mm
-
Production Capacity:
-
50-1200 kg/h
-
Motor Power:
-
4 kw
Quick Details
-
Output (kg/h):
-
50 - 200 kg/h
-
Feeding Size (mm):
-
10 - 100 mm
-
Output Size (mesh):
-
2 - 20 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
320 - 500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fangyuan
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
600*500*1000mm
-
Weight (KG):
-
320 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
High capacity universal leaf crusher tea leaf coarse crusher machine
-
Model:
-
CSJ-P30/40/60/80/100
-
Function:
-
Make Dry Particle
-
Spindle Speed:
-
500 r/min
-
Feeding size:
-
≤100mm
-
Output Size:
-
2-20 mm
-
Production Capacity:
-
50-1200 kg/h
-
Motor Power:
-
4 kw

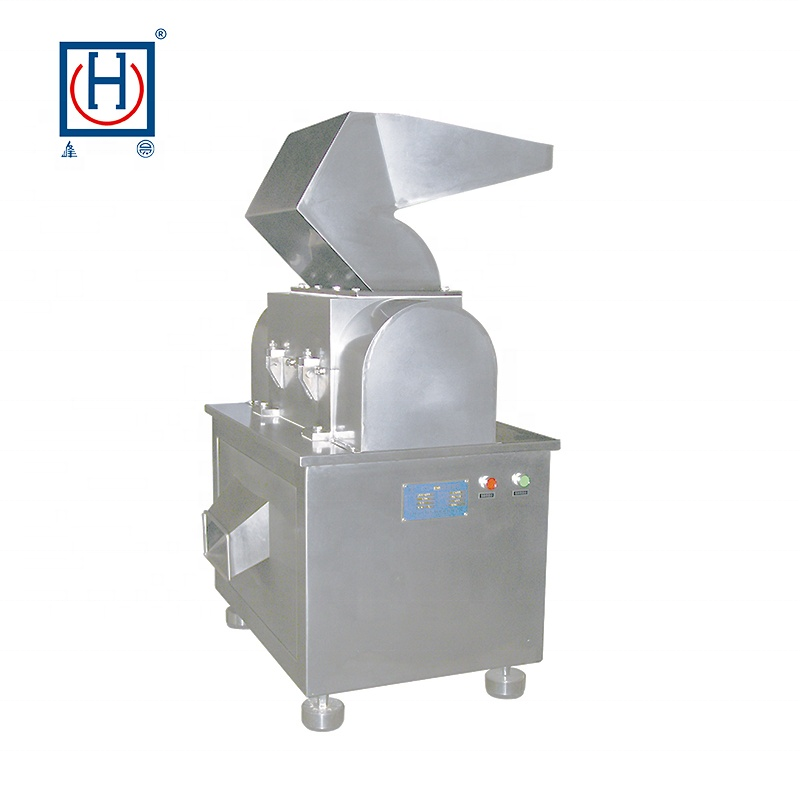

High capacity universal leaf crusher tea leaf coarse crusher machine
Product Description
This machine adopts horizotal crushing, not affected by material viscosity, hardness, softness, etc, the limits of any material which has better crushing effect. It can be used to crush dry spice, food, wood, medicine, tree root, plastic, copper wire, etc..
|
Main Product
|
High capacity universal leaf crusher tea leaf coarse crusher machine
|
|
|
|
|
||||
|
Model
|
CSJ-P30
|
CSJ-P40
|
CSJ-P60
|
CSJ-P80
|
CSJ-P100
|
||||
|
Production Capacity(kg/h)
|
50-200
|
100-500
|
150-700
|
200-1000
|
250-1200
|
||||
|
Spindel Speed(r/min)
|
500
|
500
|
500
|
400
|
320
|
||||
|
Feeding Size (mm)
|
≤100
|
≤300
|
≤400
|
≤500
|
≤600
|
||||
|
Output Size (mm)
|
2-20
|
2-20
|
2-20
|
2-20
|
2-20
|
||||
|
Motor Power (kw)
|
4
|
5
|
11
|
18.5
|
30
|
||||
|
Overall Dimension(mm)
|
600*500*1000
|
700*800*1100
|
890*900*1600
|
1285*1080*1700
|
1480*1200*1850
|
||||
|
Weight(kg)
|
320
|
500
|
620
|
1000
|
1200
|
||||
Main Features:
1. Machine materials adopt SUS 304 or 316L to meet GMP standards.
2. Closed operating structure can keep material clean and hygiene.
3. Changeable filter screen used to get a final specific size range from 0.5mm--20mm..
4. Can handle heat sensitive and hygroscopic materials.
5. Automatic dust collector device is available for a rigid dust-free workshop and can effectively recycle fine powder.
1. Machine materials adopt SUS 304 or 316L to meet GMP standards.
2. Closed operating structure can keep material clean and hygiene.
3. Changeable filter screen used to get a final specific size range from 0.5mm--20mm..
4. Can handle heat sensitive and hygroscopic materials.
5. Automatic dust collector device is available for a rigid dust-free workshop and can effectively recycle fine powder.
Details Images
Standard Structure
Table Structure
Crushing Part
Moving blades and fixed blander impact and shear toget the make material process in a small size.
Sieve Mesh
Used to get a final specific size range from 0.5mm-20mm.
With dust collector
Suitable for dust-free workshop.
Product Application
CSJ-P Series coarse crusher machine is applied for industries such as chemicals, metallurgy and foodstuff.
It is used as specialized equipment for roughly crushing material in previous process, and can crush hard and tough material like plastics and steel wire. Especially it is not limited by glutinousness , hardness, softness or fiber shape of material and has good crushing effect to all materials.
Packing & Delivery
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
