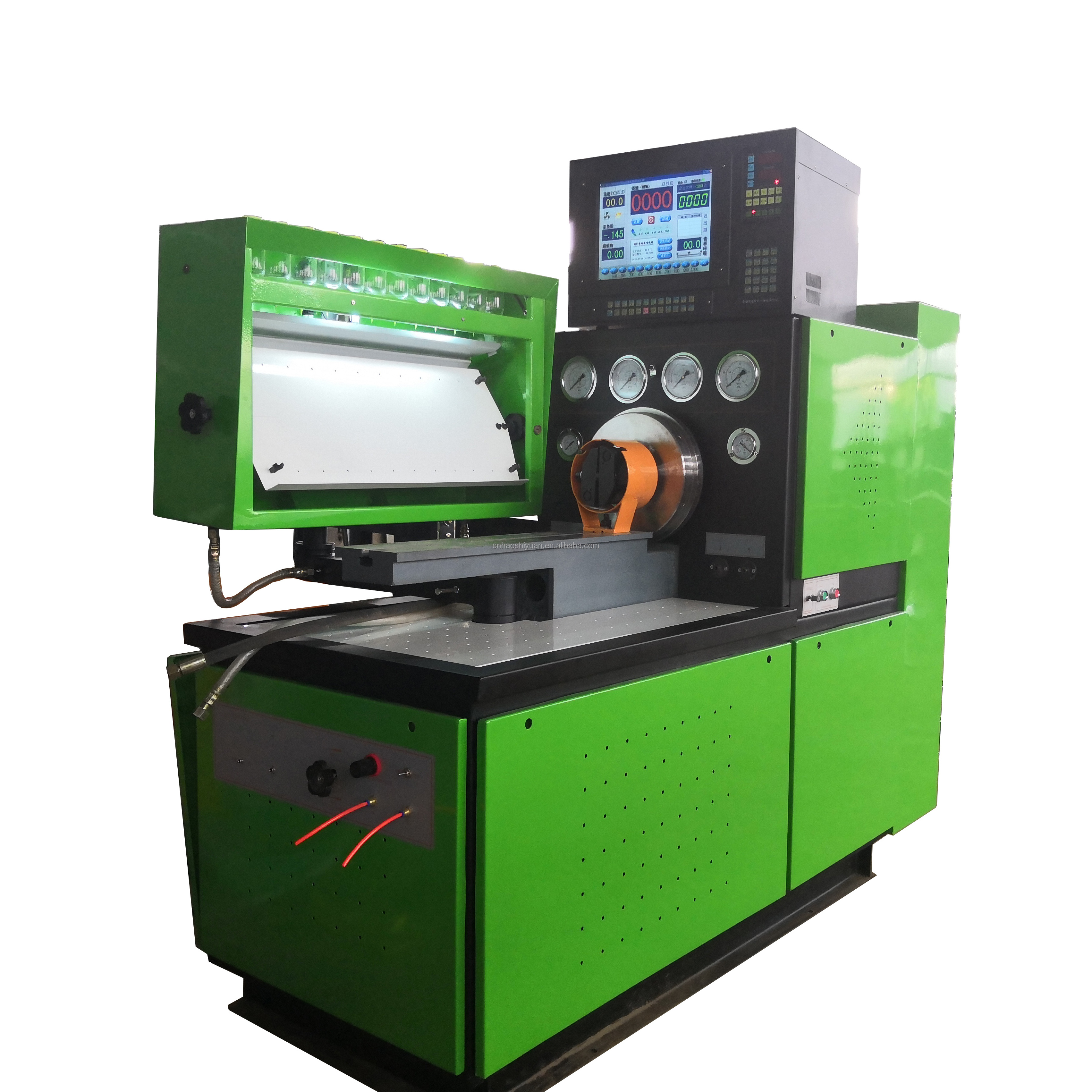

BD960-CCIT diesel fuel injection pump test bench adopts industrial pc with color CRT, it is the newly researched device for the direction of high power and environment protection.
It has human-machine interface, digital control of rpm, temperature, pressure, diesel fuel pump technical parameter etc. and prints synchronously.
It is operated easily and quickly and human-machine dialog realized.
The test bench is installed with high quality frequency conversing device and cast-iron based supper size bed.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Haoshiyuan
-
Model Number:
-
BD960-CCIT
-
Product name:
-
BD960-CCIT Diesel Pump Test Bench For Sale
-
Application:
-
Diesel Inline Pump
-
Power supply:
-
AC 3Phase 418V 380V 220V / 50 HZ 60HZ or on request
-
Color:
-
Yellow or Green or on request
-
System Language:
-
Chinese, English, Russia
-
Certificate:
-
CE ISO BV
-
Temperature stabilization:
-
40±2℃
-
Feed pressure:
-
0~0.4MPa (low), 0~4MPa (high)
-
Air pressure (MPa):
-
-0.03~0.3
Quick Details
-
Warranty:
-
12 month, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Haoshiyuan
-
Model Number:
-
BD960-CCIT
-
Product name:
-
BD960-CCIT Diesel Pump Test Bench For Sale
-
Application:
-
Diesel Inline Pump
-
Power supply:
-
AC 3Phase 418V 380V 220V / 50 HZ 60HZ or on request
-
Color:
-
Yellow or Green or on request
-
System Language:
-
Chinese, English, Russia
-
Certificate:
-
CE ISO BV
-
Temperature stabilization:
-
40±2℃
-
Feed pressure:
-
0~0.4MPa (low), 0~4MPa (high)
-
Air pressure (MPa):
-
-0.03~0.3
Products Description
China BD960-CCIT New model of 12PSB diesel fuel injection pump test bench
Parameter:
1. Adjustable rotation speed range: 0~4000RPM;
2. Double series of graduates: 45CC and 150CC
3. Volume of oil tank: 60L;
4. Temperature stabilization: 40±2℃;
5. Test oil filtering unit: 5μ;
6. DC. Supply: 12/24V;
7. Feed pressure: 0~0.4MPa (low), 0~4MPa (high);
8. Air pressure (MPa): -0.03~0.3;
9. Rack travel range: 0~25mm;
10. 3-phase power supply: 380V/50Hz or on request;
11. Flywheel inertia’s moment: 0.8kg·m2;
12. Center height: 125mm;
13. Output power: 11kw etc.
14. Overall dimensions (mm): 2100×850×1700;
15. Net weight (kg): 800kg.
1. Adjustable rotation speed range: 0~4000RPM;
2. Double series of graduates: 45CC and 150CC
3. Volume of oil tank: 60L;
4. Temperature stabilization: 40±2℃;
5. Test oil filtering unit: 5μ;
6. DC. Supply: 12/24V;
7. Feed pressure: 0~0.4MPa (low), 0~4MPa (high);
8. Air pressure (MPa): -0.03~0.3;
9. Rack travel range: 0~25mm;
10. 3-phase power supply: 380V/50Hz or on request;
11. Flywheel inertia’s moment: 0.8kg·m2;
12. Center height: 125mm;
13. Output power: 11kw etc.
14. Overall dimensions (mm): 2100×850×1700;
15. Net weight (kg): 800kg.
|
Adjustable cylinders
|
Output power(Kw)
|
RPM
|
Rpm pre-set
|
Temperature control system
|
Positive pressure system
|
Negtive
pressure system |
|
12
|
11 |
0-4000
|
√
|
√
|
√
|
√
|
|
Air supply
|
DC power supply
|
internal pressure of VE pump
|
Oil return of VE pump
|
travel of tooth bar
|
Advanced angle
|
Capability with pump type
|
|
√
|
√
|
√
|
√
|
√
(On request) |
√
(On request) |
All in- line and rotary pumps
|
Function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5.Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke
13. Oil lubricate(on request)
14.Cast iron base(on request)
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5.Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke
13. Oil lubricate(on request)
14.Cast iron base(on request)
Advantage
1. human-machine interface, digital control of rpm, temperature, pressure
2. is installed with high quality frequency conversing device and cast-iron based supper size bed
3. Provide pressure overload protect
4. operated easily and quickly and human-machine dialog realized
5. Injection time can be set.
6. Protection function of short-circuit.
7. Precise measurement, easy operation, low noise.
2. is installed with high quality frequency conversing device and cast-iron based supper size bed
3. Provide pressure overload protect
4. operated easily and quickly and human-machine dialog realized
5. Injection time can be set.
6. Protection function of short-circuit.
7. Precise measurement, easy operation, low noise.
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
