Quick Details
-
Model Number:
-
EI01
-
Type:
-
Infrared sensor exit button
-
Power:
-
10ma
-
Sensing Range:
-
1-10CM
-
Contact Rating:
-
3A@36VDC Max
-
Output Contact:
-
NO/NC/COM
-
Size:
-
30*28*28mm
-
Certification:
-
CE
Quick Details
-
Voltage:
-
12-24V universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yistar
-
Model Number:
-
EI01
-
Type:
-
Infrared sensor exit button
-
Power:
-
10ma
-
Sensing Range:
-
1-10CM
-
Contact Rating:
-
3A@36VDC Max
-
Output Contact:
-
NO/NC/COM
-
Size:
-
30*28*28mm
-
Certification:
-
CE

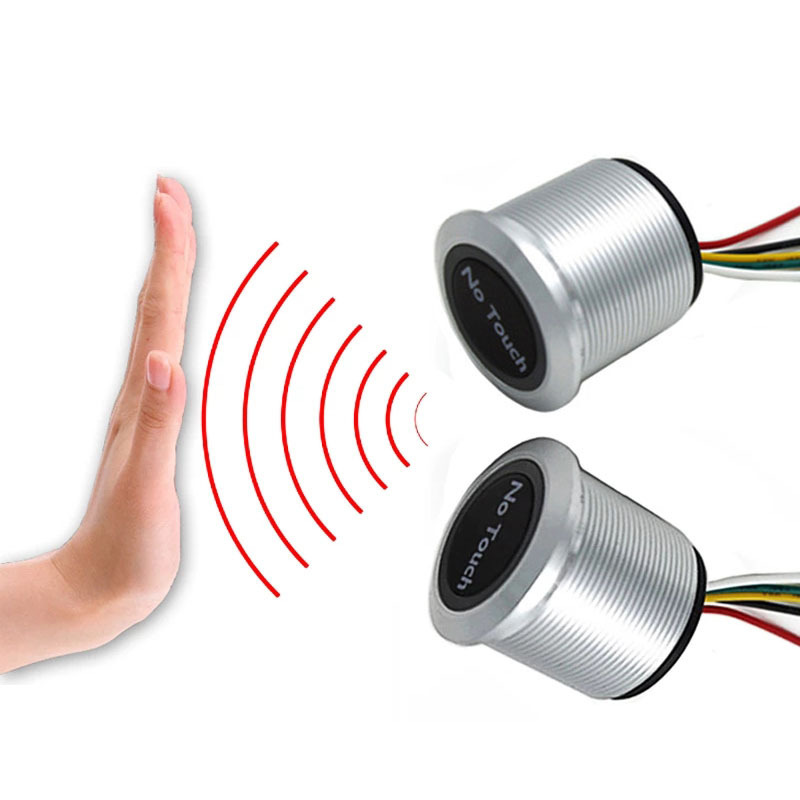

Product Description:
Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Specification:
1.Metal Panel with Elegant Style
2.1000000 Cycles tests
3.Three Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control
5.One exit button per box , weight 0.03KG
6.Operating temp :-10~+55°C(14-131F)
7.Operating Humidity :0-95% (non- condensing)
8.Dimensions :30*28*28mm
9.Detection range:0.1-10cm
10.White LED indicator:Power OFF
11.Blue LED indicator:Power ON(standby)
12.green LED indicator:Power ON(inductive)
13.Power: 12V-24VDC
14.Contact Rating: 12-24V,3A
