Quick Details
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

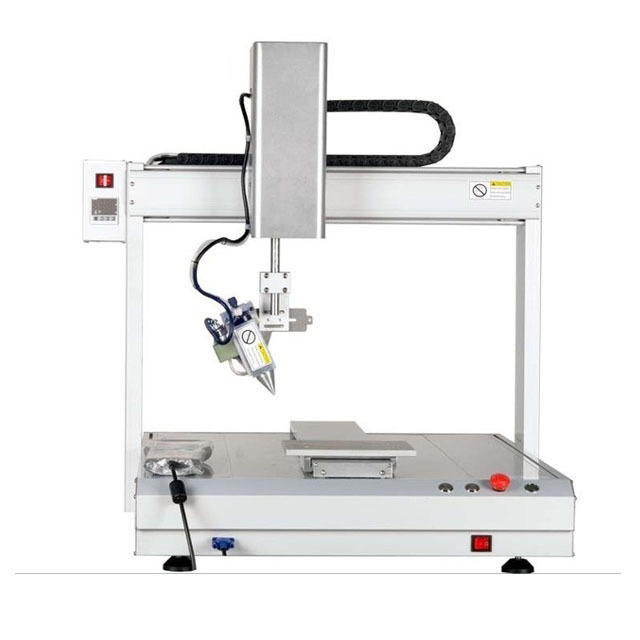

IC bonding machine with 3 axis for glue epoxy adhesive dispensing
-
Dispensing accuracy:
-
+/- 0.015mm
-
XY/Z speed:
-
Max:800/500 (mm/s)
-
X/Y/Z Working Range:
-
X400mm*Y400mm*Z100mm
-
Workpiece Payload:
-
Y axis16kgs /Z axis 8kgs
-
Motion /Drive System:
-
Servo Motor, Ball Screw, Linear Slide
-
Positioning:
-
300,000 Resolution CCD Vision Camera
-
Control Method:
-
Industrial Computer + Motion Controller + LCD Display
-
Memory Capacity:
-
1000 Programs - Unlimited (Data Storage via USB)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINTAI
-
Weight (KG):
-
45
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
IC bonding machine with 3 axis for glue epoxy adhesive dispensing
-
Dispensing accuracy:
-
+/- 0.015mm
-
XY/Z speed:
-
Max:800/500 (mm/s)
-
X/Y/Z Working Range:
-
X400mm*Y400mm*Z100mm
-
Workpiece Payload:
-
Y axis16kgs /Z axis 8kgs
-
Motion /Drive System:
-
Servo Motor, Ball Screw, Linear Slide
-
Positioning:
-
300,000 Resolution CCD Vision Camera
-
Control Method:
-
Industrial Computer + Motion Controller + LCD Display
-
Memory Capacity:
-
1000 Programs - Unlimited (Data Storage via USB)
Products Description
Products Parameters
|
Model
|
JTS-3/4/5/6/7 Glue/Adhesive Dispensing Robot
|
|
|
||
|
Power
|
AC 110-220V AC
|
|
|
||
|
Controllable Axis
|
3
|
|
|
||
|
Movable range
|
X
|
300/400/500/600/700mm
|
|
||
|
|
Y
|
300/400/500/600/700mm
|
|
||
|
|
Z
|
100mm
|
|
||
|
Max moving speed
|
X
|
600mm/s
|
|
||
|
|
Y
|
600mm/s
|
|
||
|
|
Z
|
400mm/s
|
|
||
|
Repeatability accuracy
|
±0.02 mm
|
|
|
||
|
Air pressure
|
0.5 ~ 0.7 Mpa
|
|
|
||
|
Programs Type
|
Teach Pandent
|
|
|
||
|
Storage for Programs
|
Up to 100 Programs, single Programs up to 1000 points
|
|
|
||
|
Working Temperature
|
0-40℃
|
|
|
||
|
Working Humidty
|
20%-90%(no condensation)
|
|
|
||
|
Weight
|
44/60/65/72/80 kg
|
|
|
||
|
Size
|
516x610x596 / 616x610x696 / 716x610x796 / 816x610x896 / 916x610x996 mm
|
|
|
||
Details Images
