Quick Details
-
Max. Lifting Height:
-
12m
-
Span:
-
3~30m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongye
-
Weight (KG):
-
500 kg
-
Product name:
-
Best Foundation 0.5T-10T Cantilever Jib Crane
-
Type:
-
Slewing Arm Crane
-
Lifting mechanism:
-
Elctrical Hoist
-
Crane feature:
-
Popular Fixed Pillar Rotatory
-
Control method:
-
Remote Control
-
Item:
-
Model Column Mounted Jib Crane
-
Rotation angle:
-
180 /270 /360
-
Color:
-
Customer's Requirements
-
Hoisting mechanism:
-
Hoist Electric
-
Power Source:
-
3 Phase 380V 50hz
Quick Details
-
Application:
-
application
-
Rated Loading Capacity:
-
500-5000kg
-
Rated Lifting Moment:
-
50KN
-
Max. Lifting Height:
-
12m
-
Span:
-
3~30m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongye
-
Weight (KG):
-
500 kg
-
Product name:
-
Best Foundation 0.5T-10T Cantilever Jib Crane
-
Type:
-
Slewing Arm Crane
-
Lifting mechanism:
-
Elctrical Hoist
-
Crane feature:
-
Popular Fixed Pillar Rotatory
-
Control method:
-
Remote Control
-
Item:
-
Model Column Mounted Jib Crane
-
Rotation angle:
-
180 /270 /360
-
Color:
-
Customer's Requirements
-
Hoisting mechanism:
-
Hoist Electric
-
Power Source:
-
3 Phase 380V 50hz

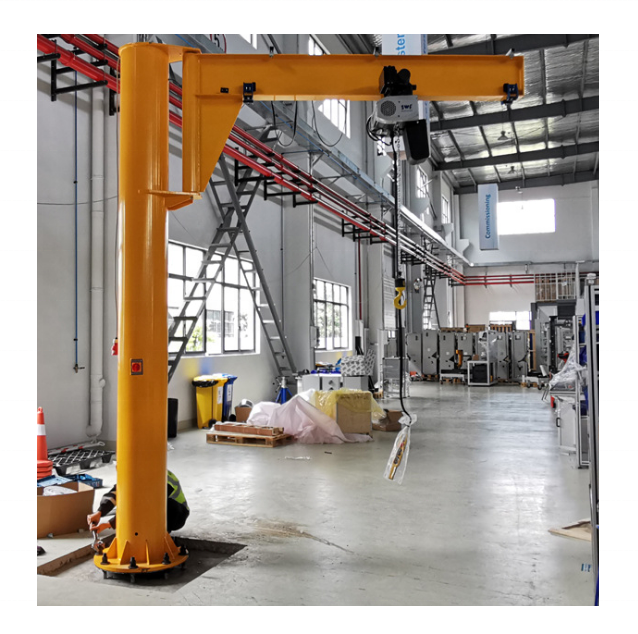

BZD Model Jib Crane is a kind of light crane using with PK type electric chain hoist or CD, MD electric hoist. It consists of the column, the rotating arm,the cantileverdrive unit and hoists. The lower end of the column is fixed by anchor bolts in the concrete foundation. The boom slewing is driven by motor driving the reducer. The hoist runs back and forth on the cantilever beam.BZD Model Jib Crane has advantages of simple structure, easy operation, small space using, large working range. It is widely used in lifting materials in production lines of machinery manufacturing, automotive making and shipbuilding. It is being used in warehouses, docks, laboratories and other occasions. It is a ideal lifting equipment for the enterprises to improve efficiency and working conditions.BZD Model Jib Cranes are light and intermediate working level, rated workload has 0.25t, 0.5t, 1t, 2t, 3t, 5t with total six specifications. According to job specifications need the users can choose different types of cranes, lifting speed and running speed. The machine has two forms of manipulation:motor-driven rotation and manual rotation. The rotation angle of the rotating arm needs to be selected according to the use of premises such as 180 °, 270 °, 345 °, 360 °.
Product parameters
| Model | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | |
| Rated capacity | t | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | m | 3 | 4 | |||
| Max. working range | m | 4 | 3 | |||
| Max. turning radius | m | 5 | 4.5 | |||
| Max. lifting torque | tm | 3 | 5.2 | 8.5 | 12.2 | 18.8 |
| Rotation angle | ° | ≤360 | ||||
| Lifting speed | m/min | 8;8/0.8 | ||||
| Trolley travelling speed | m/min | 20 | ||||
| Rotation speed | r/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
| Weight | kg | 1000 | 1150 | 1350 | 3500 | 4500 |
advantage
1. Low maintenance and easy replacement, apply to a variety of working areas.
2. Available customize to meet needs on lifting capacity, rotating angle, JIB length or function, etc.
3. Shorten time and high efficiency, especially in smaller working conditions.
4. Accurate location and easy operation.
5. All designs conform to human engineering.
6. All parts are highly cost effective, highly standardized, with reliable quality and stable performance.
7. High quality and wide adaptation.
