wp transmission worm gear lifter worm gearbox and motor drive gear motor worm reducer screw jack gear box drive screw jack

wp transmission worm gear lifter worm gearbox and motor drive gear motor worm reducer screw jack gear box drive screw jack

FOB Reference Price: Get Latest Price

≥1 Pieces

US $26

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 10-500rpm

Place of Origin:: Zhejiang, China

Brand Name:: QILIAN

Color:: Customer Request

Housing Material:: Cast Iron

Shaft:: Inline

Heat treatment:: Quenching

Bearing material:: SKF,ZWZ

ratio:: 10,15,30

output shaft dia:: 12mm

weight:: 7kg

Warranty:: 1 Year

Packing:: Wooden Box

Quick Details

Gearing Arrangement:: Worm

Output Torque:: up to 5000Nm

Input Speed:: 750rpm -2000rpm

Output Speed:: 10-500rpm

Place of Origin:: Zhejiang, China

Brand Name:: QILIAN

Color:: Customer Request

Housing Material:: Cast Iron

Shaft:: Inline

Heat treatment:: Quenching

Bearing material:: SKF,ZWZ

ratio:: 10,15,30

output shaft dia:: 12mm

weight:: 7kg

Warranty:: 1 Year

Packing:: Wooden Box

Specification

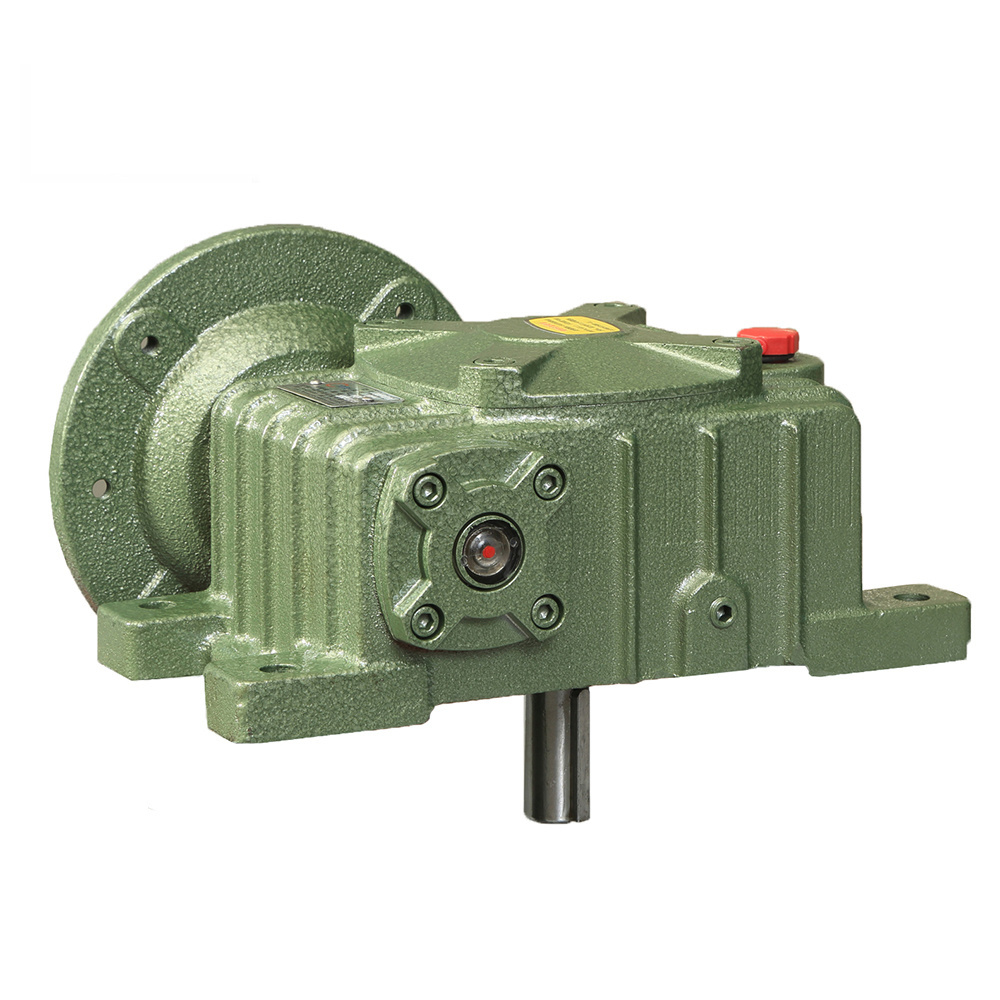

WP stepper motor worm gear/worm gear speed reducer/AC worm gearbox
1.Widely used in light industry, good resistance to wearing, with high precision in dimensions, lower noise, advanced centric

running castings
2. The housing is of strong hardness, compact structure
3. Stable transmission, low vibration, large ratio, canbe matched with various machines

1.Housing:iron cast

2. low noise(<50DB)
3.Model:WPA 40-250,Ratio:10 to 60
4.Efficient and safe operating
5.ISO9001,Factory price,OEM

6.Technology Data:

Type:	gearbox WPA
Model:	WPA 40-250
Ratio:	1:10,15,20,25,30,40,50,60
Color:	Blue/Silver Or On Customer Request
Material:	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK SKF
Warranty:	1 Year
Input Power:	0.06KW,0.09KW
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant:	Synthetic&Mineral
