Quick Details
-
Voltage:
-
380
-
Dimension(L*W*H):
-
5170x5200x2300
-
Motor Power (kW):
-
27
-
Weight (T):
-
15
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
turret punch Machine
-
Application:
-
Metal Sheet Stamping
-
Keyword:
-
turret punch
-
Brand:
-
Rongwin
-
Color:
-
Optional Color
-
Axis:
-
5(X,Y,T,C,A)
-
Model:
-
ER300/ES300/T30
-
Function:
-
Steel Metal Punching
-
Power(W):
-
27KW
-
Material:
-
Steel Material
Quick Details
-
Slide Stroke (mm):
-
32
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Rongwin
-
Voltage:
-
380
-
Dimension(L*W*H):
-
5170x5200x2300
-
Motor Power (kW):
-
27
-
Weight (T):
-
15
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
turret punch Machine
-
Application:
-
Metal Sheet Stamping
-
Keyword:
-
turret punch
-
Brand:
-
Rongwin
-
Color:
-
Optional Color
-
Axis:
-
5(X,Y,T,C,A)
-
Model:
-
ER300/ES300/T30
-
Function:
-
Steel Metal Punching
-
Power(W):
-
27KW
-
Material:
-
Steel Material
Product Description

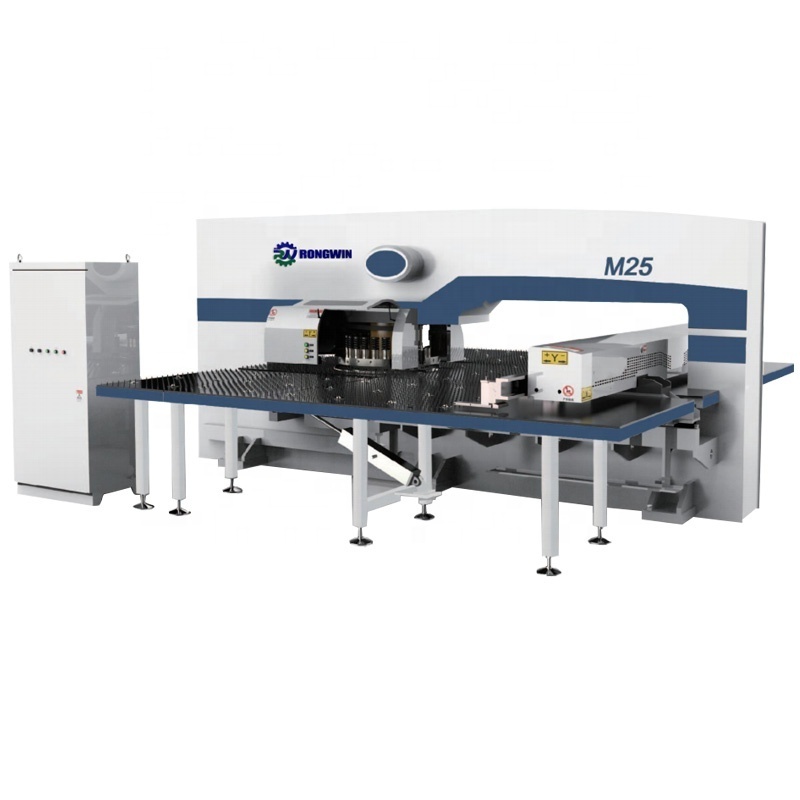

CNC Turret Punch Press Tooling Thick Turret Tools for Punching Machine Tool for Sale
The all-electric servo CNC turret punch press adopts servo motor direct-drive main drive, which retains the advantages of simple, mature and reliable mechanical main drive structure, and has better characteristics than hydraulic main drive. It has remarkable features, powerful functions, and high efficiency. , energy saving, noise reduction, high precision and other functions, can realize punching, forming, rolling, lettering and other processes.
The nominal force is 300 kN, the processing plate size is 5000×1250□ 1500□ 2000□ (including one repositioning) mm, and the X, Y, C, T, A axes are controlled.
ER300 is a high-end CNC product developed by our company by introducing foreign advanced technology and combining our company's mature products. Fast, high efficiency features. Its accurate market positioning and mature and stable product performance are favored by the market.
Turret Layout
Detailed Images
The body adopt integrated fuselage, widened design, disposable welding, tempering, disposable forming.
Seamless Worktable
Seamless worktable design, brush & steel ball combined,
when the plate moved, it can avoid the plate and the
worktable make a collision, guide rail, ball screw dust-proof
protection.
Folding Worktable
Side assist platform adopt cylinder control seamless design, convenient for change the tooling.
Turret Structure
The turret is made of 40Cr, completed in large processing center.
Clamp
With clamp automatic avoid collision function, can make no dead area for punching on sheet.
System
The system can automatically search, to select the most suitable tool to processing,and display stamping time, processing capacity,die life (punches), etc.
The rotating station is a unique worm gear structure.
Beam
Carriage and beam integrated design, accurate positioning, moving more smoothly, to eliminate the X, Y-axis dynamic offset case.
|
Quantity(Sets)
|
1-5
|
>5
|
|
Est. Time(days)
|
30
|
Negotiable
|
