Quick Details
-
Table Travel (Y) (mm):
-
450
-
Dimension(L*W*H):
-
2100X1800X1960mm
-
Weight (T):
-
3.7 T
-
Positioning Accuracy (mm):
-
0.005
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
3.7Kw
-
Max. Table Load(kg):
-
500 kg
-
Place of Origin:
-
shandong
-
Brand Name:
-
kasen
-
Voltage:
-
380V/50Hz
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
13 months
-
Product name:
-

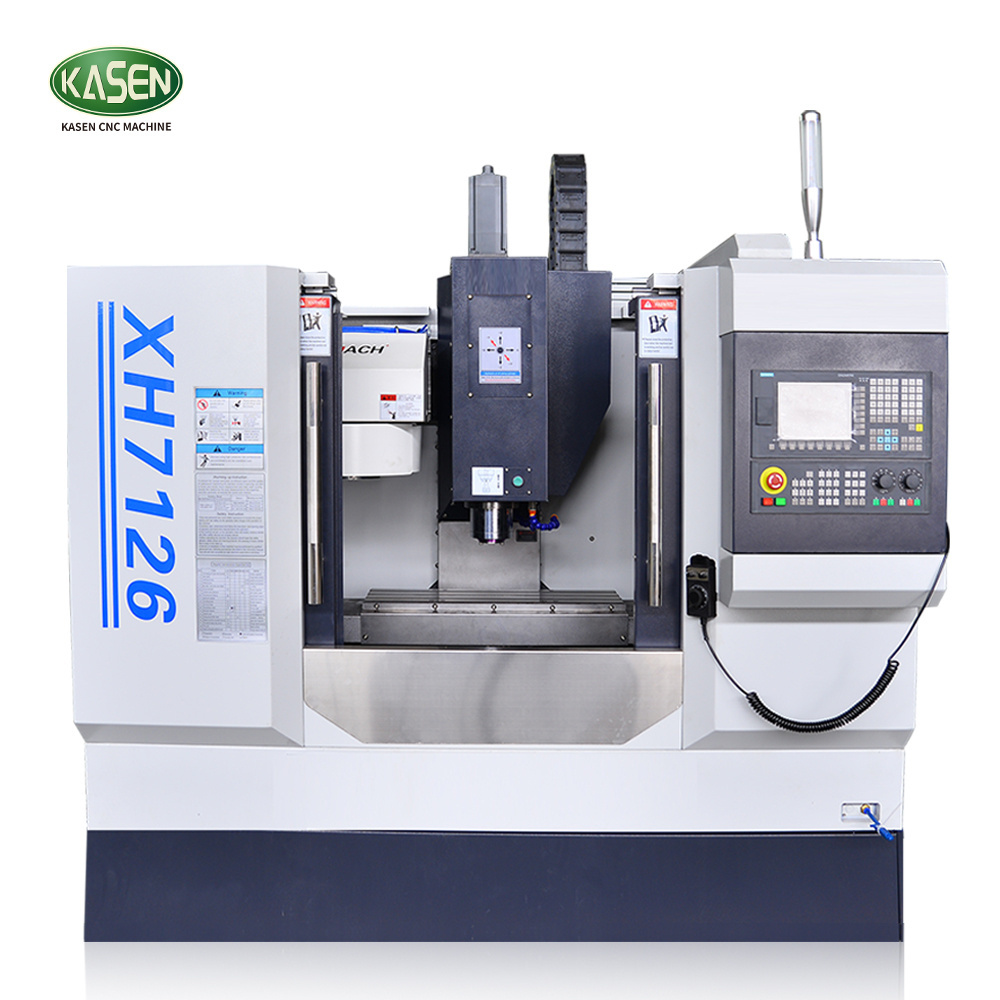

Vertical Machining Center XH7126
-
Product type:
-
Cnc 3 Axis Machine
-
Keywords:
-
Vmc Machine Center XH7126
-
Machine Type:
-
Vertical CNC Milling Machine
-
Control system:
-
SIEMENS GSK KND FANUC MITSUBISHI(optional)
-
Function:
-
Machining Metal
-
Application:
-
General Machinery Processing
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
CNC or Not:
-
CNC Systemn
-
Color:
-
Custom-made
Quick Details
-
Table Size (mm):
-
800X260mm
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
450
-
Table Travel (Y) (mm):
-
450
-
Dimension(L*W*H):
-
2100X1800X1960mm
-
Weight (T):
-
3.7 T
-
Positioning Accuracy (mm):
-
0.005
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
3.7Kw
-
Max. Table Load(kg):
-
500 kg
-
Place of Origin:
-
shandong
-
Brand Name:
-
kasen
-
Voltage:
-
380V/50Hz
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
13 months
-
Product name:
-
Vertical Machining Center XH7126
-
Product type:
-
Cnc 3 Axis Machine
-
Keywords:
-
Vmc Machine Center XH7126
-
Machine Type:
-
Vertical CNC Milling Machine
-
Control system:
-
SIEMENS GSK KND FANUC MITSUBISHI(optional)
-
Function:
-
Machining Metal
-
Application:
-
General Machinery Processing
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
CNC or Not:
-
CNC Systemn
-
Color:
-
Custom-made
Features:
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5.Japanese NSk Bearing Germany R+W Coupling
6. Automatic Lubrication System
7.Chip Conveyor At Optional (According To Customer Requirements)
Optional Configuration:
System: Syntec,Siemens,Fanuc Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor
Oil-Water Separator
Air conditioner
Higher speed of Spindle
Application:
This Vmc Is Suitable For Mechanical Processing And Mold Making .And It Can Adapt To The Processing,Requirement From Rough Machining To Finish Machining .It Can Also Finish Many Working Procedures LikeMilling. ,Drilli.Tapping,Boring ,Etc.
This Vmc Is Suitable For Mechanical Processing And Mold Making .And It Can Adapt To The Processing,Requirement From Rough Machining To Finish Machining .It Can Also Finish Many Working Procedures LikeMilling. ,Drilli.Tapping,Boring ,Etc.
Main technical specifications:
|
Specificiton
|
XH7126
|
|
Worktable size (LXW)
|
800X260mm
|
|
T-slot (NXWXD)
|
3/14/80mm
|
|
X axis travel
|
450mm
|
|
Y axis travel
|
320mm
|
|
Z axis travel
|
450mm
|
|
Distance from spindle nose to worktable surface
|
90-470mm
|
|
Distance from spindle center to column
|
360mm
|
|
Rapid feed speed (X/Y/Z)
|
15/15/15 m/min.
|
|
Spindle taper
|
BT40
|
|
Spindle speed
|
6000rpm or 8000rpm
|
|
Main motor power
|
3.7Kw
|
|
Servo motor torque (X/Y/Z)
|
6/6/7.7 N.m
|
|
Overall size (LXWXH)
|
2100X1800X1960mm
|
|
Net weight
|
2400kg
|
