Quick Details
-
Output Level:
-
113dBuV(Fixed) 105dBuV(Adj.)
-
A/V Ratio:
-
-11 to -18dB(Adj.)
-
Output Frequency:
-
47-860MHz
-
Frequency Stability:
-
±5KHz
-
Video:
-
75Ω F-female
-
Input Level::
-
0.6-1.5Vp-p(87.5% Modulation)
-
Video C/N:
-
50dB
-
Hum/Noise::
-
-50dB
-
Modulation Range:
-
0~90%
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Model Number:
-
SFT161X
-
Output Level:
-
113dBuV(Fixed) 105dBuV(Adj.)
-
A/V Ratio:
-
-11 to -18dB(Adj.)
-
Output Frequency:
-
47-860MHz
-
Frequency Stability:
-
±5KHz
-
Video:
-
75Ω F-female
-
Input Level::
-
0.6-1.5Vp-p(87.5% Modulation)
-
Video C/N:
-
50dB
-
Hum/Noise::
-
-50dB
-
Modulation Range:
-
0~90%
-
Certification:
-
ce
Product Description

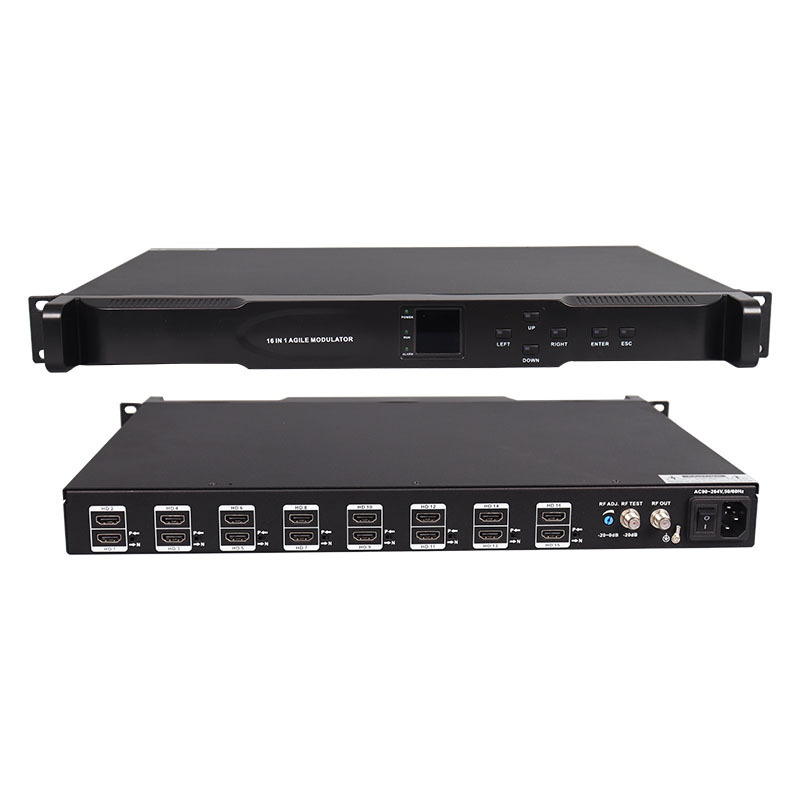

The SFT161X is developed specifically for the commercial AV distribution market. It takes in 16 HD signals and then modulates the HD signals into any analog channels, providing an easy way to distribute high definition signals to the old TV systems. With pre-programmed channel list and its agile ability, the operators can set up the modulator intuitively and easily.
Features
1. Converts HD video and audio signals to analogy NTSC or PAL channel
2. Rack mountable 1RU rack space with less space and less shipping cost
3. High picture quality thanks to the 16 HDMI input
4. Internal fans cooling system for long life span
2. Rack mountable 1RU rack space with less space and less shipping cost
3. High picture quality thanks to the 16 HDMI input
4. Internal fans cooling system for long life span
Specification
|
INPUT
|
|
|
||
|
Input Connector
|
HD*16
|
|
||
|
|
|
1920*1080_60P; 1920*1080_50P; 1920*1080_60i;
|
||
|
|
|
1920*1080_50i; 1280*720_60P; 1280*720_50P
|
||
|
OUTPUT
|
|
|
||
|
RF
|
Output Connector
|
F-Female
|
||
|
|
Output Frequency
|
45 ~ 870 MHz
|
||
|
|
Output Level
|
105dBμV
|
||
|
|
Adjust Range
|
0 ~ 20dB
|
||
|
|
Output-band Rejection
|
≥ 60dB
|
||
Product Packaging
