Quick Details
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Video technical support
-
Product Name:
-

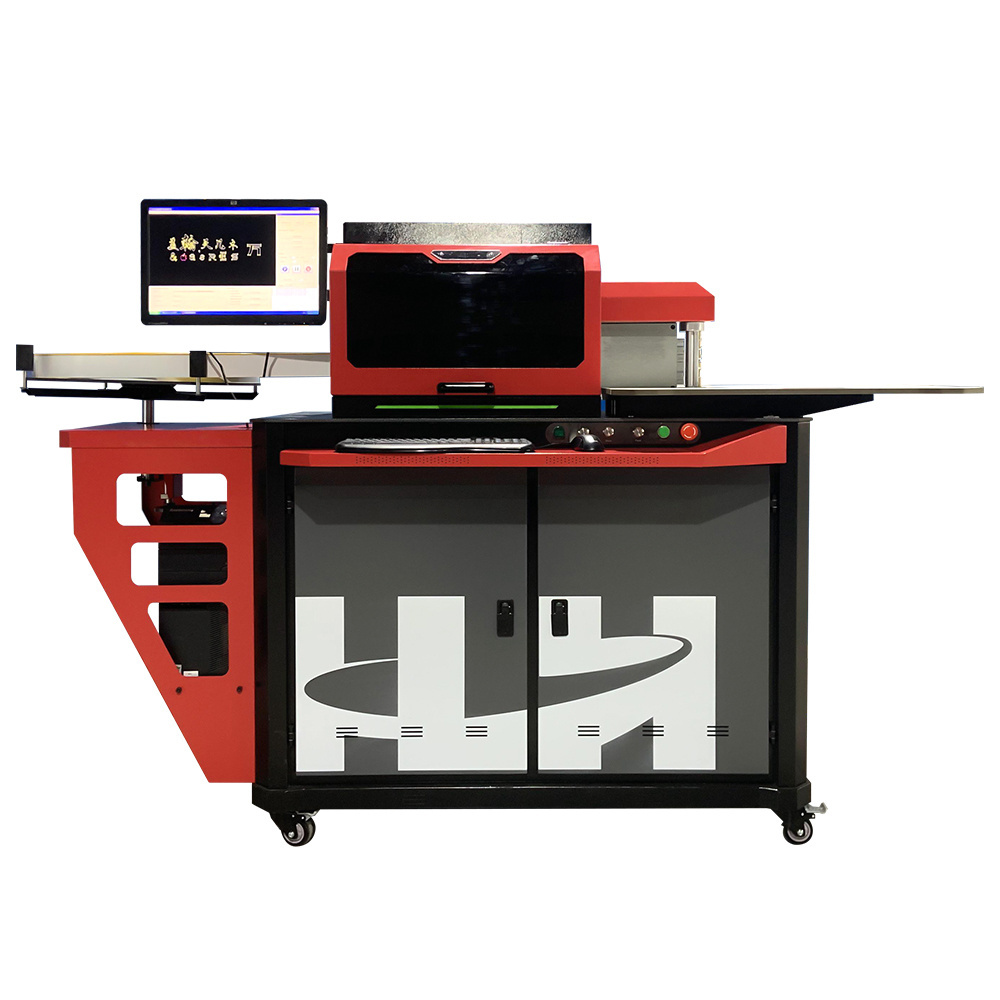

HH-NA130 Channel Letter Bending Machine
-
Applical Material:
-
Aluminum Coil,Aluminum Profile,Edge Folding Aluminum
-
Material Thickness:
-
0.3-1.2mm
-
Material width:
-
≤130mm
-
Slot angle:
-
45°-135°
-
Air Pressure:
-
0.6Mpa
-
Voltage:
-
220V
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HH Letter Bending Machine
-
Year:
-
2023
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Video technical support
-
Product Name:
-
HH-NA130 Channel Letter Bending Machine
-
Applical Material:
-
Aluminum Coil,Aluminum Profile,Edge Folding Aluminum
-
Material Thickness:
-
0.3-1.2mm
-
Material width:
-
≤130mm
-
Slot angle:
-
45°-135°
-
Air Pressure:
-
0.6Mpa
-
Voltage:
-
220V
Technical Parameters
|
Model
|
HH Letter Bending Machine
|
|
Working Principle
|
High accuracy auto feeding, auto bending
auto straightening, auto cutting |
|
Application Materials
|
Stainless Steel, Galvanized Sheet, Iron Sheet, Copper Metal, Aluminum Material, Such as Flat aluminum, edge aluminum,
rectangle/triangle aluminum, Aluminum Profile, Channellume |
|
Arc bending Torque Peak
|
>100Nm
|
|
Planer Slotted Torque Peak
|
>100Nm
|
|
Length Accuracy
|
0.1mm
|
|
Feeding Torque
|
>45Nm
|
|
Minimum Bending radius
|
≥3mm
|
|
Material Width
|
≤130mm/≤180mm
|
|
Material Thickness
|
0.3-1.2mm
|
|
Total Power
|
2000W
|
|
File format
|
Dxf , ai , plt
|
|
Machine size
|
1900*900*1600mm
|
|
Weight
|
500KG
|
|
voltage
|
220V
|
|
Air pressure
|
0.3-0.6Mpa
|
Main Features
1.Independent double cutters, double slotting systems.
2.The planer blade is made of hard synthetic gold, lower cost but better cutting stability.
3. The mechanism of double-cutter alternate arc-beating can work for bending much smaller radius, as well as to make more complicated fonts.
4. Double benders change freely; switch simply, no further testing on material replacement.
5. Precision milling cutter can swing all around, identify angle automatically and process all sizes of aluminum profiles.
6. Double copper benders, designed for various aluminum profiles, beat smaller radius and extrude bigger radius at higher speed.
2.The planer blade is made of hard synthetic gold, lower cost but better cutting stability.
3. The mechanism of double-cutter alternate arc-beating can work for bending much smaller radius, as well as to make more complicated fonts.
4. Double benders change freely; switch simply, no further testing on material replacement.
5. Precision milling cutter can swing all around, identify angle automatically and process all sizes of aluminum profiles.
6. Double copper benders, designed for various aluminum profiles, beat smaller radius and extrude bigger radius at higher speed.
7.Automatic cutting depth adjustment
Applications
Rimless Letters,Aluminum Edge Letters,Resin Luminous Letters,Super Letters(Liquid Acrylic Letters),Aluminum Profile Letters,Aluminum Letters with Sponge, High Polymer Luminous Letters,Side Luminous Letters,LED Words and Various Aluminum Luminous Letters,SS Letters
Certifications&company
WEIFANG NEW HH CORP
WEIFANG NEW HH are a Chinese supplier specializing in the export of advertising machinery and equipment. We mainly produce Letter Bending Machine, Acrylic Heat Bending Machine, etc. We also provide customers with CNC Router Machine, Co2 Laser Cutting Machine, aluminum coil and other advertising industry supporting products. Our customers It covers more than 100 countries in the world and has after-sales service in more than 30 countries. For advertising equipment, choose WEIFANG NEW HH!
Service&Traning
Our Service:Installation and Training
A.
Welcome customers to our factory for training. Our professional technicians will make direct and effective face-to-face training.
B. Our engineer will do an on-site training service at customers' factory.
C. We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
B. Our engineer will do an on-site training service at customers' factory.
C. We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
We will ensure our machines running well in customers factory
Package& Delivery
FAQ
1.what's the package?
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
