- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V 50hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Henger
-
Dimension(L*W*H):
-
1200*1000*1800mm
-
Weight:
-
100 KG
-
Certification:
-
CE, ISO CE
-
Product name:
-
Meat packing machine meat shrink with industrial metal detectors
-
Keyword:
-
Shrink film water dip machine
-
Feature:
-
Easy Opperation
-
Usage:
-
Heat shrink machine
-
Material:
-
Stainless Steel 304
-
Item:
-
Food Packer Machine
-
Function:
-
High Effieciency
-
Machine type:
-
Packing Machine
Quick Details
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Pneumatic
-
Voltage:
-
380V 50hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Henger
-
Dimension(L*W*H):
-
1200*1000*1800mm
-
Weight:
-
100 KG
-
Certification:
-
CE, ISO CE
-
Product name:
-
Meat packing machine meat shrink with industrial metal detectors
-
Keyword:
-
Shrink film water dip machine
-
Feature:
-
Easy Opperation
-
Usage:
-
Heat shrink machine
-
Material:
-
Stainless Steel 304
-
Item:
-
Food Packer Machine
-
Function:
-
High Effieciency
-
Machine type:
-
Packing Machine
Hot water shrink wrap machine meat chicken steam shrink tunnel meat packaging line
Henger company specializes in the production and design of meat food processing and packaging lines, providing a complete set of program design.
The whole line includes vacuum packaging machine, heat shrink machine, cooling air dryer, metal detector and weighing labeling machine.
Each line can be configured with different specifications of equipment according to customer requirements.
Vacuum packaging machine
Depending on the production line layout and equipment configuration, 1 to 2 operators are required;
The maximum speed of the machine for packaging cold meat can reach 2-3 cycles/min (the speed will vary according to the vacuum system configuration, product state (such as temperature, humidity));
Advanced vacuum technology can ensure that the ideal vacuum degree can be reached quickly, even for products with wet packaging;
Automatically transport the product into the vacuum chamber;
Pressurized sealing system (super sealing system). Greatly improve the sealing effect;
Convenient and easy to clean;
|
Machine size
|
2580mm×1120mm×1140mm
|
|
Exhaust volume
|
300m3/h
|
|
Power
|
7kw
|
|
Packaging slot size
|
1100mm×810mm×230mm
|

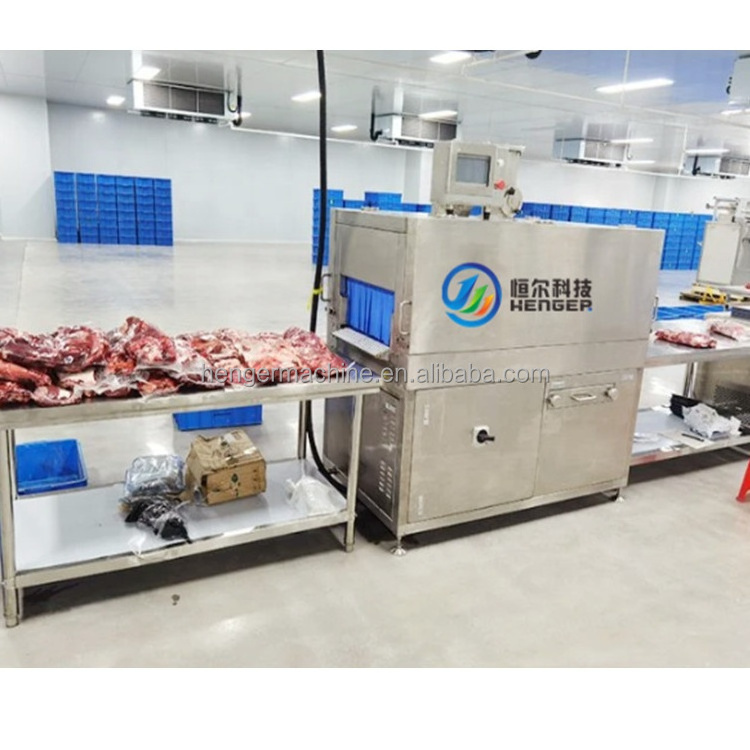

Tunnel heat shrinking machine
■ PLC touch screen control interface.
■ Automatic water level control with manual control main valve
■ Adjustable temperature control, automatic heating of water temperature
■ High temperature resistant pp conveyor belt
■ Frequency conversion speed regulation
■ Import/export are connected by polymer transition rollers
■ Adopt 6-stage steam curtain
■ One section of upper spray, one section of bottom spray
Cool air drying machine
■ Automatic water level control system with automatic water replenishment and water shortage protection functions
■ Water temperature real-time display system
■ The conveying speed can be adjusted by frequency conversion, and the speed can be set constant
■ Adopt POM conveyor belt
■ Import/export are connected by polymer transition rollers
■ Three-dimensional hot water spray system, the spray flow can be adjusted up and down
Metal detector
Detection method: electromagnetic induction
In-depth customization: testing can be customized according to customer product requirements and needs
Body material: 304 brushed stainless steel body
Operation mode: block diagram interface, flat key operation
Alarm mode: the conveyor belt stops and the buzzer sounds an alarm
Belt height from the ground: 700mm/800mm
Preset number of products: The optimal detection mode can be preset and numbered for up to 100 products
Protection class: IP-30 international standard
Weight and labeling machine
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. It can store 200 kinds of product detection data, which is convenient for users to call.
3. Online printing and labeling function.
4. Data external communication interface, which can be connected to other equipment in the production line (eg: labeling machine and inkjet printer).
