Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
High Gain 4G LTE External Mimo Panel Direccional Antenna GSM
-
Frequency range:
-
698MHz-960MHz/1710MHZ-2700MHz
-
Gain (dBi):
-
6-8dBi
-
VSWR:
-
≤2.0
-
Input Impedance(Ω):
-
50
-
Input Power(W):
-
50
-
Polarization:
-
Vertical
-
Lightning Protection:
-
DC Ground
-
Connector type:
-
2xN Female or request
-
Color:
-
White or request
Quick Details
-
Type:
-
2.4GHz & 5GHz Antenna
-
Brand Name:
-
chaowei
-
Model Number:
-
CW-FP024
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
High Gain 4G LTE External Mimo Panel Direccional Antenna GSM
-
Frequency range:
-
698MHz-960MHz/1710MHZ-2700MHz
-
Gain (dBi):
-
6-8dBi
-
VSWR:
-
≤2.0
-
Input Impedance(Ω):
-
50
-
Input Power(W):
-
50
-
Polarization:
-
Vertical
-
Lightning Protection:
-
DC Ground
-
Connector type:
-
2xN Female or request
-
Color:
-
White or request

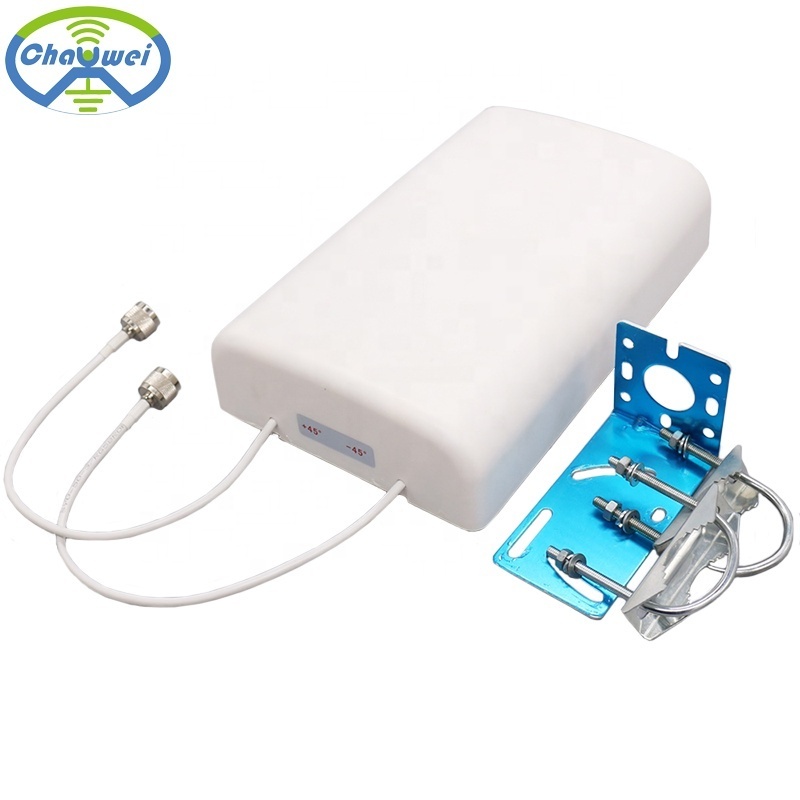

High Gain 4G LTE External Mimo Panel Direccional Antenna GSM
Product Description
|
Electrical Specifications |
|
| Product Name | High Gain 4G LTE External Mimo Panel Direccional Antenna GSM |
| Frequency range | 698MHz-960MHz/1710MHZ-2700MHz |
| Gain (dBi) | 6-8dBi |
| VSWR | ≤1.5 |
| Horizaontal Beam width(deg) | 61-82/63-87 |
| Vertical Beam width(deg) | 55-80/55-85 |
| Polarization | Vehicle |
| Max Power(W) | 50 |
| Lightning Protection | DC Ground |
| Connector type | 2xN Female or Requested |
| Mechanica Specifications | |
| Dimensions(mm) | 308x190x65 |
| Radom Material and color | ABS,White,RAL9003 |
| Mounting Kit | On-wall |
| Operation Temperature(℃) | -55~60 |
| Operational Humidity (%) |
<95 |
