Heat floor Mat, Heating floor panel, Home heating system

Heat floor Mat, Heating floor panel, Home heating system

FOB Reference Price: Get Latest Price

≥2000 Sheets

US $10

≥5000 Sheets

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Apartment

Design Style:: Modern

Material:: EPS

Place of Origin:: Jiangsu, China

Brand Name:: Feininger

Model Number:: FH-P16

Name:: EPS+HIPS underfloor heating panel

Color:: Blue/Yellow/Black/Green

Grooving diameter:: 10MM

Temperature limited:: -50.C,+75.C

Water absorption:: 0.5%

Compressive strength:: ≥ 200Kpa

Thermal conductivity:: ≤ 0.023W/M.K

Fireproof grade:: B1/B2

Size:: 1370*820*25mm

Quick Details

Warranty:: 5 years

After-sale Service:: Online technical support

Project Solution Capability:: total solution for projects, Others

Application:: Apartment

Design Style:: Modern

Material:: EPS

Place of Origin:: Jiangsu, China

Brand Name:: Feininger

Model Number:: FH-P16

Name:: EPS+HIPS underfloor heating panel

Color:: Blue/Yellow/Black/Green

Grooving diameter:: 10MM

Temperature limited:: -50.C,+75.C

Water absorption:: 0.5%

Compressive strength:: ≥ 200Kpa

Thermal conductivity:: ≤ 0.023W/M.K

Fireproof grade:: B1/B2

Size:: 1370*820*25mm

Product Details

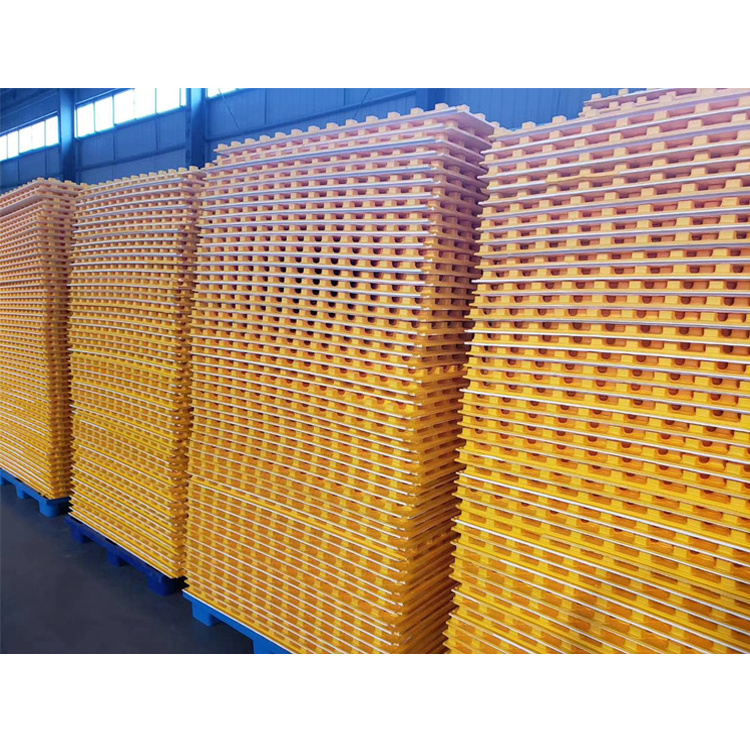

EPS+HIPS Modules

Size: 1370*820*25mm(L*W*H) Pipes diameter: suitable for 10mm,size also can be customized

Material:EPS Foam Board +HIPS Film(yellow/green/black/blue)

Temperature limited: -30.C,+80.C

Max.live load:75Kpa(7500Kg/M2)

Compressive strength:≥ 250Kpa

Thermal conductivity: ≤ 0.034W/M.K

Fireproof grade: B2/B1

CFC HCFC Free; HBCD Free; ECO Friendly

Product Installation

1.The ground must be flat and clear

2. Tape the boundary strip

3.Laying the EPS+HIPS Modules

4.Intall the pipes on the EPS+HIPS Modules

5. Pouring and laying the concrete to make the floor surface to be flat then install the wood floor or tile;Or Install the wood floor directly after the pipe

Product Parameters

Size	Pipe diameter	Brand	Material
137082025mm	10mm pipe	Feininger	PS+EPS
137082041mm	16mm pipe	Feininger	PS+EPS
137082043mm	20mm pipe	Feininger	PS+EPS
