automatic pineapple peeling and coring machine

automatic pineapple peeling and coring machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4560

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: pineapple peeler and core remover

Voltage:: 380V/50HZ

Power:: 0.75kw

Weight:: 250 KG

Dimension(L*W*H):: 1200 * 700 * 1300mm

After-sales Service Provided:: Video technical support

Name:: Pineapple Peeling Machine

Other name:: industrial pineapple peeler and core remover

Product name:: pineapple peeling and coring machine

Application:: pineapple peel and core removing machine

Related machine:: Pineapple top leave and tail cutting machine

Usage:: Pineapple processing equipment

Capacity:: 0.3~1 T/H

Machine material:: 304 Stainless Steel

Feature:: High Efficiency Easy Operate

Quick Details

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: Awisy

Type:: pineapple peeler and core remover

Voltage:: 380V/50HZ

Power:: 0.75kw

Weight:: 250 KG

Dimension(L*W*H):: 1200 * 700 * 1300mm

After-sales Service Provided:: Video technical support

Name:: Pineapple Peeling Machine

Other name:: industrial pineapple peeler and core remover

Product name:: pineapple peeling and coring machine

Application:: pineapple peel and core removing machine

Related machine:: Pineapple top leave and tail cutting machine

Usage:: Pineapple processing equipment

Capacity:: 0.3~1 T/H

Machine material:: 304 Stainless Steel

Feature:: High Efficiency Easy Operate

Product Overview

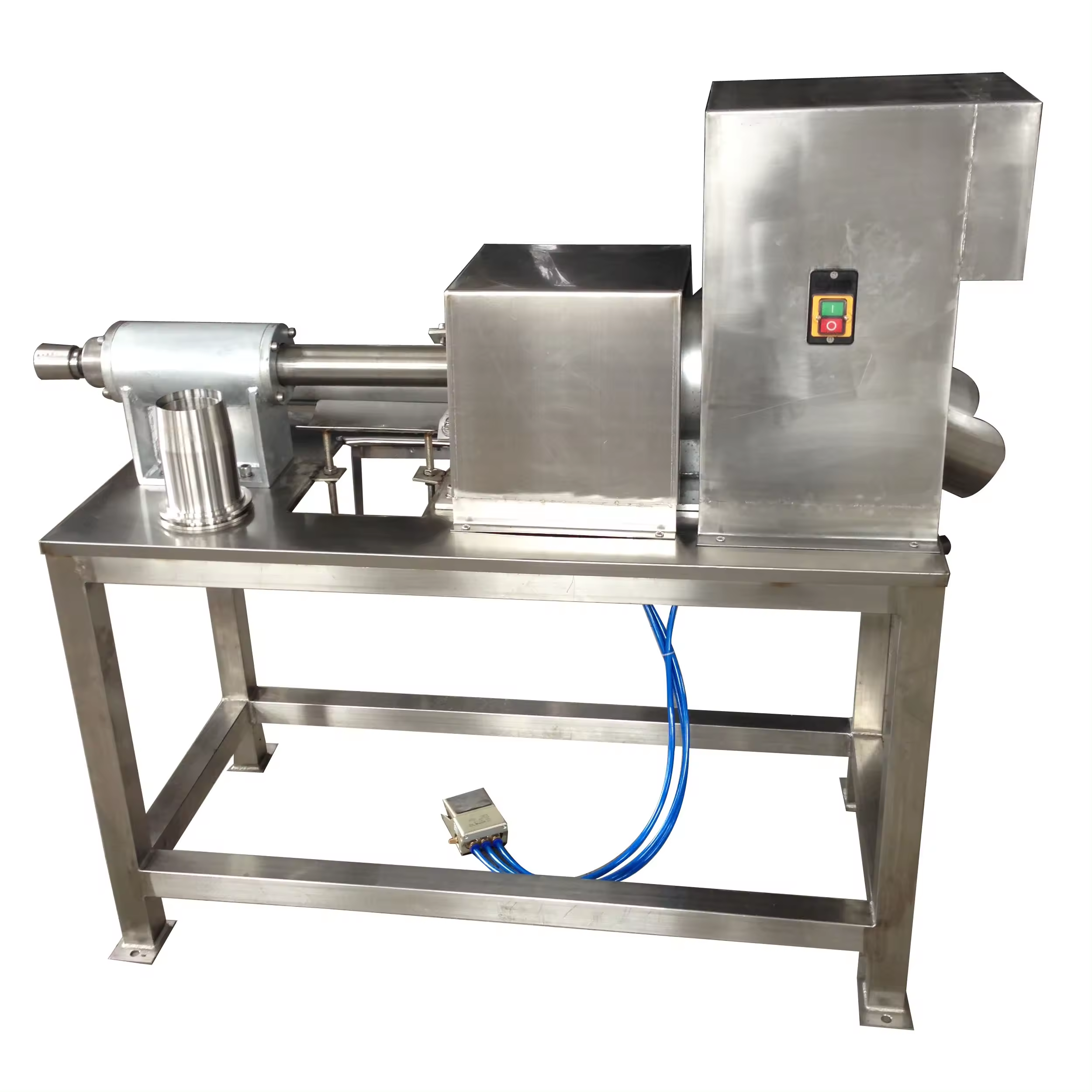

automatic pineapple peeling and coring machine

1. This equipment is a pineapple processing equipment, which is suitable for peeling and coring of pineapple. For the graded pineapple, this machine can complete two processes of peeling and core removing, so as to obtain cylindrical pineapple pulp. 2. It is applicable to c anned food production lines, fruit and vegetable processing equipment, frozen food factory equipment, leisure food factory equipment, brewery equipment.Canteens or restaurants of troops, factories, mines, schools, enterprises and institutions.

3. Equipped with air compressor: exhaust capacity 250 L / min, pressure < 0.8 MPa (provided by the user).

Working principle

Pineapples after cutting off the both ends by our top and tail cutting machine, by workers to put pineapples on the material feeding frame of this pineapple peeling and coring machine, feeding frame center height can be adjusted, by cylinder to push forward the pineapples, through special four groups peel cutting blades to cut the pineapple peel, push the pineapple into the high-speed rotating peeling blade cylinder to cutting off the pineapple peel, at the same time using the pineapple coring blade
(which inside of the material feeding rod) to remove the pineapple core, so can get the cylindrical pineapple.

If you just need to pineapple peeling not want to remove the core, can remove the coring blade which inside of the material feeding rod.

FEATURES AT A GLANCE

1. Small size, high yield.

2. S imple operation, easy maintenance .
3. Strong structure, endurable.

4. Feeding is manual.

5. Complete two processes of peeling and core removing at one time.

6. The blade can be adjusted.

7. This machine is equipped with three kinds of caliber peeler（ Φ 70 mm、 Φ 80 mm、 Φ 90 mm), please select the corresponding peeler cylinder according to the pineapple diameter and actual use needs.

8. Customized according to customer requirements.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Model	TQPJ
2	Processing Capacity	0.3~1T/H
3	Capacity	About 6-12 pcs / minute (depending on worker's operating proficiency)
4	Power	0.75KW
5	Voltage	380V/50HZ, 3phases
6	Machine weight	250kg
7	Dimension	1200 * 700 * 1300 mm
8	Peeling blades number	4

SALES AND SERVICE NETWORK
