HUASHUAITE® Xblock cast acrylic block panel is a specially developed extremely large monolithic acrylic sheet, which is highly weather resistant (30-year Clear limited manufacturer’s warranty), exceptional transparency & optical properties, excellent mechanical properties & rigidity, simple to
fabricate (cut, curve & polish). HUASHUAITE® Xblock is the ideal material solution for aquarium, swimming pool & architectural applications:
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HST-1
-
Thickness:
-
70-200mm
-
Size:
-
Width: 1050mm~ 2050mm
-
density:
-
1.2kg/CM3
-
materials:
-
acrylic
-
materials brand:
-
LUCITE
-
color:
-
any
-
certificate:
-
ISO
-
size:
-
cut size
-
surface:
-
high gloss
-
grade:
-
colorful casting acrylic Sheets
-
MOQ:
-
100KGS
-
Package:
-
PE Film Wrapping
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HST
-
Model Number:
-
HST-1
-
Thickness:
-
70-200mm
-
Size:
-
Width: 1050mm~ 2050mm
-
density:
-
1.2kg/CM3
-
materials:
-
acrylic
-
materials brand:
-
LUCITE
-
color:
-
any
-
certificate:
-
ISO
-
size:
-
cut size
-
surface:
-
high gloss
-
grade:
-
colorful casting acrylic Sheets
-
MOQ:
-
100KGS
-
Package:
-
PE Film Wrapping
Details Images
HUASHUAITE® XBLOCK

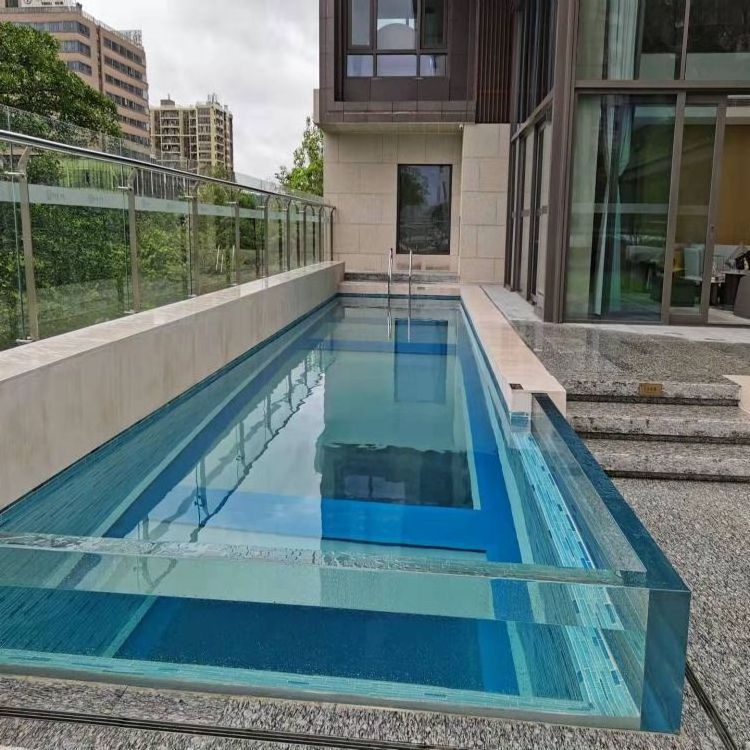

Swimming Pool Viewing Panel
Specialty Properties & Capabilities - HUASHUAITE® Xblock
Flat panels (available with saw cut & polished edges).
Curved panels (Thermoforming & bending).
Bonding (in house or on-site bonding) & Annealing.
Very high mechanical bonds & lamination, excellent cosmetic appearance.
30 Year manufacturer’s limited UV warranty against yellowing &discoloration.
Larger length capabilities: up to 9000mm length finished size, no joins.
Capabilities of up to 800mm & beyond.
Superior light transmission & optical clarity.
Strict permissible level of inclusions/defects, highest optical level.
Approx. 11 times the break resistance as opposed to glass.
Curved panels (Thermoforming & bending).
Bonding (in house or on-site bonding) & Annealing.
Very high mechanical bonds & lamination, excellent cosmetic appearance.
30 Year manufacturer’s limited UV warranty against yellowing &discoloration.
Larger length capabilities: up to 9000mm length finished size, no joins.
Capabilities of up to 800mm & beyond.
Superior light transmission & optical clarity.
Strict permissible level of inclusions/defects, highest optical level.
Approx. 11 times the break resistance as opposed to glass.
Specialty Properties & Capabilities - HUASHUAITE® Xblock
Easy to shape/thermoform into cosmetically pleasing curves.
Concept, technical design are all within our inhouse engineering capabilities.
Engineering services designed for best long term performance & appearance.
Both In-house & on-site bonding capabilities.
Excellent permanent service properties
Light weight (approx. half the weight of glass) & 100% recyclable product.
Light surface marks can be easily polished out.
Less than 1% content residual monomer, resulting from our raw material curing process .
High levels of residual monomer creates discolouration in the UV.
Concept, technical design are all within our inhouse engineering capabilities.
Engineering services designed for best long term performance & appearance.
Both In-house & on-site bonding capabilities.
Excellent permanent service properties
Light weight (approx. half the weight of glass) & 100% recyclable product.
Light surface marks can be easily polished out.
Less than 1% content residual monomer, resulting from our raw material curing process .
High levels of residual monomer creates discolouration in the UV.
Product Paramenters
|
Specification Of Thick Acrylic molds
|
|
|
|
|||
|
Raw Materials
|
100%Virgin of Lucite PMMA
|
|
|
|||
|
Thickness
|
20-300mm one time casting,300-800mm Multi-plate composite overlay
|
|
|
|||
|
Color
|
93% Transparent, Clear
|
|
|
|||
|
Size
|
Thickness
|
Size
|
Thickness
|
|||
|
1300x2500mm
|
20-70mm
|
1350x2650mm
|
20-100mm
|
|||
|
1450x2700mm
|
20-100mm
|
1600x2600mm
|
20-100mm
|
|||
|
1650x3150mm
|
20-100mm
|
2200x3200mm
|
20-110mm
|
|||
|
1650x3500mm
|
30-100mm
|
2750x4250mm
|
30-130mm
|
|||
|
1800x5000mm
|
30-150mm
|
2100x5500mm
|
30-150mm
|
|||
|
3000x6200mm
|
50-250mm
|
3000x6700mm
|
50-250mm
|
|||
|
3000x8200mm
|
80-250mm
|
3000x8700mm
|
80-250mm
|
|||
|
3000x11500mm
|
100-250mm
|
3700x8100mm
|
120-300mm
|
|||
|
Any other size can custom production or cutting by our seamless stitching or bond techniques
|
|
|
|
|||
Details Images
Product Category
FAQ
Q1. Could I get samples before place an order?
A: Yes, We always have many kinds of thickness samples on stock, you can get themfree for charge.
Q2. What about the lead time?
A: Mass production time needs 2-4 weeks according to your order quantity.
Q3. May I have your catalog and price list?
A: Of course, Please have a detailed looking and choose the interested models in our site. Then contact us, we can offer your details as your request.
Q4. What’s your advantage?
A: (1) 20 years Production experience
(2) High quality with competitive price
(3) 10 years quality guaranteed
(4) Fast response and professional suggestion on all inquiries
(5)Welcome customized sizes
(6) Certified by ISO
Q5. What happens if my products are damaged?
A: If the products are damaged during transportation from China to your destination,
please take pictures and send the details to us, we will take full responsibility. .
please take pictures and send the details to us, we will take full responsibility. .
