4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches
4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches

4*1000Mbps Port 2*1000Mbps Sfp Uplinks Poe Switch Industrial Ethernet Switch For Ip Camera & Wireless Ap Internet Switches

FOB Reference Price: Get Latest Price
≥2 Pieces
US $29
≥300 Pieces
US $27
≥2000 Pieces
US $26
≥5000 Pieces
US $25
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
OEM
Model Number:
SD2F4T-SFP, SD2F4T-POE, SD2F4T-SFP/POE/Power Adapter
Place of Origin:
Shenzhen
Product Name:
Gigabit Industrial Switches
Uplink Port Interfaces:
2 x 10/100/1000Base-X SFP
Network Port Interfaces:
4 x 10/100/1000Base-T
Power Connector:
3P Phoenix Terminal
Input Voltage:
DC10-55V/AC 100-240V 50-60HZ
POE support (optional):
802.3af, 802.3at
IP Rating:
IP40
Installation Method:
Rail Mounting
Size:
130 x 94 x 35mm
Weight:
Approx 0.75kg

Quick Details

Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
14G
Brand Name:
OEM
Model Number:
SD2F4T-SFP, SD2F4T-POE, SD2F4T-SFP/POE/Power Adapter
Place of Origin:
Shenzhen
Product Name:
Gigabit Industrial Switches
Uplink Port Interfaces:
2 x 10/100/1000Base-X SFP
Network Port Interfaces:
4 x 10/100/1000Base-T
Power Connector:
3P Phoenix Terminal
Input Voltage:
DC10-55V/AC 100-240V 50-60HZ
POE support (optional):
802.3af, 802.3at
IP Rating:
IP40
Installation Method:
Rail Mounting
Size:
130 x 94 x 35mm
Weight:
Approx 0.75kg

About order

For Ready to Ship Order: 1. The default price does not support SFP, POE and does not provide a power adapter . If you want to support it, please contact customer service. 2. We have unmanaged and managed industrial switches, please refer to the selection table below. 3. If you have any question about our company or products, please feel free to contact us.
Recommend Products
Product Description

General Description

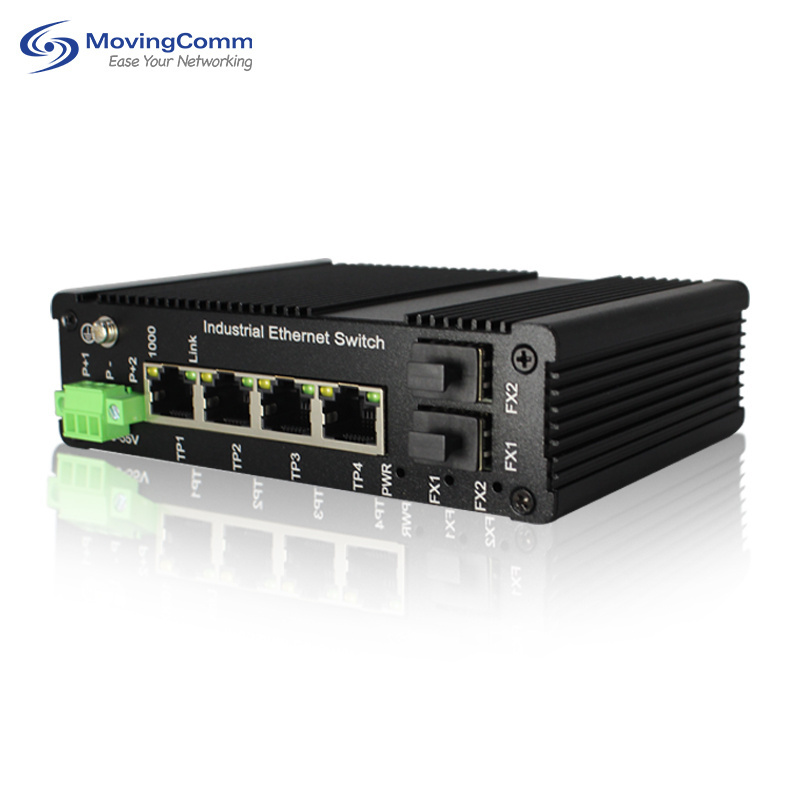

The SD2F4T-SFP /SD2F4T-SFP-POE family model is an unmanaged 4-Port Gigabit and 2 x Gigabit SFP Optical port industrial-grade Ethernet switch. It features support for 4 x 10/100/1000Base-T adaptive RJ45 ports, with the optional POE feature available. The SD2F4T-SFP/SD2F4T-SFP-POE family model products are designed with a focus on industrial standards, including materials and product design. The enclosure is crafted from aluminum alloy, ensuring superior heat dissipation for efficient performance. The fanless heat dissipation circuit design allows for a wide range of working temperatures, while also providing a high level of protection. These technologies contribute to the exceptional industrial-grade quality of the products, making them resistant to both high and low temperatures and offering protection against lightning and other potential hazards. Additionally, the products feature industrial-grade three-level ESD protection, making them suitable for various applications, such as intelligent transportation, outdoor monitoring, industrial networks, and deployments in smart cities and other challenging environments.
Specification
INTERFACE
Uplink Port Interfaces
2 x 1000Base-X SFP
Network Port Interfaces
4 x 10/100/1000Base-T
Power Connector
3P Phoenix Terminal, Dual Power Supply Redundancy
LED lights
Power indicator: PWR (Green); Optical: FX (Green)
Network Port Indicator: Yellow (1000 or PoE) Green (Link)
CABLE TYPE AND DISTANCE
Twisted pair
0-100m (CAT5e, CAT6)
Single-mode fiber
20/40/60/80/100/120KM
Multimode fiber
550m/2KM
Fiber interface
LC/SC
Network Topology Mode
Star topology
Support
Bus topology
Support
Tree topology
Support
ELECTRICAL CHARACTERISTICS
Input Voltage
DC10-55V/AC 100-240V 50-60HZ
Power Consumption
Non-PoE Total Power <5W,
With PoE < 60W (Full Load)
POE SUPPORT (OPTIONAL POE FEATURE)
PoE Port
1-4
PoE Protocol
802.3af, 802.3at
PoE Pinout
1,2,3,6
PoE Management Mode
Not Supported
LAYER 2 SWITCHING
Swap Capacity
14G
Packet Forwarding Rate
8.94Mpps
MAC Address Table
8K
VLAN Support and Number
Supports 4096 VLAN ID
Report Buffer
1M
Forwarding Delay
<10us
Port Characteristics
Cross-Direct Adaptative
Flow Control
Support
Jumbo Frames
Support 10Kbytes
Storm Suppression
Support
PROTECTION
IP Rating
IP40
Power Surge Protection
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
Network Port Surge Protection
IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
Radiated Immunity
IEC 61000-4-3 Level 3 (10V/m)
Instantaneous Pulse Immunity
IEC 61000-4-4 Level 3 (1V/2V)
Conduction Immunity
IEC 61000-4-6 Level 3 (10V/m)
Power Supply Frequency Magnetic Field Immunity
IEC 61000-4-8 Level4 (30A/m)
Voltage Drop
IEC 61000-4-11 Level3 (10V)
EMI
Class A
Electrostatic Discharge (ESD) Immunity
IEC61000-4-2 Level4 (15KV/30KV)
Free Fall
0.5m
ENVIRONMENTAL CONDITIONS
Operating Temperature
-40℃ ~ +85℃
Storage/Transport Temperature
-40℃ ~ +85℃
Relative Humidity
5%~95% (non-condensing)
Heat Dissipation Method
Fanless Enclosure Dissipates Heat
MTBF
100,000 Hours
MECHANICAL STRUCTURE
Size
130 x 94 x 35mm
Installation Method
Rail Mounting
Housing Material
Industrial Aluminum Shell
Weight
0.75kg
