Timed Electric Auto Drain Valves

FOB Reference Price: Get Latest Price

≥1 Pieces

US $34

≥100 Pieces

US $27

≥200 Pieces

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 0.6kg

Interval Time:: 0.5 -45 minutes

Discharge Time:: 0.5 -10 seconds

Manual Test Switch:: Yes

Supply Voltage:: 24V~240V± 10% 50/60Hz

Current Consumption:: Max. 4mA

Operating Temperature:: -40 ℃~ +50 ℃

Indicators:: Left Yellow,valve open Right Yellow,valve closed

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: SUNWIN

Product name:: JORC Ultra High Pressure 40 bar electronic Auto drainer

Weight:: 0.6kg

Interval Time:: 0.5 -45 minutes

Discharge Time:: 0.5 -10 seconds

Manual Test Switch:: Yes

Supply Voltage:: 24V~240V± 10% 50/60Hz

Current Consumption:: Max. 4mA

Operating Temperature:: -40 ℃~ +50 ℃

Indicators:: Left Yellow,valve open Right Yellow,valve closed

Product Description

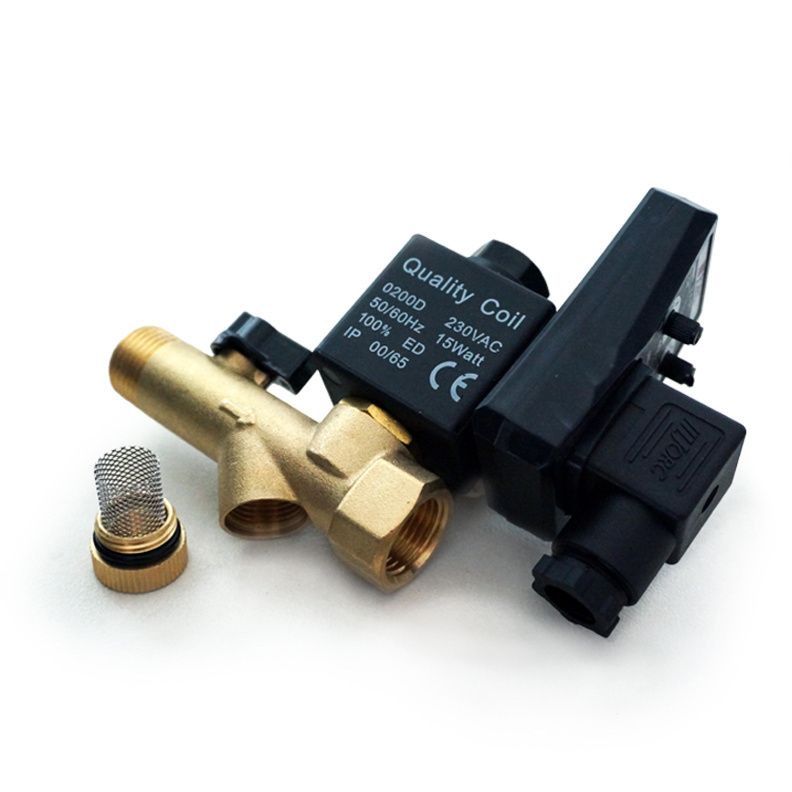

JORC Ultra High Pressure 40 bar electronic Auto drainer with Solenoid valve Timer

The timer controlled condensate drain combines an adjustable electronic timer controlled drain, a ball valve and a mesh strainer into one compact easy to install package. Suitable for any flow range and pressure up to 230 PSI, the drainer is perfect for virtually any compressed air application, especially those with solid particulate contaminants.

With a test button, LED on/off indication and a full serviceable direct acting valve, the drainer offers affordable, reliable
condensate management without the need to install additional valves and strainers. Use it on any compressor, receiver, filter or refrigerated dryer. The saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out.

The 115VAC version of this drain is supplied with a 6 ft. power cord with plug and the 230VAC version is supplied with a 7 ft. power cord.

MAXIMUM COMPRESSOR CAPACITY:Any size

PRESSURE RANGE: 0 - 230 PSI (higher pressure available)

SUPPLY VOLTAGE OPTIONS: 12 - 380 VAC/DC 50/60Hz. (please indicate)

MEDIUM TEMPERATURE :34 - 131 °F

AMBIENT TEMPERATURE: 34 - 131 °F

TIMER CYCLE RANGE (ON / OFF): 0.5 - 10 seconds / 0.5 - 45 minutes

TIMER PCB: SMD technology, ensuring consistency in production

TIMER CYCLE INDICATION Bright LED illumination

TEST FEATURE: Yes

VALVE TYPE: 2/2 way, direct acting

SERVICEABLE VALVE Yes

VALVE HOUSING MATERIAL Brass (stainless steel available, see OPTIMUM)

POWER CONNECTION DIN 43650-A

ENVIRONMENTAL PROTECTION NEMA4 (IP65)

CALIFORNIA PROPOSITION 65 See manual

Machine Parts

Integrated mesh strainer, offering valve and orifice protection from larger particles found in condensate.
