Quick Details
-
Model Number:
-
AR007
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
USB audio interface
-
Maximum Input Level:
-
+17 dBu at minimum gain input
-
Minimum Input Level:
-
-34 dBu at maximum gain
-
Phantom power:
-
Red LED
-
Color:
-
Red, Grey
-
Dimensions:
-
175 mm x120mm x 476mm
-
Interface 1:
-
combination XLR/6.35 mm jack
-
Interface 2:
-
Instrument/Line input
-
Interface 3:
-
headphone output
-
Interface 4:
-
line output(LEFT and RIGHT)
Quick Details
-
Type:
-
External
-
Channels:
-
2
-
Brand Name:
-
OEM
-
Model Number:
-
AR007
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
USB audio interface
-
Maximum Input Level:
-
+17 dBu at minimum gain input
-
Minimum Input Level:
-
-34 dBu at maximum gain
-
Phantom power:
-
Red LED
-
Color:
-
Red, Grey
-
Dimensions:
-
175 mm x120mm x 476mm
-
Interface 1:
-
combination XLR/6.35 mm jack
-
Interface 2:
-
Instrument/Line input
-
Interface 3:
-
headphone output
-
Interface 4:
-
line output(LEFT and RIGHT)
usb audio interface midi recording digital professional package pc live interface de audio studio set m audio sound card
|
Model |
AR001B usb audio interface |
| Interface Type | usb |
| Channels | 2 |
| Sample rates | DAC: 32 kHz, 44.1 kHz, 48 kHz ADC:8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz, 96kHz, 192kHz |
| Dynamic Range | 105dB (A-weighted) |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| USB interface | USB Type-C (USB 2.0) |
| 3-pin XLR | 48 V phantom power support |
| Support Programs | Protools/Logic/Cubase/Reaper/Reason/Ableton Live/FL Studio/Studio One/GarageBand/Audacity, Audition |
| Dimensions |
175 mm x 120mm x 47mm |

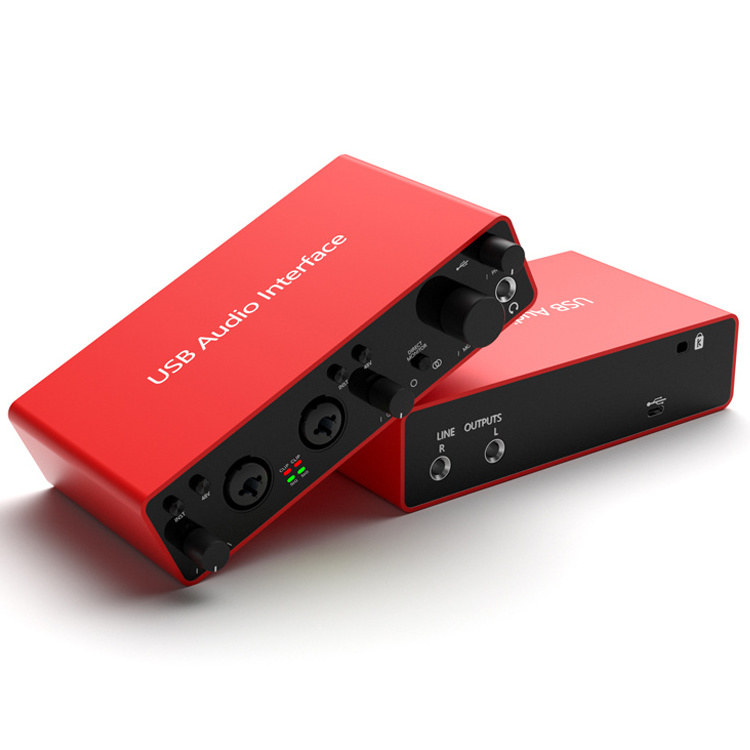

2-IN, 2-OUT USB AUDIO INTERFACE
The hardware interface provides the means for connecting a microphone and an instrument or line level audio signal to a computer running Mac OS or Windows.
- USB EXTERNAL SOUND CARD
USB external sound card has all connection interfaces such as microphone, electric guitar, bass, etc. This includes +48V phantom power for condenser microphones, delivering studio-quality audio up to 24-bit/96kHz, maintaining sound purity and clarity.
- NO DELAY
The digital audio interface has left and right sound channels, XLR port (microphone) input for left sound channel, 6.35mm port(guitar and keyboard instrument) input for right sound channel.Using the aduio interface,you can get completely delay-free sound in real time, providing you with a better recording experience.
- TRS BALANCEDT&SUITAB FOR ALMOST PC
The mixer audio interface provides high quality audio output without buzzing or interference.Don't need external power supply,plug and play,suitable for almost all Mac and Windows recording software.
The hardware interface provides the means for connecting a microphone and an instrument or line level audio signal to a computer running Mac OS or Windows.
- USB EXTERNAL SOUND CARD
USB external sound card has all connection interfaces such as microphone, electric guitar, bass, etc. This includes +48V phantom power for condenser microphones, delivering studio-quality audio up to 24-bit/96kHz, maintaining sound purity and clarity.
- NO DELAY
The digital audio interface has left and right sound channels, XLR port (microphone) input for left sound channel, 6.35mm port(guitar and keyboard instrument) input for right sound channel.Using the aduio interface,you can get completely delay-free sound in real time, providing you with a better recording experience.
- TRS BALANCEDT&SUITAB FOR ALMOST PC
The mixer audio interface provides high quality audio output without buzzing or interference.Don't need external power supply,plug and play,suitable for almost all Mac and Windows recording software.
