Quick Details
-
Brand Name:
-
OKEY
-
Model Number:
-
MDR-60-5
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
10A
-
Product Name:
-
DIN Rail Single output switching power supply
-
Brand:
-
OKEY
-
Type:
-
Constant Voltage
-
Efficiency:
-
78%
-
Rated Power:
-
60W
-
Dimension:
-
40*90*100mm(L*W*H)
-
Packing:
-
42pcs/carton/14.8kg/0.82CUFT
-
Weight:
-
0.33kg
-
Protections:
-
Short circuit/ Over load/ Over voltage
-
Warranty:
-
2 Years
Quick Details
-
Input Voltage:
-
85-264VAC/120-370VDC
-
Output Voltage:
-
5VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OKEY
-
Model Number:
-
MDR-60-5
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
10A
-
Product Name:
-
DIN Rail Single output switching power supply
-
Brand:
-
OKEY
-
Type:
-
Constant Voltage
-
Efficiency:
-
78%
-
Rated Power:
-
60W
-
Dimension:
-
40*90*100mm(L*W*H)
-
Packing:
-
42pcs/carton/14.8kg/0.82CUFT
-
Weight:
-
0.33kg
-
Protections:
-
Short circuit/ Over load/ Over voltage
-
Warranty:
-
2 Years
Product Description
Specification
|
SPECIFICATIONS
|
|
|
|
|
||||
|
Model
|
MDR-60-5
|
MDR-60-12
|
MDR-60-24
|
MDR-60-48
|
||||
|
DC Voltage
|
5V
|
12V
|
24V
|
48V
|
||||
|
Rated Current
|
10A
|
5A
|
2.5A
|
1.25A
|
||||
|
Current Range
|
0-10A
|
0-5A
|
0-2.5A
|
0-1.25A
|
||||
|
Rated Power
|
50W
|
60W
|
60W
|
60W
|
||||
|
Ripple & Noise
|
80mVp-p
|
120mVp-p
|
150mVp-p
|
200mVp-p
|
||||
|
Voltage Tolerance
|
±2%
|
±1%
|
±1%
|
±1%
|
||||
|
Line regulation
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
||||
|
Load regulation
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
||||
|
Setup, Rise Time
|
500ms,30ms/230VAC 200ms,30ms/115VAC at full load
|
|
|
|
||||
|
Voltage Range
|
85~264VAC 47~63Hz; 120~370VDC
|
|
|
|
||||
|
AC Current
|
1.8A/115VAC 1A/ 230VAC
|
|
|
|
||||
|
Efficiency
|
78%
|
86%
|
88%
|
87%
|
||||
|
Inrush Current
|
Cold start 30A/115VAC 60A/230VAC
|
|
|
|
||||
|
Leakage Current
|
<1mA/240VAC
|
|
|
|
||||
|
Over Load
|
105%~150% rated output power
|
|
|
|
||||
|
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed
|
|
|
|
||||
|
Over Voltage
|
6.25-7.25V
|
15.6-18V
|
31.2-36V
|
57.6-64.8V
|
||||
|
|
Protection type: Shut down o/p voltage, re-power on to recover
|
|
|
|
||||
|
Working Temp., Humidity
|
-20℃~+70℃; 20%~90% RH non-condensing
|
|
|
|
||||
|
Storage Temp., Humidity
|
-40℃~+85℃; 10%~95%RH
|
|
|
|
||||
|
Temp. Coefficient
|
±0.03%/℃(0~50℃)
|
|
|
|
||||
|
Vibration
|
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
|
|
|
|
||||
|
Safety Standard
|
Design refer to UL508, UL60950-1,TUV EN60950-1,EN50178
|
|
|
|
||||
|
EMC Standard
|
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2，EN61204-3, heavy industry level,
criteria A |
|
|
|
||||
|
Dimension
|
40*90*100mm(W*H*D)
|
|
|
|
||||
|
Weight
|
0.33Kg
|
|
|
|
||||
|
Packing
|
42pcs/carton/14.8kg/0.82CUFT
|
|
|
|
||||
|
Warranty
|
2 years
|
|
|
|
||||

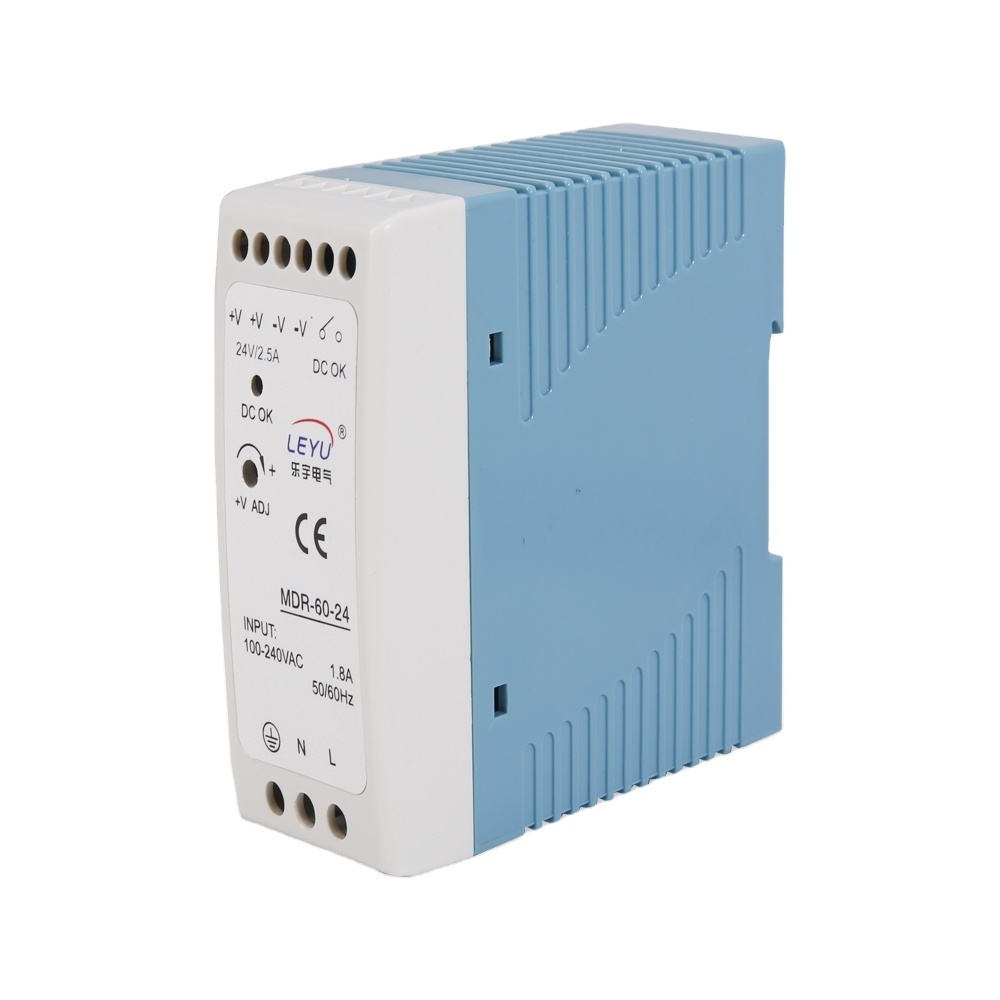

Details Images
