Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ETEK
-
Model Number:
-

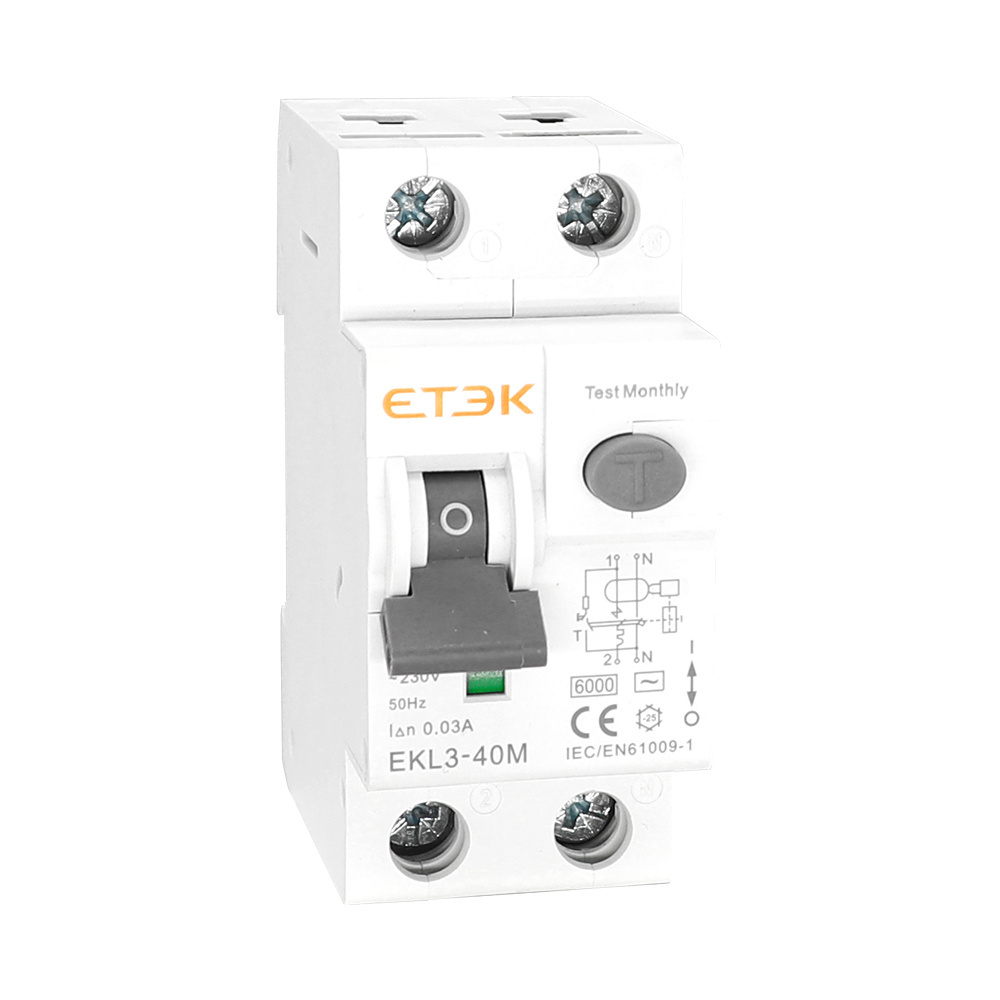

EKL3-40M
-
Rated Frequency (Hz):
-
50/60Hz
-
Number of Pole:
-
2
-
Model:
-
Electromagnetic
-
Poles:
-
1P+N
-
Electrical life:
-
4,000 Cycles
-
Mechanical life:
-
10,000 Cycles
-
Contact position indicator:
-
Yes
-
Protection degree:
-
IP 20
-
Warranty:
-
3 Years
-
Product name:
-
RCBO RCCB with Overcurrent Protuction
Quick Details
-
Breaking Capacity:
-
6KA
-
Rated Voltage:
-
230/240V~
-
Rated Current:
-
25A, 6,8,10,13,16,20,25,32,40A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ETEK
-
Model Number:
-
EKL3-40M
-
Rated Frequency (Hz):
-
50/60Hz
-
Number of Pole:
-
2
-
Model:
-
Electromagnetic
-
Poles:
-
1P+N
-
Electrical life:
-
4,000 Cycles
-
Mechanical life:
-
10,000 Cycles
-
Contact position indicator:
-
Yes
-
Protection degree:
-
IP 20
-
Warranty:
-
3 Years
-
Product name:
-
RCBO RCCB with Overcurrent Protuction
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
ETEK
|
|
Model Number
|
EKL3-40M
|
|
Mode
|
Electromagnetic
|
|
Type
|
AC,A
|
|
Rated current In
|
6,8,10,13,16,20,25,32,40A
|
|
Poles
|
1P+N
|
|
Rated voltage Ue
|
230/240V~
|
|
Rated sensitivity I△n
|
30,100,300mA
|
|
Break time under IΔn
|
≤0.1s
|
|
Energy limiting class
|
3
|
|
Rated breaking capacity
|
6,000A
|
|
Insulation voltage Ui
|
500V
|
|
Rated impulse withstandvoltage(1.5/50) Uimp
|
4,000V
|
|
Dielectric test voltage at ind. Freq. for 1 min
|
2kV
|
|
Pollution degree
|
2
|
|
Thermo-magnetic release characteristic
|
B,C
|
|
Electrical Life
|
4,000 Cycles
|
|
Mechanical life
|
10,000 Cycles
|
|
Contact position indicator
|
Yes
|
|
Protection degree
|
IP20
|
|
Reference temperature for setting of thermal element
|
30ºC
|
|
Ambient temperature(with daily average≤35℃）
|
-5℃~+40℃
|
|
Storage temperature
|
-25℃~+70℃
|
|
Terminal connection type
|
Cable/Pin-type busbar/U-type busbar
|
|
Terminal size top/bottom for cable
|
25m㎡ 18-3AWG
|
|
Terminal size top/bottom for busbar
|
25m㎡ 18-3AWG
|
|
Tightening torque
|
2.5Nm 22In-Ibs
|
|
Mounting
|
On DIN rail EN60715(35mm) by means of fast clip device
|
|
Connection
|
From top and bottom
|
|
Auxiliary contact
|
EKM1-OF
|
|
Alarm contact
|
EKM1-FB
|
|
Shunt release
|
EKM1-MX
|
Packing & Delivery
ETEK gift box ,blank box ,Customized gift box
