Quick Details
-
Bottle Volume(ml):
-
3000 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hongle
-
Year:
-
this year
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1450x590x1650mm
-
Hollow part volume:
-
0-3L
-
Clamping Force (kN):
-
90
-
Power (kW):
-
0.1
-
Weight (KG):
-
200 KG
-
Max .Volumn Of Product:
-
0.1-3L
-
Capacity:
-
800-1000PCS/H
-
Neck Size Of Product:
-
75mm
-
Useful Area Of Mould Plate:
-
340x350mm
-
Max. Mould Thickness:
-
200mm
-
Min. Mould Thickness:
-
120mm
-
Keywords:
-
Juce Bottle Making Machine
-
Mould Stroke:
-
170mm
-
Clamping Force:
-
90KN
-
Stretching Stroke:
-
380mm
-
Production Capacity (BPH):
-
1000
-
After-sales Service Provided:
-
Video technical support, Online support
-
Local Service Location:
-
United States, Philippines, Kazakhstan, Uzbekistan
-
After Warranty Service:
-
Video technical support, Online support
-
Certification:
-
CE,ISO
Quick Details
-
Neck Diameter(mm):
-
50 mm
-
Max.Bottle Diameter(mm):
-
75 mm
-
Max.Bottle Height(mm):
-
380 mm
-
Bottle Volume(ml):
-
3000 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hongle
-
Year:
-
this year
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1450x590x1650mm
-
Hollow part volume:
-
0-3L
-
Clamping Force (kN):
-
90
-
Power (kW):
-
0.1
-
Weight (KG):
-
200 KG
-
Max .Volumn Of Product:
-
0.1-3L
-
Capacity:
-
800-1000PCS/H
-
Neck Size Of Product:
-
75mm
-
Useful Area Of Mould Plate:
-
340x350mm
-
Max. Mould Thickness:
-
200mm
-
Min. Mould Thickness:
-
120mm
-
Keywords:
-
Juce Bottle Making Machine
-
Mould Stroke:
-
170mm
-
Clamping Force:
-
90KN
-
Stretching Stroke:
-
380mm
-
Production Capacity (BPH):
-
1000
-
After-sales Service Provided:
-
Video technical support, Online support
-
Local Service Location:
-
United States, Philippines, Kazakhstan, Uzbekistan
-
After Warranty Service:
-
Video technical support, Online support
-
Certification:
-
CE,ISO
Product Description
Feature ：

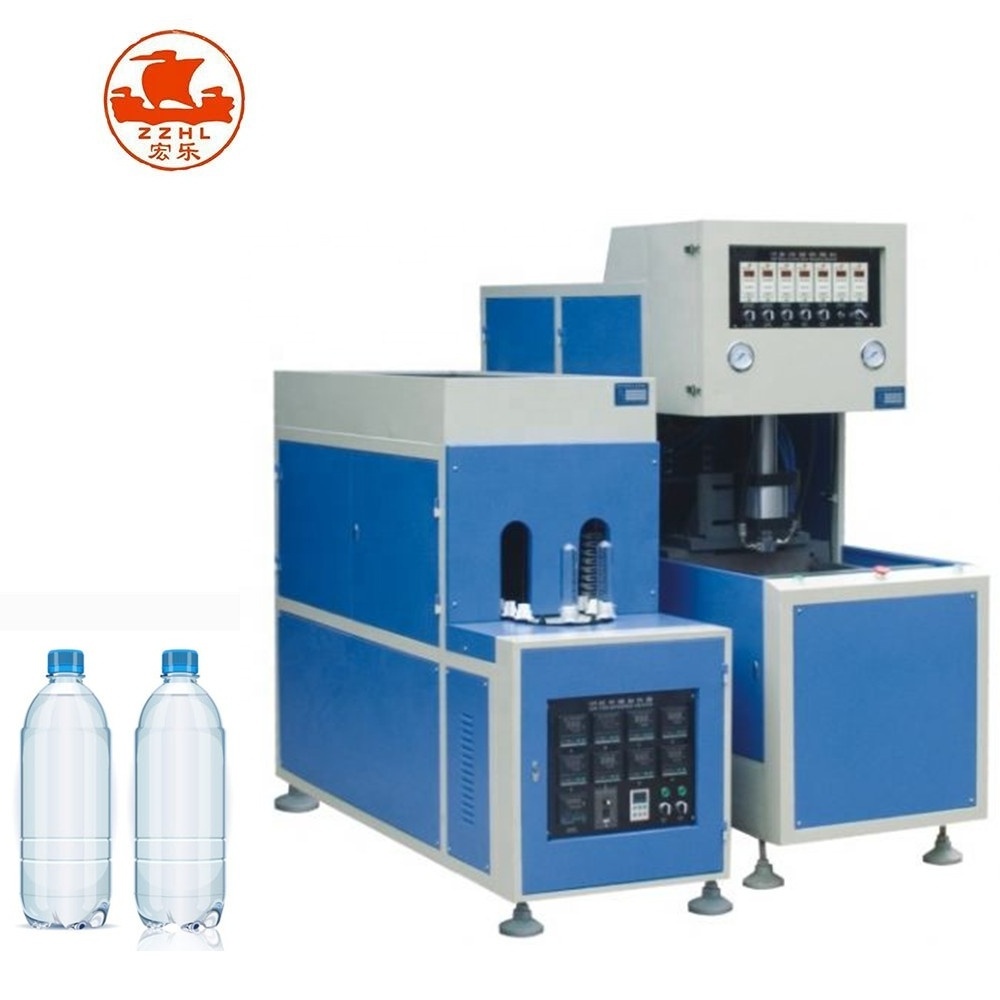

semi-automatic blowing machine is mainly used to expertise within 2L mineral water,
beverages, oil, cosmetics, pesticides, civil bottles (PET, PP, PMMA, PC, PS as raw material) and other plastic containers with a
small size, consumption electric province, operation and easy maintenance and so on.
Technical Parameters :
Please tell me your bottle size and capacity request ,then we can recommend suitable machine for you .we can customize the machine according to your product requirements.
|
Item
|
unit
|
TECH,DATA
|
|
Max .Volume Of Product
|
L
|
0.1-3
|
|
Capacity
|
pcs/h
|
800-1000
|
|
Neck Size Of Product
|
mm
|
<75
|
|
Useful Area Of Mould Plate
|
mm
|
340x350
|
|
Max. Mould Thickness
|
mm
|
200
|
|
Min. Mould Thickness
|
mm
|
120
|
|
Mould Stroke
|
mm
|
170
|
|
Clamping Force
|
kn
|
90
|
|
Stretching Stroke
|
mm
|
380
|
|
Working Pressure
|
mpa
|
≤1.0
|
|
Blowing Air pressure
|
mpa
|
≤3.0
|
|
Power Of Main Blower
|
kw
|
0.1
|
|
Power Of Preheater
|
kw
|
14
|
|
Weight Of Main Blower
|
kgs
|
580
|
|
Weight Of Preheater
|
kgs
|
200
|
|
Measurement Of Main Blower
|
mm
|
1450*590*1650
|
|
Measurement Of Preheater
|
mm
|
1750*580*1350
|
|
|
List of machines that must be matched
|
|
Product name
|
Quantity
|
|
1.mainframe and Infrared drying oven
|
1set
|
|
2.Refrigeration dryer (3m³)
|
1set
|
|
3.high pressure air compressor 1.2/30
|
1set
|
|
4.Air filter 1.0/30
|
2PCS
|
|
5.water chiller
|
1set
|
|
6.Blowing mould
|
1set
|
Related Products
*If you can not open the links above on Alibaba APP on mobile phone, please use IE browser to visit our website: https://chinafoodmachine.en.alibaba.com
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
