Quick Details
-
power phase number:
-
Single Phase 3 Phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOVO
-
Model Number:
-
SD600-4T-15GC-SCT
-
Warranty:
-
18Months, 18 Months
-
Type:
-
ECONOMIC
-
Size:
-
372*250*270mm
-
Color:
-
Black
-
Application:
-
textiles,papermaking,food,machine tool
-
Control mode:
-
VF/FVC/SVC
-
Certificate:
-
CE/ISO9001
-
Protection:
-
Overload Short Circuit protection
-
Display:
-
LED, LCD optional
-
Rated power:
-
7.5KW
-
Condition:
-
100% Original
-
Quality:
-
High-quality
-
Certification:
-
CE
Quick Details
-
Control Mode:
-
V/F SVC FVC
-
Rated Power:
-
7.5KW
-
Nominal Voltage:
-
220Vac input to 380Vac output
-
power phase number:
-
Single Phase 3 Phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOVO
-
Model Number:
-
SD600-4T-15GC-SCT
-
Warranty:
-
18Months, 18 Months
-
Type:
-
ECONOMIC
-
Size:
-
372*250*270mm
-
Color:
-
Black
-
Application:
-
textiles,papermaking,food,machine tool
-
Control mode:
-
VF/FVC/SVC
-
Certificate:
-
CE/ISO9001
-
Protection:
-
Overload Short Circuit protection
-
Display:
-
LED, LCD optional
-
Rated power:
-
7.5KW
-
Condition:
-
100% Original
-
Quality:
-
High-quality
-
Certification:
-
CE
Product Overview

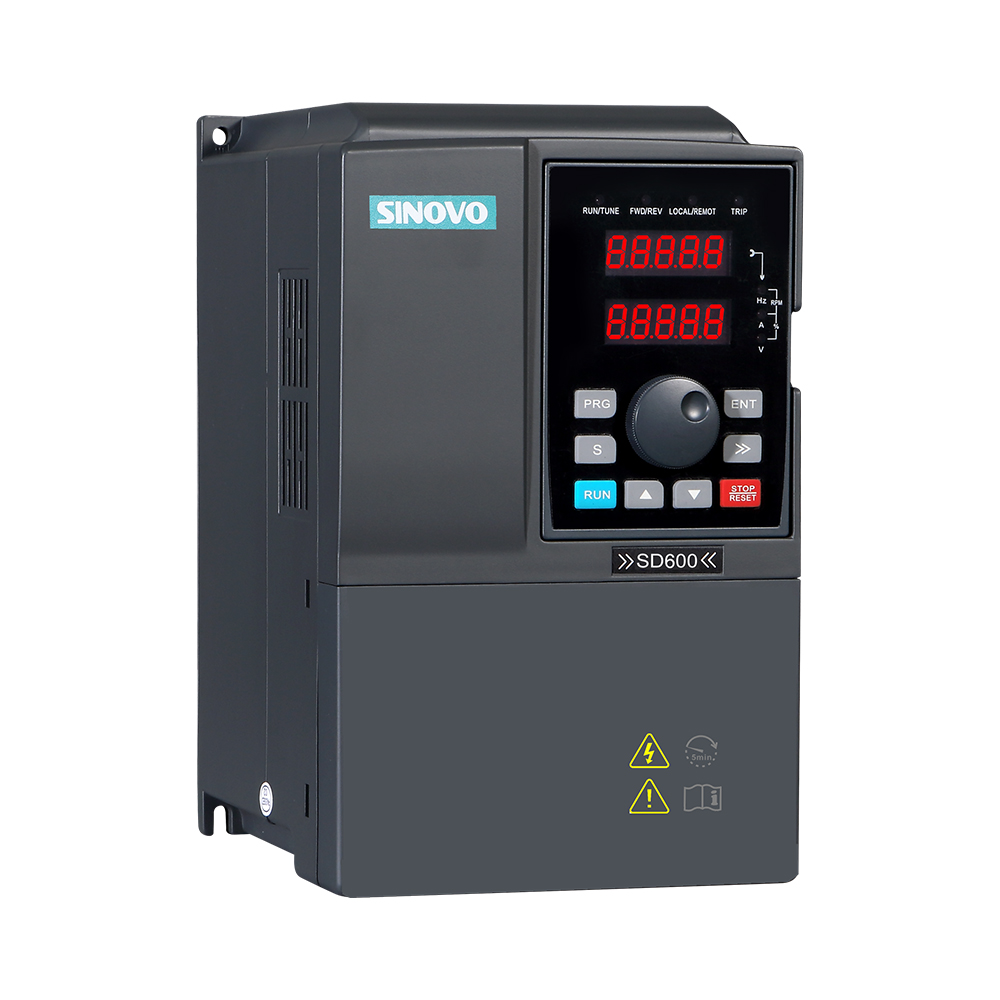

SINOVO Input 220V 1 Phase Output 380V 3 Phase 7.5kw Variable Frequency Inverter from Shenzhen China VFD
SD600 series inverter is a general high-performance frequency inverter, it is mainly used for controlling and regulating speed and torque of the three-phase AC asynchronous motor; SINOVO company, is a new generation of frequency inverter technology upgrades, SD600 adopt high-performance current control technology, high torque output at low frequency, the overload capacity is strong, has a good stability and dynamic performance, have a variety of communication bus function, support for multiple PG card, rich powerful, stable performance; With perfect anti tripping control and the ability to adapt to bad power grid, can be widely used in textile, papermaking, wire drawing, machine tools, packaging, food, fans, pumps and all kinds of automatic production equipment driver change.
FEATURES AT A GLANCE
Specifications
1. Maximum output frequency: 0~600Hz;
2. Carrier frequency: 1.0kHz~12kHz；According to the load characteristics, carrier frequency can be adjusted automatically;
3. Control mode: V/F
4． Speed range: 1：50（SVC）; 1Hz/150% rated torque;
5． Overload capability: G type：150% rated current for 60s; P type：110% rated current for 60s;
6． Jog control: Jog frequency range:0.00Hz to 50.00Hz;
7． DC brake: DC brake frequency : 0.0Hz to Maximum frequency ;brake time : 0.0 to 36.0s;
8． Brake current value : 0.0 to 100%;
9． Simple PLC, Multi-speed: 16-speed operating through built-in PLC or control terminal.
